Help CenterDDK DIP Male Centronic 24 Way Connector Right Angle PCB Mount Plug Type
Related Products
-
24P Champ Centronic Male Plug Socket Connector PCB Mounting 90 DegreeUS$ 0.5 - 2MOQ: 1000 Pieces -
Centronic 24 Pin Male Plug Champ Connector DDK DIP Right Angle PCB HeaderUS$ 0.5 - 2MOQ: 1000 Pieces
-
0.085in Pitch Centronic Connector 24 Pin Right Angle PCB Mount Male Plug HeaderUS$ 0.5 - 2MOQ: 1000 Pieces
-
Champ PCB Mounting Amphenol Right Angle Solder DIP 24 Way Connector 2.16mm Pitch Female SocketUS$ 0.5 - 2MOQ: 1000 Pieces
-
DDK DIP Female Receptacle Type PCB Mount Right Angle Amphenol Connector 24 Pin 2.16mm PitchUS$ 0.5 - 2MOQ: 1000 Pieces
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Male
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
3) Order Information
4)Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |

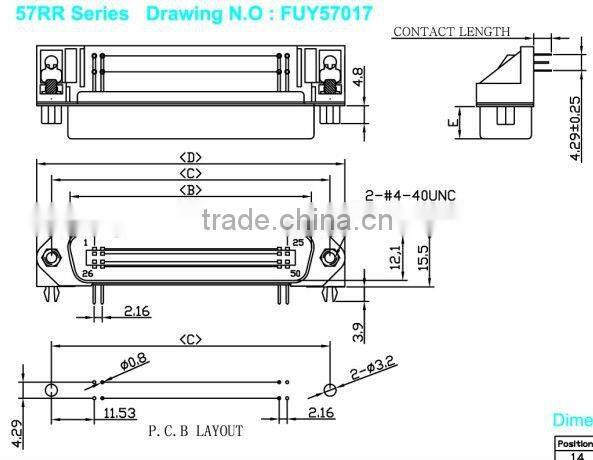

5) Technology Parameters
5) Delivery of time
1. Sample :5-7 workdays
3. Commodity :7-15 workdays
