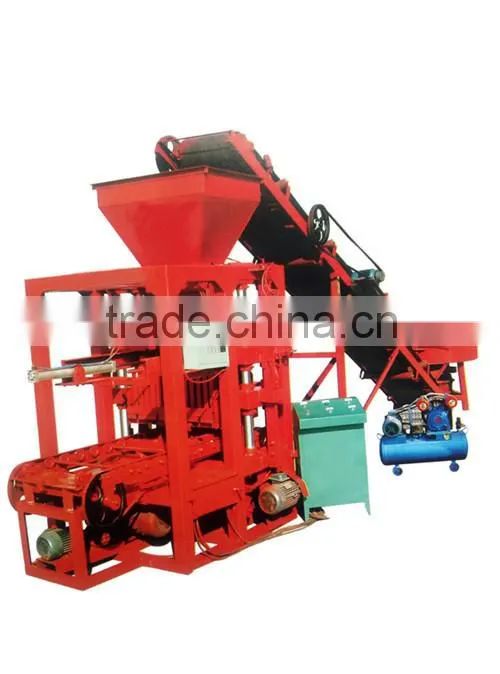

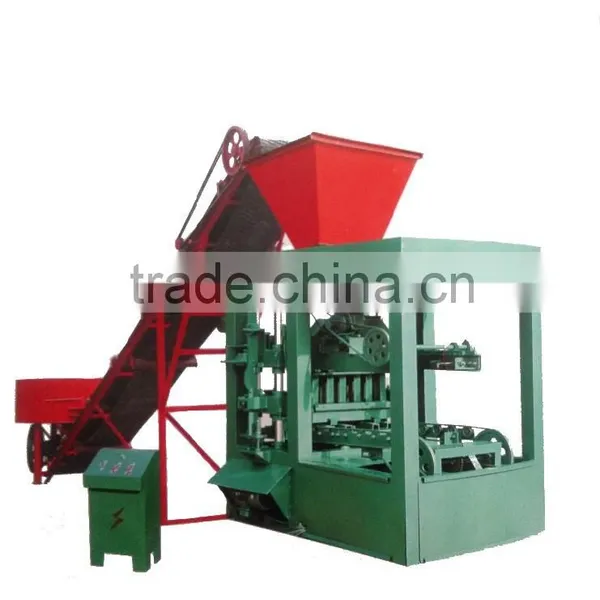

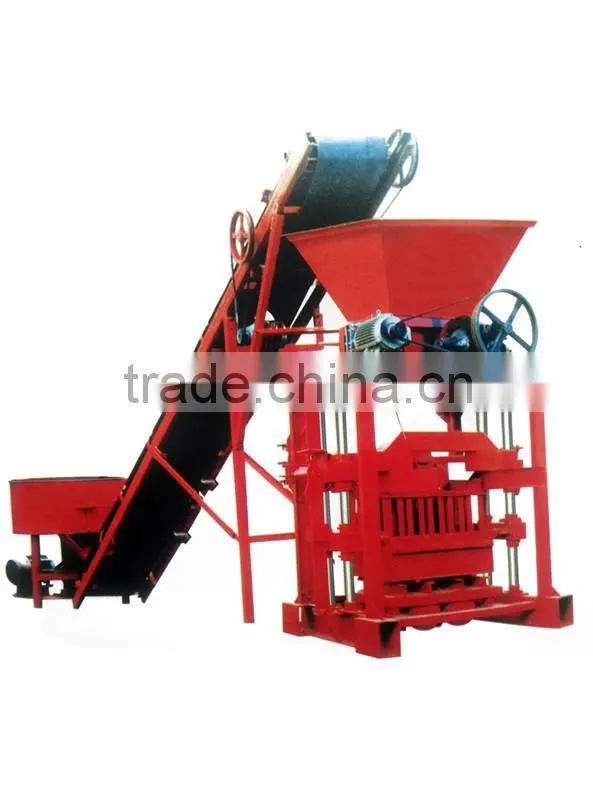

Help CenterConcrete Block Machine QTJ4-35B Semi-automatic Small Cement Block Making Machine
Related Products
-
Concrete Block Machine QTJ4-26C Semi-automatic Small Cement Block Making MachineUS$ 3,500 - 5,500MOQ: 1 Unit -
High Quality Construction Machinery Tower Crane Tower Crane QTZ6010US$ 56,000 - 60,000MOQ: 1 Unit
-
High Quality Construction Machinery Tower Crane Tower Crane QTZ40-8tUS$ 56,000 - 60,000MOQ: 1 Unit
-
High Quality Construction Machinery Tower CraneUS$ 56,000 - 60,000MOQ: 1 Unit
-
50T/h Hot Asphalt Mixing Plant, Asphalt Hot Mix PlantUS$ 52,000 - 60,000MOQ: 1 Unit
cement block making machine
1.It's multi-functional
2.ISO&SGS&CE&BV
3.Capacity: 2200 ~4500 pcs/8 Hours
4.Good parts supply
This is a newly kind of automatic type developed by ourself based on the original medium and small-scale block machine. It adopts four-lead, channel steel stander making the equipment more firm and the mould and the squeeze head orientation more precise, and bed mould orientation vertical vibration and upper mould compression vibration,which improves the efficiency greatly and manufactures blocks with more average density and higher strength.
Overall Dimension : |
|
2060×1730×2580 (mm) |
Rated Pressure : |
|
16 MPa |
Main Vibration Form : |
|
Platform vibration |
Cycle Time : |
26 seconds |
|
Vibrating Frequency : |
|
4200 rolls/minute |
Exciting Power: |
35.5 KN |
|
Motors Power : |
|
14.25 KW |
Pallet Size : |
880*480*38 (mm) |
|
Raw Materials : |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes. |
|
Applied Products : |
concrete blocks, solid/hollow/cellular masonry products, paving stones without color-face, garden and landscaping products, interlocking blocks, etc. |
|
Applied Fields : |
Widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc. |
|
Productivity of this machine
Size mm |
Cycle |
QTY |
Per hour |
|
Hollow brick |
400*200*200 |
26S |
4 |
552 |
400*150*200 |
26S |
3 |
414pcs |
|
Solid block |
|
24s |
15 |
2250pcs |
Pls select the brick types and sizes you need from below:
