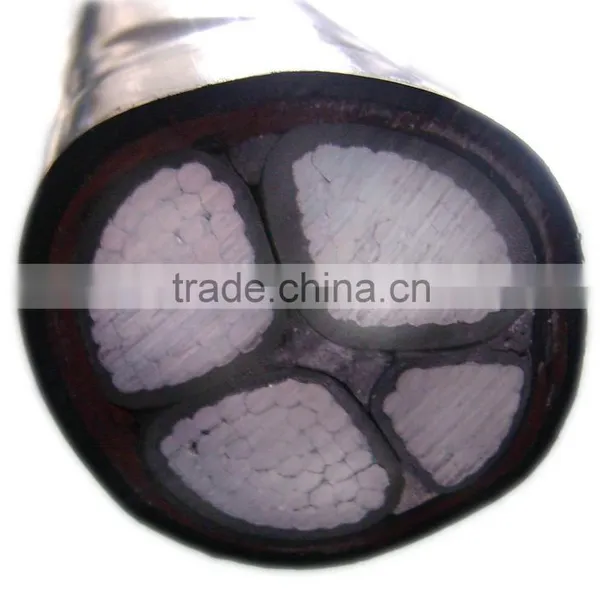

Help CenterLow Voltage Al Aluminum Conductor 4 Cores PVC Insulated PVC Sheath Fire Proof Low Halogen Electric Wire Cable
Related Products
-
Low Voltage Cu Copper Conductor Core 25mm XLPE Insulated PVC Sheath Steel Wire Armored Low Halogen Power Electric Wire CableUS$ 0.48 - 99.8MOQ: 1 Kilometer -
Cable Wire With Low Voltage Al Aluminum Conductor Core 25mm XLPE Insulated Steel Tape Armored Low Halogen Power ElectricUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
Cu Copper Conductor Core 25mm XLPE Insulated PE Sheath Steel Tape Armored Low Halogen Power Electric Cable WireUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
Low Voltage Cu Copper 4 Cores PVC Insulated PVC Sheath Steel Wire Armored Fire Proof Low Halogen Power Electric Cable WireUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
AL/CU Conductor Multicores 25mm PVC Insulated PE Sheath Thick Steel Wire Armored Power Electric Cable WireUS$ 0.48 - 99.8MOQ: 1 Kilometer
Specifications
Rated voltage:0.6/1kvConductor:AL/CU
Armor:steel tape,thin steel wire,thick steel wire
Sheath: PVC/PE
Easy installation
APPLICATION
This product is applicable to being fixedly laid on the transmission and distribution line of alternative current rating 50Hz and rated voltage up to 0.6/1.0Kv with the use for power transmission, which is applied to the range of distribution network, industrial equipments, etc.
This product is normal used cable, not suitable for some special situation, such as aerial, underwater, ship, sea, nuclear station, etc.
TYPE OF PRODUCT
type |
Name of product |
|
Cu |
Al |
|
VV |
VLV |
PVC insulated PVC sheath power cable |
VY |
VLY |
PVC insulated PE sheath power cable |
VV22 |
VLV22 |
PVC insulated steel tape armored PVC sheath power cable |
VV23 |
VLV23 |
PVC insulated steel tape armored PE sheath power cable |
VV32 |
VLV32 |
PVC insulated thin steel-wire armored PVC sheath power cable |
VV33 |
VLV32 |
PVC insulated thin steel-wire armored PE sheath power cable |
VV42 |
VLV42 |
PVC insulated thin steel wire armored PVC sheath power cables |
VV43 |
VLV43 |
PVC insulated thin steel –wire armored PE sheath power cables |
Low-smoke halogen-free flame-retardant property
order |
Items |
Unit |
Indicator |
1 |
Low-smoke property least light penetration quotiety |
% |
≥60 |
2 |
zero-halogen property PH value electrical conductivity |
μs/mm |
≥4.3 ≤10 |
COMPANY & WORKSHOP
PRODUCTION EQUIPMENT
TEST EUIPMENT
Producing Process
Why Us
FAQ
