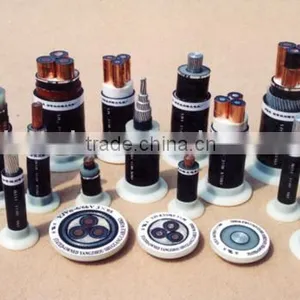

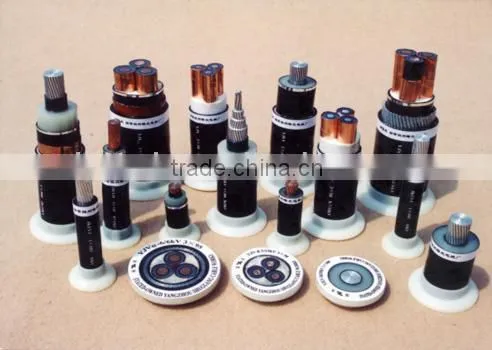

Help CenterLow Voltage Cu Copper Conductor Core 25mm XLPE Insulated PVC Sheath Steel Wire Armored Low Halogen Power Electric Wire Cable
Related Products
-
Cable Wire With Low Voltage Al Aluminum Conductor Core 25mm XLPE Insulated Steel Tape Armored Low Halogen Power ElectricUS$ 0.48 - 99.8MOQ: 1 Kilometer -
Cu Copper Conductor Core 25mm XLPE Insulated PE Sheath Steel Tape Armored Low Halogen Power Electric Cable WireUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
Low Voltage Cu Copper 4 Cores PVC Insulated PVC Sheath Steel Wire Armored Fire Proof Low Halogen Power Electric Cable WireUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
AL/CU Conductor Multicores 25mm PVC Insulated PE Sheath Thick Steel Wire Armored Power Electric Cable WireUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
Electric Power Cable ManufacturersUS$ 0.1 - 10MOQ: 10 Meters
Specifications
Rated voltage:0.6/1kvConductor:AL/CU
Armor:steel tape,thin steel wire,thick steel wire
Sheath: PVC/PE
Easy installation
APPLICATION
This product is applicable to being fixedly laid on the transmission and distribution line of alternative current rating 50Hz and rated voltage up to 0.6/1.0Kv with the use for power transmission, which is applied to the range of distribution network, industrial equipments, etc.
This product is normal used cable, not suitable for some special situation, such as aerial, underwater, ship, sea, nuclear station, etc.
TYPE OF PRODUCT
Type |
Name of product |
|
CU |
AL |
|
YJV |
YJLV |
XLPE insulated PVC sheath power cable |
YJY |
YJLY |
XLPE insulated PE sheath power cable |
|
YJV22 YJY22 |
YJLV22 YJLY22 |
XLPE insulated steel tape armored PVC sheath power cable |
|
YJV23 YJY23 |
YJLV23 YJLY23 |
XLPE insulated steel tape armoured PE sheath power cable |
|
YJV32 YJY32 |
YJLV32 YJLY32 |
XLPE insulated thin steel-wire armoured PVC sheath power cable |
|
YJV33 YJY33 |
YJLV33 YJLY33 |
XLPE insulated thin steel-wire armoured PE sheath power cable |
|
YJV42 YJY42 |
YJLV42 YJLY42 |
XLPE insulated thin steel –wire armoured PVC sheath power cables |
|
YJV43 YJY43 |
YJLV43 YJLY43 |
XLPE insulated thin steel –wire armoured PE sheath power cables |
Low-smoke halogen-free flame-retardant property
order |
Items |
Unit |
Indicator |
1 |
Low-smoke property least light penetration quotiety |
% |
≥60 |
2 |
zero-halogen property PH value electrical conductivity |
μs/mm |
≥4.3 ≤10 |
