Home > Products > Power cable > Tinned Copper cores PV1-F 1*2.5mm2 XLPE Insulated pv solar cable

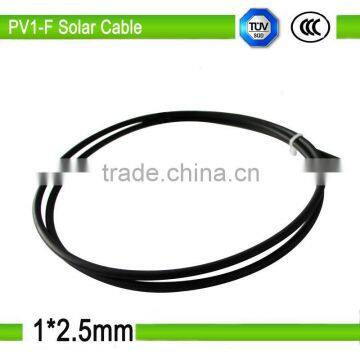

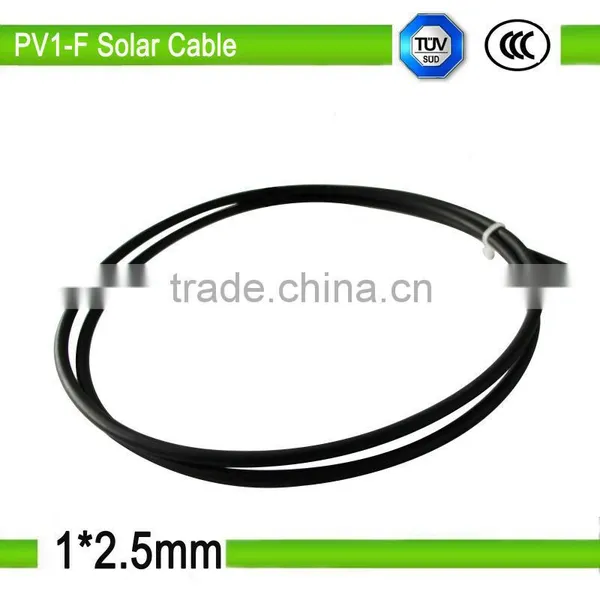

Tinned Copper cores PV1-F 1*2.5mm2 XLPE Insulated pv solar cable
USD $0.6 - $29.3
/ Kilometer
1 Kilometer(Min.Order)
- Qingdao
- T/T Credit Card
You May Like
-
copper conductor mult icore 5*25mm PVC insulated thick steel wire armored power electrical cable
-
0.6/1kv rated voltage AL/CU conductor multicore core mm PVC insulated PEpower electric cable
-
0.6/1kv rated voltage AL/CU conductor multicore core mm PVC insulated PVC steel tape armored power electric cable
-
0.6/1kv rated voltage AL/CU conductor multicore core mm PVC insulated PVC steel wire armored power electric cable
-
Xlpe Power Cable For High-rise Buildings Price
-
Heavy Duty Power Cable
Product Details
| Place of Origin | Henan, China | Brand Name | Dayuan | |
| Model Number | PV1-F 1*1.5mm2/ 1*2.5mm2/1*4mm2/1*6mm2/1*10mm2 | Insulation Material | XLPE | |
| Type | Low Voltage | Application | Construction | |
| Conductor Material | Other, Tinned Copper | Jacket | Other, XLPE |
Product Description
Specifications
solar cable1, IEC, ASTM, DIN, BS VDE, UL, GOST,SAS standard.Tinned Copper cores PV1-F 1*2.5mm2 XLPE Insulated pv solar cable
Tinned Copper cores PV1-F 1*2.5mm2 XLPE Insulated pv solar cable
Product Description
DATA:
Tinned Copper cores PV1-F 1*2.5mm2 XLPE Insulated pv solar cable
1, Specification Type:PV1-F 1*2.5mm2
Standard:2PfG 1169/08.07
TUV Certificate No.:50263641
2, Construction:
ITEM | Unit | Spec.Value | |
Conductor
| Material | -- | Tinned Copper |
Construction | NO./mm | 49/0.25±0.004 | |
Dia.(Approx) | mm | 2.1 | |
Insulation
| Material | -- | XLPE |
Thickness | mm | 0.7 | |
Dia.(Approx) | mm | 3.5 | |
Sheath
| Material | -- | XLPE |
Thickness | mm | 0.8 | |
Dia.(Approx) | mm | 5.4 | |
Color | -- | BK | |
Reference weight | kg/km | 55 | |
Tinned Copper cores PV1-F 1*2.5mm2 XLPE Insulated pv solar cable
3, Characteristics:
Rated Voltage | AC 0.6/1kV;DC 1.8kV |
Ambient Temperature | -40~90°C |
Max. Temperature at Conductor | 120°C |
Max. Conductor Resistance at 20°C | 8.21Ω/km |
The permitted short-circuit-temperature(5s) | 200°C |
Weathering/UV resistance | PASS |
Flame Test | IEC 60332-1 |
Rated Current | 41A |
