Specifications
1, IEC, ASTM, DIN, BS VDE, UL, GOST,SAS Standard.2, ISO, CCC, CQC Certification Approved. 8 Years Experience Of OEM Service.
Power Cable For High-rise Buildings Product Description
XLPE insulated power cable not only has excellent electric, mechanic properties, but also has powerful resistance chemical corrosion, antiaging and long life. Voltage grade is up to 26/35kv, crosssection area is up to 630 sqmm ( copper or aluminum conductor). The core number of conductor is from 1 to 5. Conductor longtime operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.
Application:
It is generally applied to the fields including substation, construction, mines, metallurgy, petrochemical industry for transmission and distribution electric energy. For laying indoor, tunnel, cable trench and underground.
Model and Name
Type |
Name of product |
Applicability and surroundings |
|
Copper core |
Aluminum core |
||
YJV |
YJLV |
XLPE insulated PVC sheath power cable |
For laying indoors , in tunnel or cable trench,unable to bear external mechanical forces,Single-core cable in magnetic duct is not permissible |
YJY |
YJLY |
XLPE insulated PE sheath power cable |
|
|
YJV22 YJY22 |
YJLV22 YJLY22 |
XLPE insulated steel tape armored PVC sheath power cable |
For laying indoors , in tunnel, cable trench, or direct in ground,able to bear external mechanical forces, but unable to bear large pulling force |
|
YJV23 YJY23 |
YJLV23 YJLY23 |
XLPE insulated steel tape armored PE sheath power cable |
|
|
YJV32 YJY32 |
YJLV32 YJLY32 |
XLPE insulated thin steel-wire armored PVC sheath power cable |
For laying indoors , in tunnel, cable french, well or direct in ground,able to bear external mechanical forces, and certain force . |
|
YJV33 YJY33 |
YJLV33 YJLY33 |
XLPE insulated thin steel-wire armored PE sheath power cable |
|
|
YJV42 YJY42 |
YJLV42 YJLY42 |
XLPE insulated thin steel –wire armored PVC sheath power cables |
|
|
YJV43 YJY43 |
YJLV43 YJLY43 |
XLPE insulated thin steel –wire armored PE sheath power cables |
|

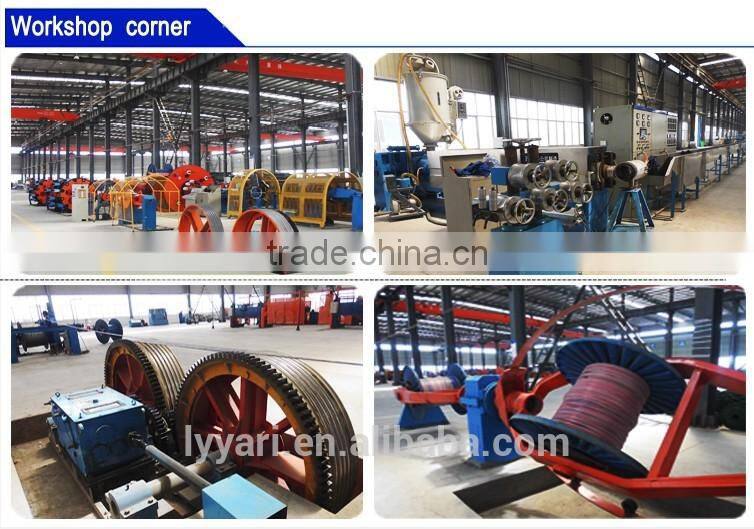

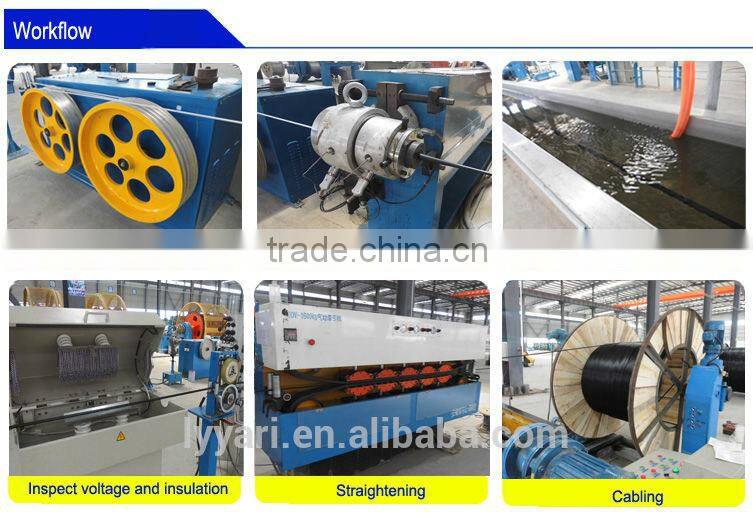

Producing Process

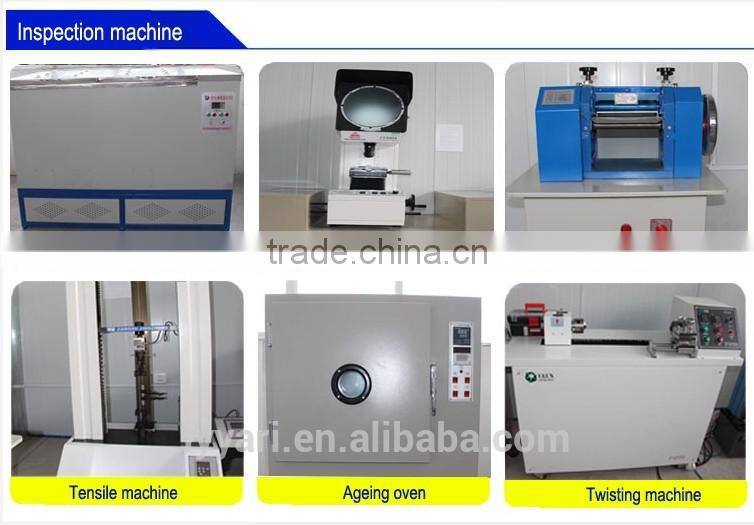

Testing Equipment
