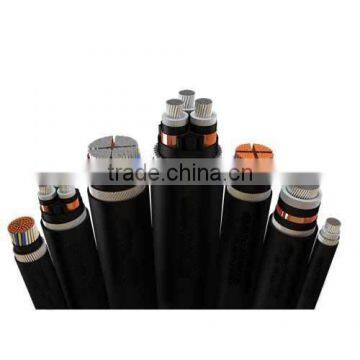

Help Center0.6/1kv Rated Voltage AL/CU Conductor Multicore Core mm PVC Insulated PVC Steel Wire Armored Power Electric Cable
Related Products
-
Xlpe Power Cable For High-rise Buildings PriceUS$ 0.48 - 99.8MOQ: 1000 Meters -
Heavy Duty Power CableUS$ 0.48 - 99.8MOQ: 1000 Meters
-
Heat Resistant Power CableUS$ 0.48 - 99.8MOQ: 1000 Meters
-
Electrical Cable Manufacturing BusinessUS$ 0.48 - 99.8MOQ: 1000 Meters
-
0.6/1kv Tinned Copper DC Power Cable DC Solar PV CableUS$ 0.3 - 0.6MOQ: 1000 Meters
Specifications
Rated voltage:0.6/1kvConductor:AL/CU
Armor:steel tape,thin steel wire,thick steel wire
Sheath: PVC/PE
Easy installation
APPLICATION This product is applicable to being fixedly laid on the transmission and distribution line of alternative current rating 50Hz and rated voltage up to 0.6/1.0 kV with the use for power transmission, which is applied to the range of distribution network, industrial equipments, etc.
This product is the normal used cable, not suitable for some special places, such as underwater, ship, nuclear station, etc.
The product has good performance on electrical characteristic, chemical resistance, such as acid resistance, alkali resistance and organic solvent resistance. The product can be laid on any head drop condition even vertically in any place, that is to say, the cable can be laid without limit on head drop.
TYPE OF PRODUCT
type |
Name of product |
|
Cu |
Al |
|
VV |
VLV |
PVC insulated PVC sheath power cable |
VY |
VLY |
PVC insulated PE sheath power cable |
VV22 |
VLV22 |
PVC insulated steel tape armored PVC sheath power cable |
VV23 |
VLV23 |
PVC insulated steel tape armored PE sheath power cable |
VV32 |
VLV32 |
PVC insulated thin steel-wire armored PVC sheath power cable |
VV33 |
VLV32 |
PVC insulated thin steel-wire armored PE sheath power cable |
VV42 |
VLV42 |
PVC insulated thin steel wire armored PVC sheath power cables |
VV43 |
VLV43 |
PVC insulated thin steel –wire armored PE sheath power cables |
Low-smoke halogen-free flame-retardant property
order |
Items |
Unit |
Indicator |
1 |
Low-smoke property least light penetration quotiety |
% |
≥60 |
2 |
zero-halogen property PH value electrical conductivity |
μs/mm |
≥4.3 ≤10 |
