DATA:

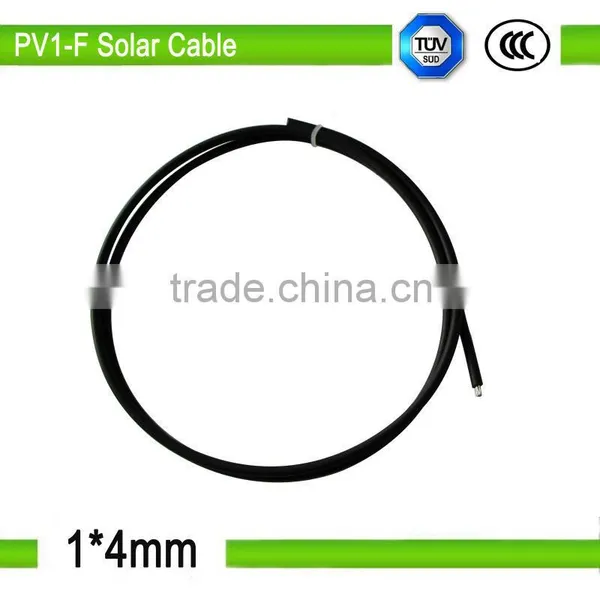

PV1-F 1*4mm2 Tinned Copper solar pv cable for solar power system
1, Specification Type:PV1-F 1*4mm2
Standard:2PfG 1169/08.07
TUV Certificate No.:50263641
2, Construction:
ITEM |
Unit |
Spec.Value |
|
|
Conductor
|
Material |
-- |
Tinned Copper |
Construction |
NO./mm |
56/0.30±0.004 |
|
Dia.(Approx) |
mm |
2.6 |
|
|
Insulation
|
Material |
-- |
XLPE |
Thickness |
mm |
0.8 |
|
Dia.(Approx) |
mm |
4.3 |
|
|
Sheath
|
Material |
-- |
XLPE |
Thickness |
mm |
0.8 |
|
Dia.(Approx) |
mm |
6.3 |
|
Color |
-- |
BK |
|
Reference weight |
kg/km |
80 |
|
3,Characteristics:
|
Rated Voltage |
AC 0.6/1kV;DC 1.8kV |
|
Ambient Temperature |
-40~90°C |
|
Max. Temperature at Conductor |
120°C |
|
Max. Conductor Resistance at 20°C |
5.09Ω/km |
|
The permitted short-circuit-temperature(5s) |
200°C |
|
Weathering/UV resistance |
PASS |
|
Flame Test |
IEC 60332-1 |
|
Rated Current |
55A |

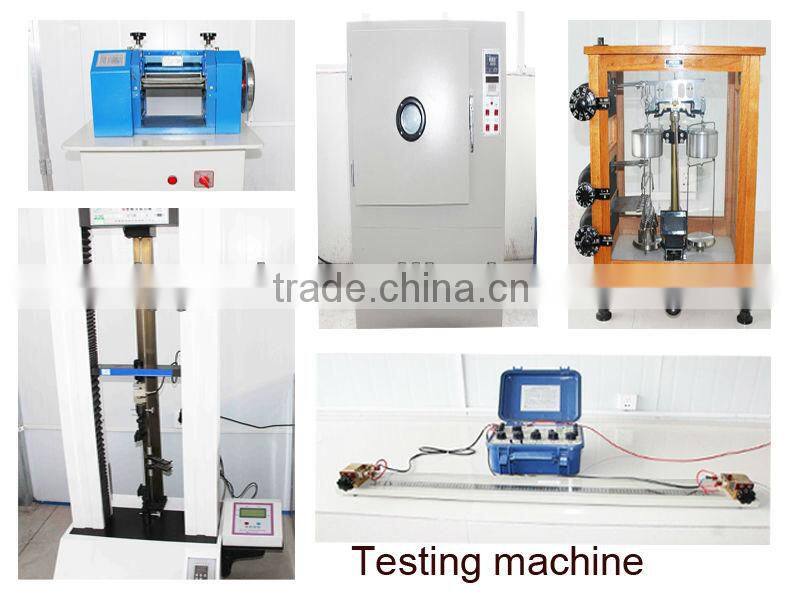

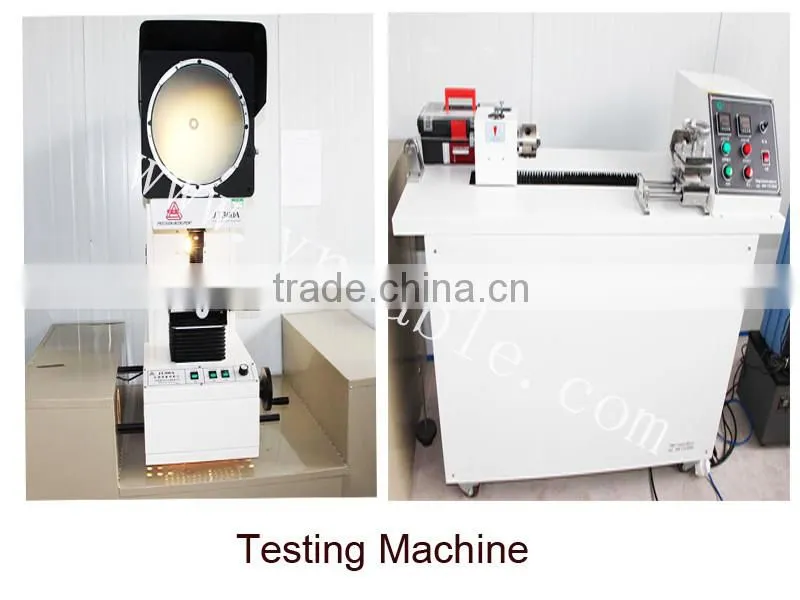

TESTING MACHINE
PV1-F 1*4mm2 Tinned Copper solar pv cable for solar power system
PRODUCING PROCESS
WHY US
FAQ
CONTACT US
PV1-F 1*4mm2 Tinned Copper solar pv cable for solar power system
