Twisted ABC Cable
Applications of twisted abc cable
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
Specification of twisted abc cable
service drop cable meets or exceeds the following ASTM specifications:
· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
Construction of twisted abc cable
Conductors are concentrically stranded, compressed 1350 H-19 aluminum. Insulated with either polyethylene or cross-linked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC, or ACSR.

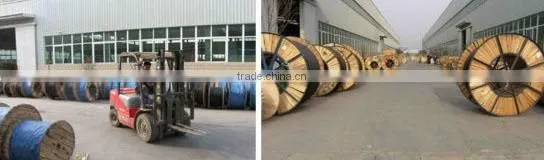

Packaging & Shipping

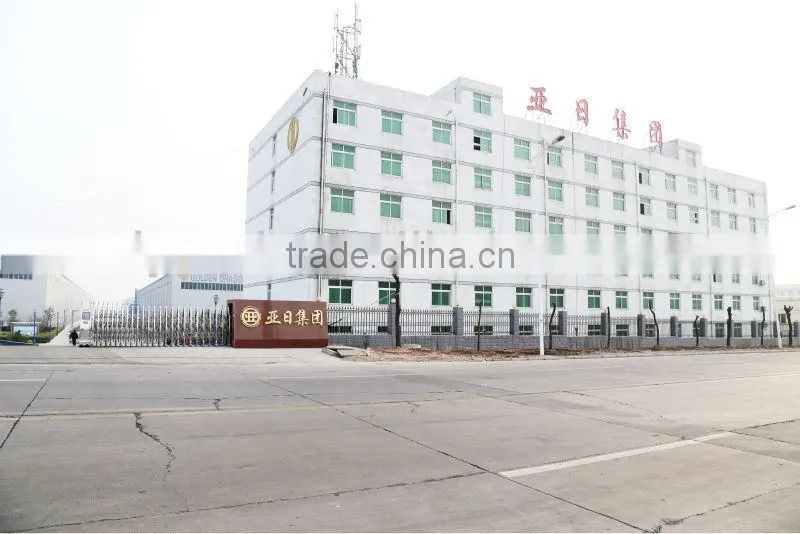

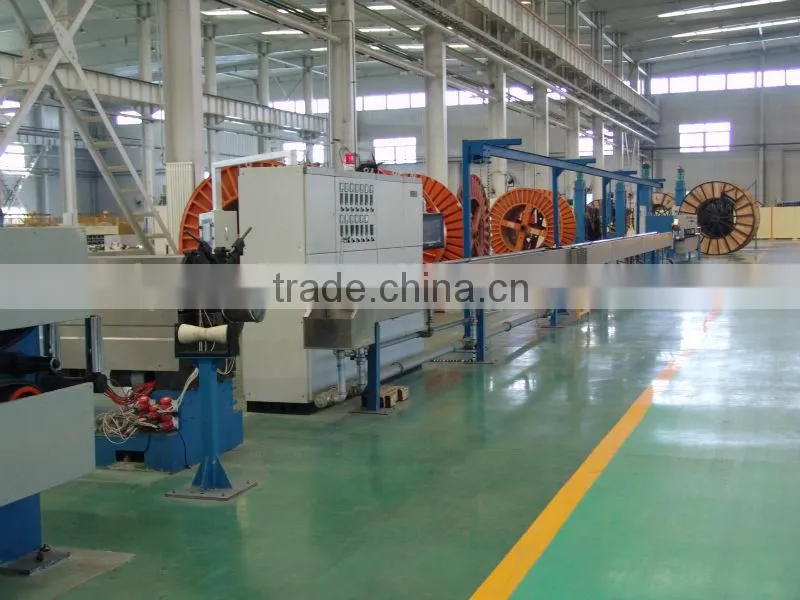

Company Information
Our Service
1) Inquiries are typically answered within 12 hours and OEM is welcome.
2) We have experienced QC to control the quality of different kind of cables.
3) We're CCC certificated, and can provide CE, Rohs and SGS certificates before exporting.
4) We have grown from a small factory with an annual turnover of USD50,000 to over USD50,000,000 during these 10 years.
5) Huge Inventory Allows Us To Ship Your Order Immediately
6) Our employees are all capable and professinal. They can offer you the Prompt Courteous Service.
7) We ship worldwide.
Please feel free to contact me for more information.
