Specifications
1, IEC, ASTM, DIN, BS VDE, UL, GOST,SAS standard.2, ISO, CCC, CQC certification approved. 8 Years Experience of OEM se

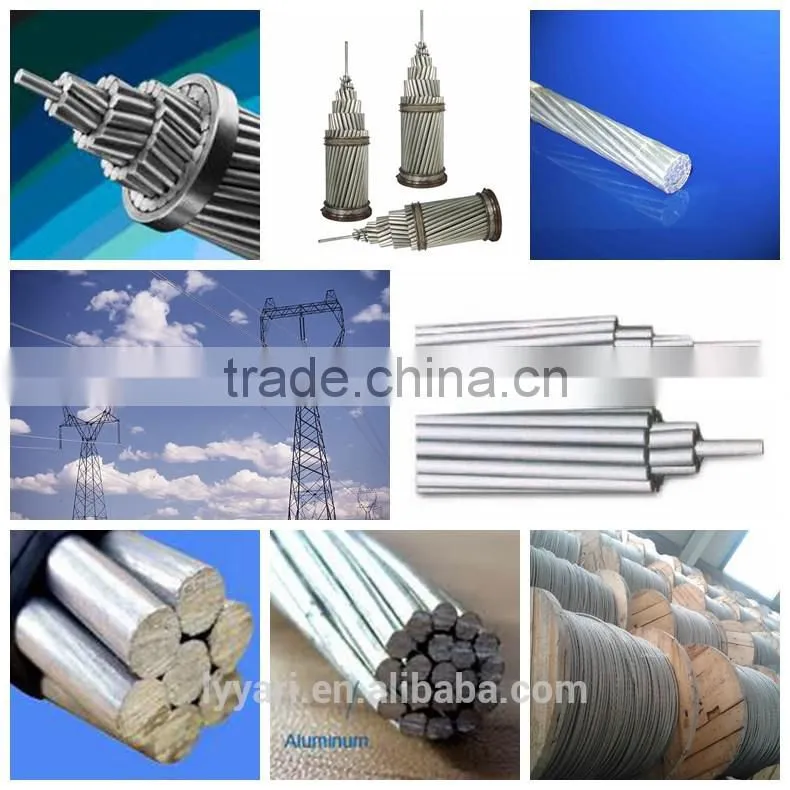

Aluminum Wire AAC 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2 Product Description
APPLICATIONS
Classes AA and A are used primarily for overhead transmission and primary and secondary distribution, where capacity must be maintained and a lighter conductor (compared to ACSR) is desired, and when conductor strength is not a critical factor. Classes B and C are used primarily as bus, apparatus connectors and jumpers, where additional flexibility is required. Classes refer to stranding and are an indication of relative conductor flexibility, AA being the least flexible, C the most flexible.
SPECIFICATIONS
AAC bare conductor meets or exceeds the following international specifications:
• B230 Aluminum 1350-H19 Wire for Electrical Purposes.
• B231 Concentric-Lay-Stranded Aluminum 1350 Conductors.
• GB1179-83 Chinese National Standard
• IEC 60189 Round Wire Concentric Lay Overhead Electrical Stranded Conductor
• BS215-1 Aluminum Conductors and Aluminum Conductors Steel Reinforced
• DIN48201 Aluminum Conductors
Standards
ASTM-B232 Standard specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
BS215-2 aluminum conductors steel-reinforced —For overhead power transmission
DIN48204 Steel reinforced aluminum stranded conductors
IEC209 Aluminum stranded conductor steel reinforced Customized type available.
Data

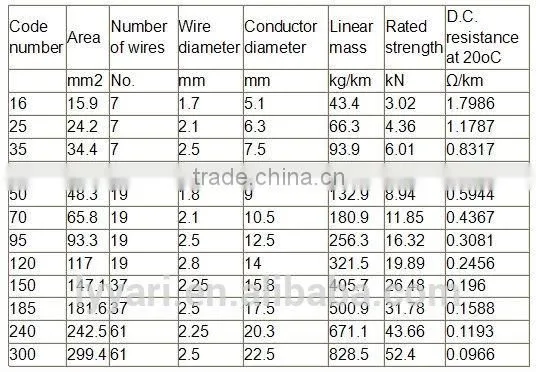

AAC Technical Characteristics Based on Standard DIN 48201 / DIN EN50182

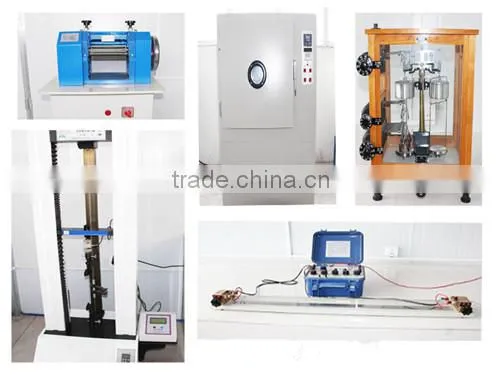

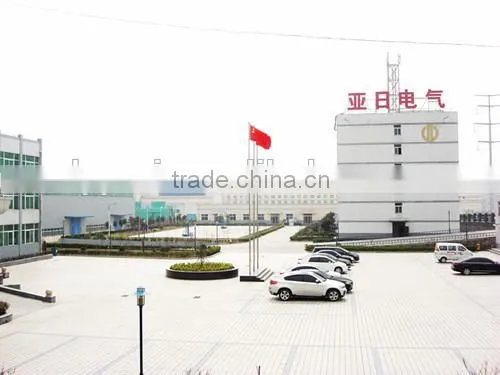

Workshop
