802.11 B/g/n, 300Mbps, Bonding VDSL Modem Router, One USB Port, TR-069, QOS, WPS, KW5226
Negotiable
MOQ: 100 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Kasda
Model Number:
KW5226
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
802.11 B/g/n, 300M Bonding ADSL Modem Router, One Gigabit Port, TR-069, QOS, WPS, KW5225NegotiableMOQ: 100 Units -
802.11 B/g/n GPON VOIP Modem Router, 1GHz Dual Core, Two FXS Ports, One USB Port,Four Gigabit Ports, TR-069,QOS, WPS. KW562GENegotiableMOQ: 10 Units
-
11b/g/n 300Mbps Internet Modem Router, TR-069, QOS, WPS, KW58293NegotiableMOQ: 100 Units
-
11b/g/n 300M ADSL Wifi Bridge, TR-069, WPS, QOS, KW58293NegotiableMOQ: 100 Units
-
11b/g/n 300Mbps DSL Bonding Router, One USB Port, TR-069, QOS, WPS, KW5226NegotiableMOQ: 100 Units
Place of Origin
Guangdong, China
Brand Name
Kasda
Model Number
KW5226
Specifications
1) Bonding Two DSL lines2) 3FE port and 2 GE port for internet wired connection
3) One USB ports for Storage and print
Product Description

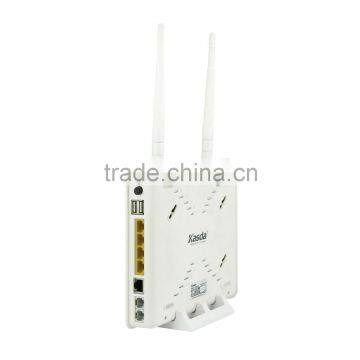

| Product Picture |
|
|
| WiFi Technology | Wireless 802.11b/ g / n AP integrated | |
| WiFi Performance | 300Mbps | |
| WiFi Range | Large homes | |
| WiFi Band | 2.4 GHz | |
| Number of Ethernet Ports | Three (3) 10/100 Mbps Ethernet ports & One (2) 10/100/1000 Mbps Ethernet ports | |
| Number of USB Ports | one | |
| Key Features | Support Fall back to ADSL/ADSL2+ | |
| 1 USB Port for printer | ||
| Easy Installation Wizard | ||
| Integrated With TR-069 Client | ||
| Transparent Bridge working mode | ||
| ITU-T:992.3(ADSL2),992.5(ADSL2+),993.2(VDSL2), 993.1 (VDSL) | ||
| Enable multimode operability with VDSL2 and ADSL2/ADSL2+ | ||
| 802.1p Qos,4 Queues support | ||
| PPPOE,PPPOA,IPOE,IPOA,Bridge service type | ||
| Multiple PVC up to 8 groups | ||
| DHCP server,relay and client | ||
| On/off LED lights option | ||
| Integrated With TR-069 Client | ||
| Security | PAP/CHAP Authentication for PPP mode | |
| NAT for basic Firewall support | ||
| Security IEEE 802.11x Supports 64/128 bits WEP, WPA, WPA2, WPA/WPA2-PSK | ||
| Support Date & Time parent control | ||
| State Packet Inspection (SPI) for Firewall with denial-of-service (DoS) protection | ||
| ALG (Application-level gateway) for NAT/PAT support | ||
| 2 Level (User/Admin) Password Authentication to Router | ||
| IP Filtering | ||
| MAC Filtering | ||
| Parental control | ||
| Processor | BCM63168 | |
| Memory | 8 MB flash and 64 MB RAM | |
| Physical Specifications | Dimensions: 6.89*4.72*1.38 in(175*120*35 mm) | |
| Weight: 0.88 lbs(400 g) | ||
| Product Diagram | |
|
| Package Contents | DSL Router | |
| Telephone Line | ||
| Antennas | ||
| Ethernet cable | ||
| External Splitter | ||
| Power adapter | ||
| Standards | IEEE® 802.11 b/g/n 2.4GHz | |
| Three (3) 10/100 Mbps Ethernet ports & One (2) 10/100/1000 Mbps Ethernet ports | ||
| System Requirements | Microsoft® Windows 7, 8, 8.1, Vista®, XP®, 2000, Mac OS®, UNIX®, or Linux® | |
| Microsoft® Internet Explorer® 5.0, Firefox® 2.0, Safari® 1.4, or Google Chrome™ 11.0 browsers or higher | ||
| Warranty | 1 year warranty |
