Home > Products > Fast PCB > Pcb Board by Paypal

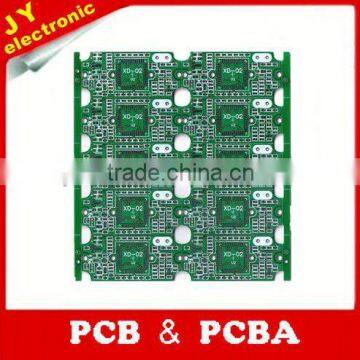

Pcb Board by Paypal

FOB Price

US$ 0.015 - 1 / Piece

1 Piece(Min. Order)

Port DALIAN PORT
Payment TermsT/T L/C D/P D/A Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China	Brand Name	JY
Model Number	2 layer pcb	Base Material	FR4,FR1,CEM3,Aluminum,Ceramic
Copper Thickness	1oz~4oz	Board Thickness	0.5~3.2mm
Min. Hole Size	0.15mm	Min. Line Width	0.08mm
Min. Line Spacing	0.08mm	Surface Finishing	HASL,Lead Free HASL, OSP,ENIG,Gold

Product Description

Specifications

pcb board by paypal
a.PCB&PCBA OEM
b.High quality
c.Turkey service
d.UL, SGS, RoSH, TS Certificates

pcb board by paypal

Double layer pcb is our hot sale product.

You make a good choice!

Welcome to Dalian JY Electronic Technology Co., Ltd.

There is professional pcb&pcba design group waiting for you! Also there is pcb&pcba factory producing for you! Welcome your inquiry!

We independently research and develop Internet control system, Internet numericalcontrol system, robot control system and produce hardware and software independently for control management etc.. Also supply clients SAS Marketing Automation. Door bell, car alarm, mobile solar charger design by us is most welcome products.

PCB Certificates Details

All our certificates are just for PCB, not for PCBA, pls notice.

JY Factory Real Photos

The last three pieces photos are pcba factory.

JY Main Clients

JY PCB Engineering Capacity

No.	Item	Spec
1	Layers	1 to 24 layers
2	Max working panel area	457 x 610 mm
3	Min board thickness	4 layer: 0.40mm
		6 layer: 0.80mm
		8 layer: 1.00mm
		10 layer: 1.20mm
4	Min trace width	0.10mm
5	Min spacing	0.10mm
6	Min hole diameter	0.20mm
7	Min Copper thickness in hole	0.020mm
8	PTH size tolerance	±0.05mm
9	NPTH size tolerance	±0.025mm
10	Hole position tolerance	±0.05mm
11	Dimension tolerance	±0.1mm
12	Min solder mask dam	0.08mm
13	Insulation resistance	1E+12Ω (normal condition)
14	Max Board thickness/Hole size Rate	'10:1
15	Thermal shock endurance	288 3 times in 10sec
16	Max Board twist and wrap	≤0.7%
17	High Vlotage endurance	1.3KV/mm
18	Copper foil peel off endurance	1.4N/mm
19	Hardness of resist ink	≥6H
20	Flame resistance	94V-0
21	Impedance control	±5%
22	Certificate	ISO 9001:2000;ISO 14001;ISO/TS16949:2002 ,UL E203640

JY PCB QC System

JY PCB Payment way and Delivery way.

Our payment way is flexible and multiple. For samll quantity order, we supply Express delivery.For mass order,we delivery by ship.

pcb board by paypal

Purchase Tips:
A.For PCB order, please provide Gerber file or pcb file. Any detail is also welcomed if no gerber file.
B.Large PCB quantity order, quotation will be based on SQM.
C.For PCBA order, please provide the Gerber file, pcb file and BOM List.
D.Reverse engineering and PCB clone service can be supplied with your PCB sample.
E.Any question, welcome to contact our sales person Lucy Gao by sending inquries, your satisfactionis our pleasure.
