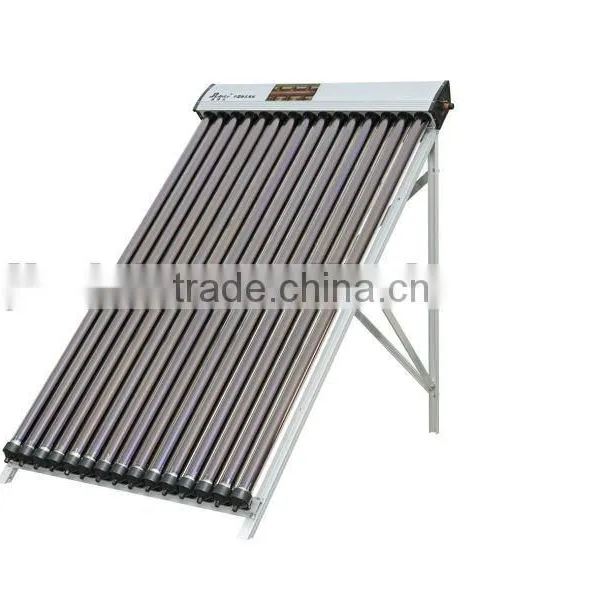

Solar Collector

Specifications

Solar Collector
2) SK SRCC CE ISO9001approved
3) highest efficiency
4) best quality
5) special

Solar Collector







Key Specification:

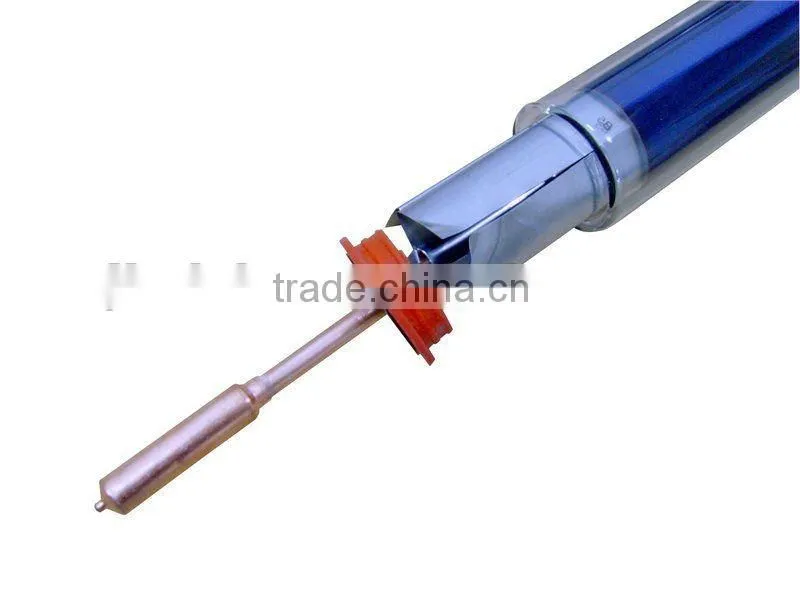

Water is rapidly heated by the heat pipe

There is no water in the vacuum tube, so the tube will not break in winter

The small size of the collector allows for versatile architectonic integration

Collector can be combines with existing pipeline

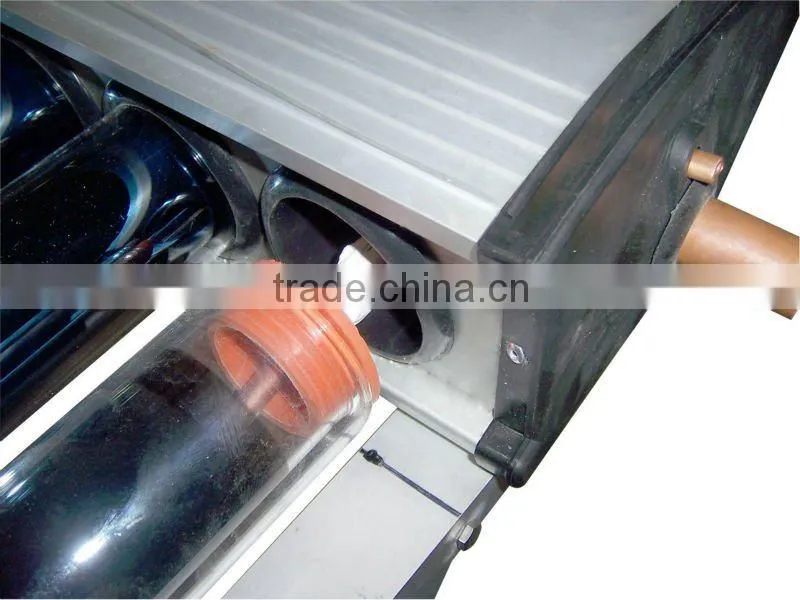

The collector can operate even in case of a broken tube. A single tube can if necessary be exchanged without interruption of the heating cycle.



Material:

Outer tank: aluminum alloy 2.0mm

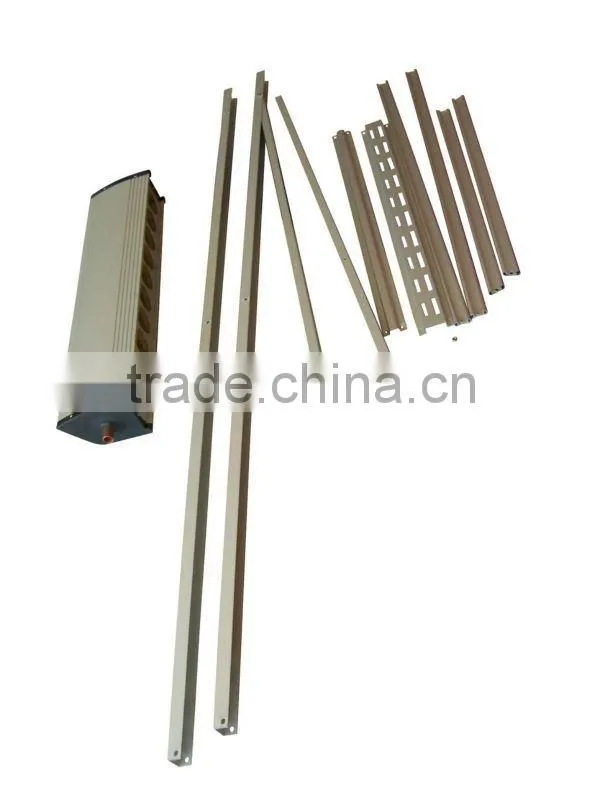

Frame if made of aluminum alloy.

Color: silver/black

Remark:

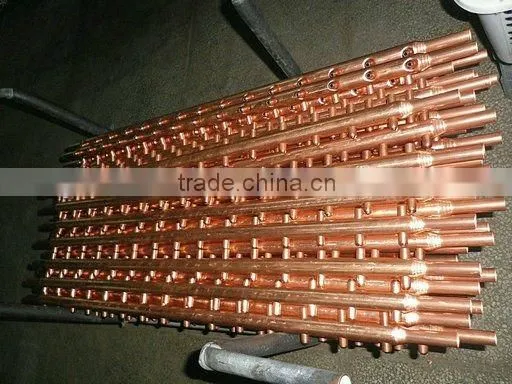

Manifold connection(inch):1/2 3/4

Test pressure(pa):1MPa

Operating fluid ppressure(pa):0.6MPa

Max. service temperature:95

Max. stagnation temperature:242

Distance from tube to tube:75

Flow range recommendation:50-150l/m2h

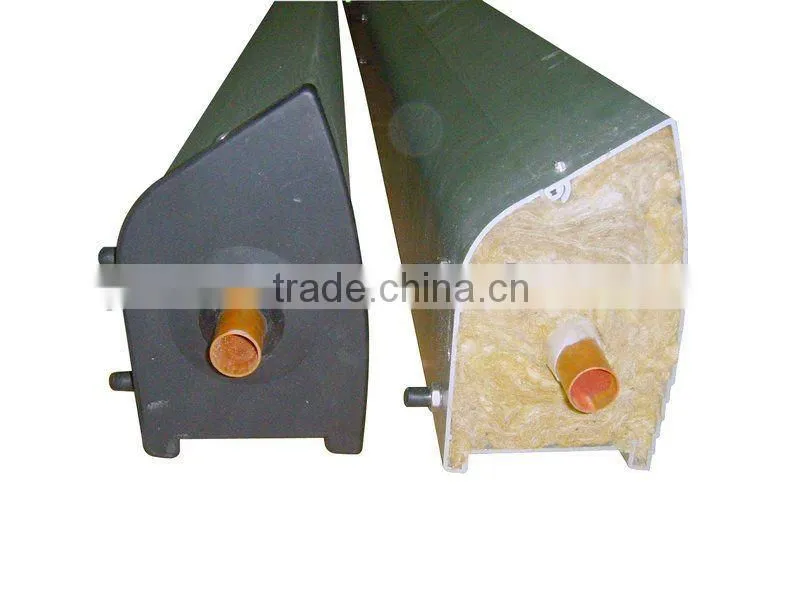

Insulation thickness(mm):40

Min. collector angle(degree):15

Max. collector angle(degree):75
