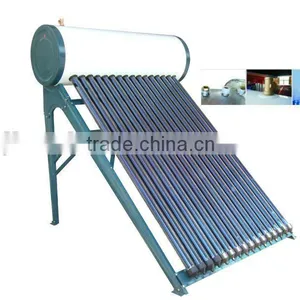

Compact Pressurized Solar Water Heater

FOB Price

USD $270 - $720 / Set

1 Set(Min.Order)

Product Details

Type:	Other, Evacuated Tube, Evacuated Tube	Pressure:	Other, Pressurized, Pressurized	Circulation Type:	Direct / Open Loop (Active)
Heating System:	Other, Batch / ICS (Passive), pressurized system	Connection Type:	Direct-Plug	Installation:	Freestanding
Housing Material:	Other, Stainless Steel, Galvanized steel/ Stainless steel/Colour steel	Certification:	CE, Other, CE, CCC, ISO9001	Capacity:	200, 150200300
Place of Origin:	Zhejiang, China	Brand Name:	JIADELE	Model Number:	JDL-HP20-58/1.8

Compact Pressurized Solar Water Heater
Work with high pressure.
inner tank: SUS 304-2B-1.2mm
outer tank: galvanized steel

Compact Pressurized Solar Water Heater

Key Specification:

1) inner tank: SUS 304-2B food grade stainless steel sheet, thickness:1.2mm

2) outer tank: stainless steel SUS304, thickness:0.40mm

3) frame: stainless steel SUS304, thickness: 1.5mm

4) vacuum tube: AL-SS/CU-58/1800mm

REMARK:

Solar heat storage tank diameter(mm):365/480

Thickness, insulated(mm):55

Vent connection(inch):3/4

Electric heater connection(inch):1.25

Water connection(inch):3/4

Collector angle(degree):20/45

Test pressure(pa):0.9MPa

Operating fluid ppressure(pa):0.6MPa

Distance from tube to tube:80

Zhejiang Jiadele Solar Energy Co., Ltd.: Contact namejiadele xu; Phone86-0573-86565307,10,11; AddressBldg. 1, No. 12, Fenghuang Rd., Dingqiao Town, Haining
