Pre-heated Solar Water Heater

Specifications

1,Pre-heated Solar Water Heater
2,CE, CCC, ISO 9001 proof;
3,Higher Qualtiy;
4,competitive

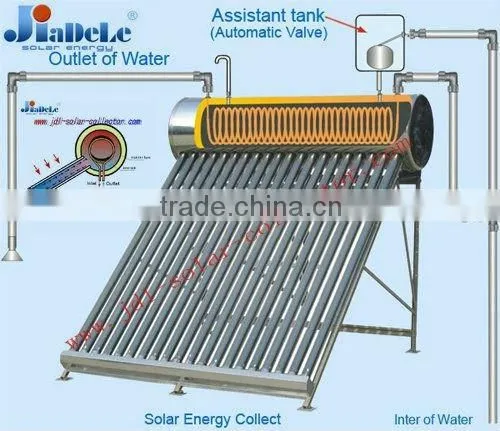

Pre-heated Solar Water Heater





Key Specification:



Instant heat exchange; plentiful warm water for use



Fresh water quality



Copper coil is tested and does not break







Material:

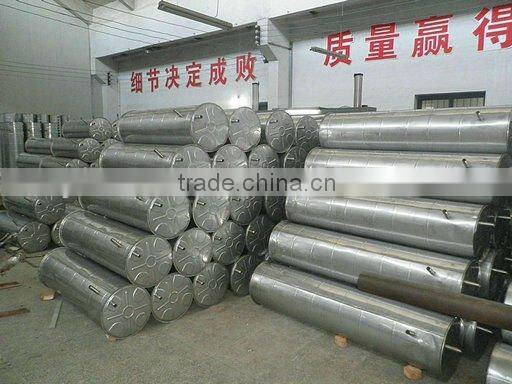

1)  Inner tank: stainless steel SUS304--0.50mm

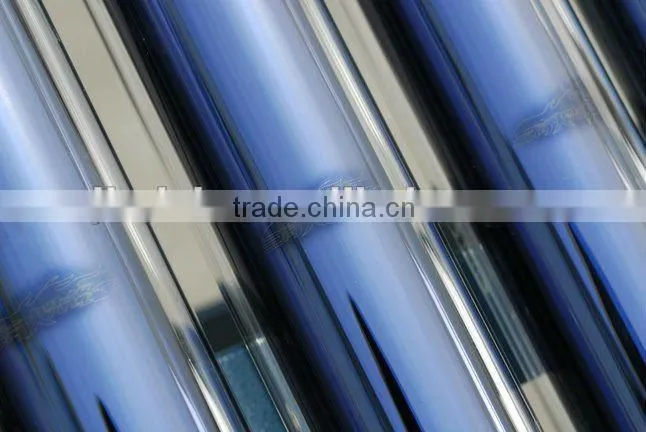

2)  Vacuum tube: AL-SS/CU-58-1800



3)  Outer tank: color steel-0.4mm



4)  Frame: coated galvanized steel-1.5mm



5)  The material of insulation: polyurethane



6)  The reflector: aluminum

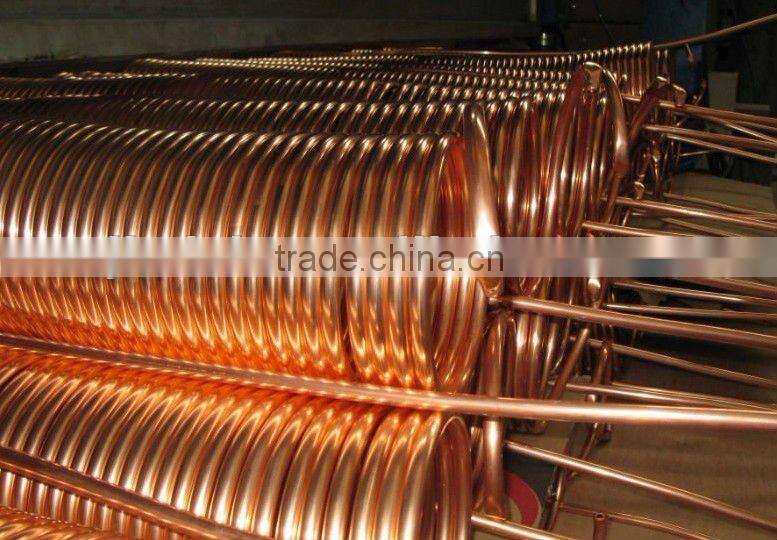

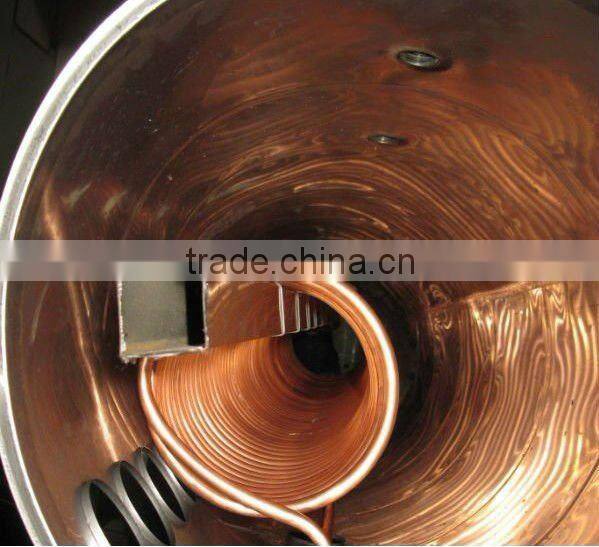

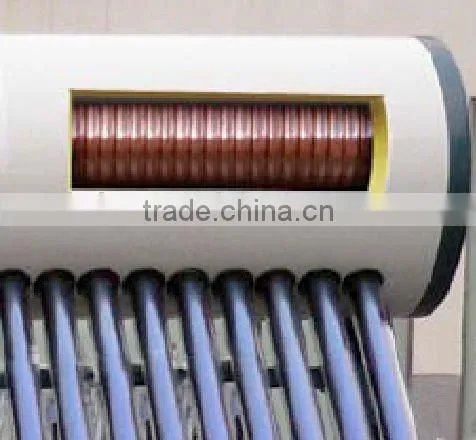

7)  Copper coil: Φ12mm, thickness 1.0mm



Remark:



Solar heat storage tank diameter(mm):360/480



Thickness insulated(mm):50



Max. fluid pressure(pa):1MPa



Operation fluid pressure(pa):0.4MPa



Coil connection(inch):1/2



Hot-outlet(inch):1/2



Cold-inlet(inch):1/2



Small tank connection(inch):1/2



Electric heater connection(inch):1.25
