Non-pressurized series two inner tanks solar water heaterThe special of this new type solar water heater is inner tank which d

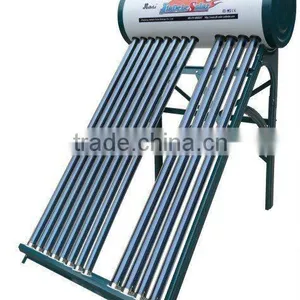

Non-pressurized series two inner tanks solar water heater
CHARACTERISTICS
Optimized design
The special of this new type solar water heater is inner tank which designed with two independent inner tanks, this product is a national patent.
Automatic feeding water
Adopted an assistant tank to stop feeding when the tank is full of water, otherwise automatic feeding while the tank is lack of water. This solved the problem of not work with a sensor controller sometimes. Automatic feeding water is better than feeding by a sensor controller, no need of looking after.
The way of hot water outlet
Designed with two independent inner tanks which insulated by polyurethane, the bottom cold water in the big inner tank pushes the hot water into the small inner tank, then the hot water outlets from the upside of the small inner tank, thus the hot water in the small inner tank will be more and hotter. This special design improves the efficiency of outlet water, separates cold water and hot water to improve the using of hot water, and avoids the water sometime cold and sometimes hot.
Inner tank: stainless steel SUS304-0.5mm
Vacuum tube: AL-CU/SS-58-1800
Outer tank: stainless steel
Frame: stainless steel-1.2mm
REMARK
Solar heat storage tank diameter: 360/460mm
Thickness, insulated: 50mm
Vent connection: 3/4inch
Electric heater connection: 1.25inch
Water connection:3/4inch
Collector angle: 30/40
