New Model 5kw Wind Turbine Generator
New Model 5kw wind turbine generator
1.Carbon steel body, compact, safe.
2.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure,which enhance
the wind energy utilization and annual output.
3.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the
wind wheel and generator, and ensure the performance of whole system.
4.Tail adopts mechanical yaw technique, making it survive storm and run safely.
5.With epoxy zinc rich primer and polyurethane anti-corrosion treatment,be ultraviolet-proof, acid rain resistant, salt resistant.
6.Intelligent automatic grease injection, which ensure flexible running and durable life.

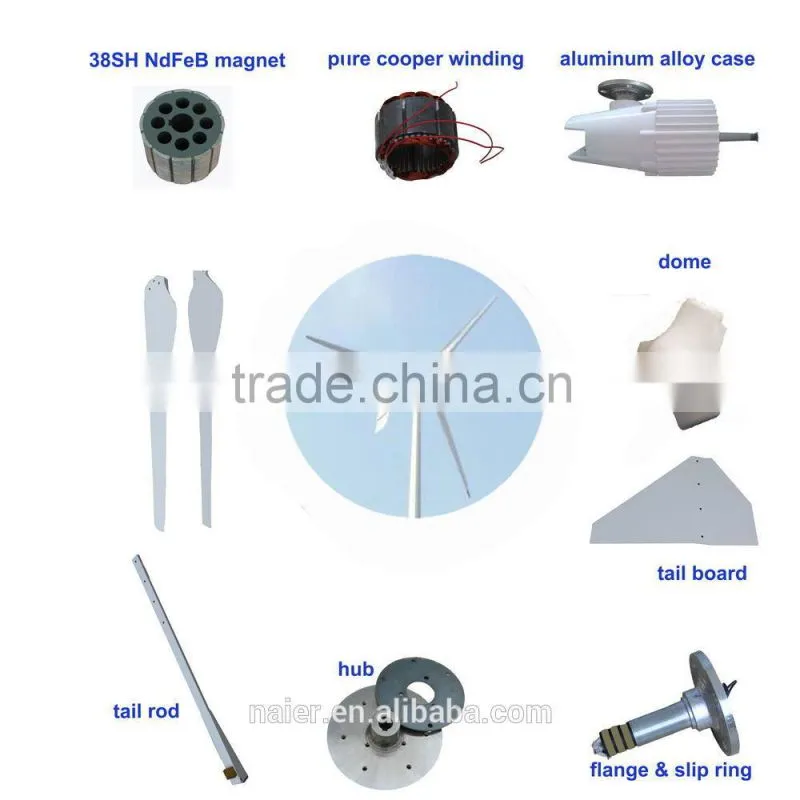

Real Picture of New Model 5kw wind turbine generator
For 1 set 5kw off grid wind tubrine system, you need 5kw wind turbine, controller, inverter, pole and battery.
For 1 set 5kw grid tie wind turbine system, battery is no need.
Please tell me which goods you want to buy from us ?
New Model 5kw wind turbine generator Details
Wind Turbine Technical Data
Model |
NE-5k |
Rated power |
5kw |
Maximum power |
6kw |
Rated voltage |
120/220/240v |
Start-up wind speed |
3m/s |
Rated wind speed |
10m/s |
Survival wind speed |
45m/s |
Top net weight |
285kg |
Wheel diameter |
6.3m |
Number of blades |
3 |
Blades material |
Reinforced glass fiber |
Generator type |
Three phase permanent magnet AC synchronous generator |
Magnet material |
NdFeB |
Generator case |
Carbon steel |
Control system |
Electromagnet/wind wheel yaw |
Speed regulation |
Tail furling |
Working temperature |
-40°C - 80°C |
Design life |
20 y |
Certificates |
CE, ISO14001,ISO 9001, TUV |
Packing Way
Wind Turbine System
Wind Solar Hybrid System
For More Details, Pls Contact Me by Click here or as below:

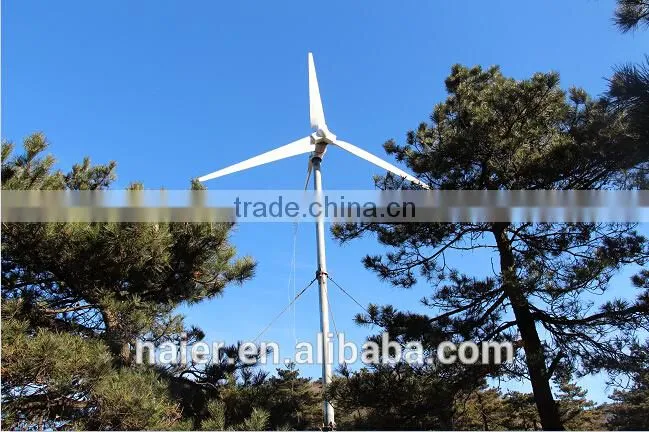

Project Example

Trade Shows
Certificates
Customer visiting
FAQ
1. Q: Does installation Easy ?
A: Very easy, every customer can do it by themselves, we will supply all the components for installation and
very details installation manual.
2. Q: Does our wind is enough for a wind generator ?
A: As our wind generator can start running at low wind speed2.5m/s. so your average annual wind speed is more
than 5m/s then you can use it .
3. Q: Which model wind generator is suitable for me?
A: Please contact our sales with following points :
1. What appliance do you want to running by the system? How many watts are they and their working time .
2. Your annual wind speed .
3. What kinds of system do you want ? On-grid or off-grid
4. Q: Can I only buy parts not whole system?
A: Yes,for example you can manufacture tower in local , we can supply you tower drawing .
Any other questions ,please feel free to contact us .
