Specifications of 10kw residential wind power generator, off grid system,
household wind generator
stable,safe,low noise
good power output
easy installation
CE/ISO certified
As Manufacturer of small wind turbine for over 6 years, we offer you:
Stable products
Practical solutions
Competitive price
Best after sales service
Welcome to contact us, we are ready to offer what available.
10kw residential wind power generator specs
Model |
NE-3k |
NE-5k |
NE-10k |
Rated power |
3kw |
5kw |
10kw |
Maximun power |
4kw |
6kw |
13kw |
Rated voltage |
96/120/220V |
120/220/240v |
220/240/380v |
Start-up wind turbine |
3m/s |
3m/s |
3m/s |
Rated wind speed |
10m/s |
10m/s |
10m/s |
Survival wind turbine |
45m/s |
45m/s |
45m/s |
Top net weight |
205kg |
285kg |
400kg |
Wheel diameter |
5.6m |
6.3m |
8.2m |
Number of blades |
3 |
||
Blades material |
Reinforced glass fiber |
||
generator |
Three phase permanent magnet ac synchronous generator |
||
magnet |
NdFeB |
||
Generator case |
Carbon steel |
||
Control system |
Electromagnet/wind wheel yaw |
||
Speed regulation |
Tail furling |
||
Working temperature |
-40°C - 80°C |
||
Design life |
20 y |
||
10kw residential wind power generator features
1.Carbon steel body, compact, safe
2.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.
3.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
4.Tail adopts mechanical yaw technique, making it survive storm and run safely
5.With epoxy zinc rich primer and polyurethane anti-corrosion treatment,be ultraviolet-proof, acid rain resistant, salt resistant
6.Controller,inverter can be matched accroding to customers’ specific needs
Manfacturing process
10kw residential wind power generator, off grid system,
10kw wind generator for farms,remote house, mines,villas,hotels,parks,some small industrial equippments etc, matched with solar panel, hybrid system,a constant and efficient power supply

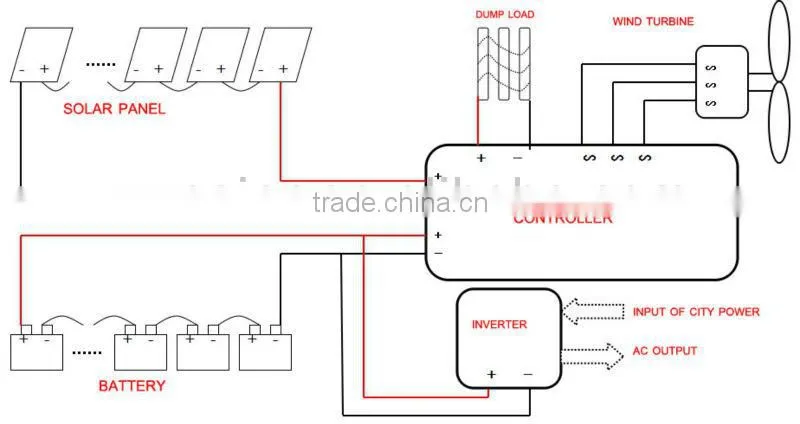

Wind Solar hybrid connetion diagram
