ac 2kw/2000w Permanent Magnetic Generator Wind Alternator

Name: ac 2kw/2000w Permanent Magnetic Generator Wind Alternator
Brand: NaiEr
SKU: 113303497
Availability: InStock

US$ 480 - 700 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

NaiEr

Model Number:

NE-2000

Jiangsu Naier Wind Power Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/ for your request

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name NaiEr

Model Number NE-2000

Type Wind Power Generator

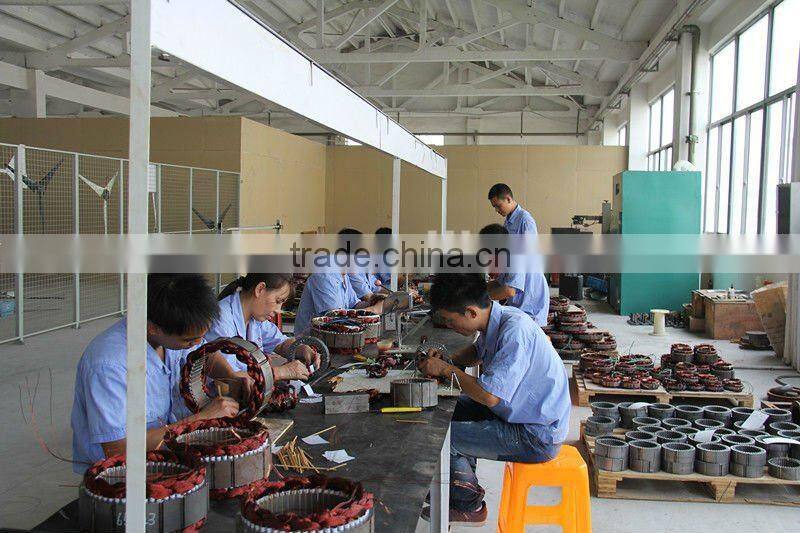

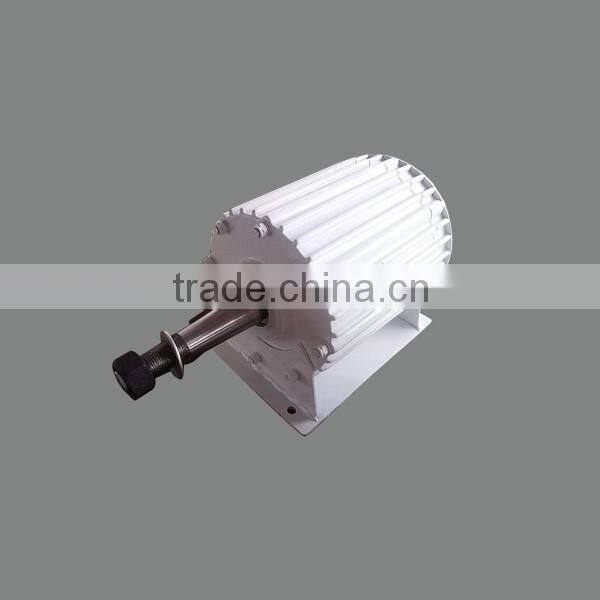

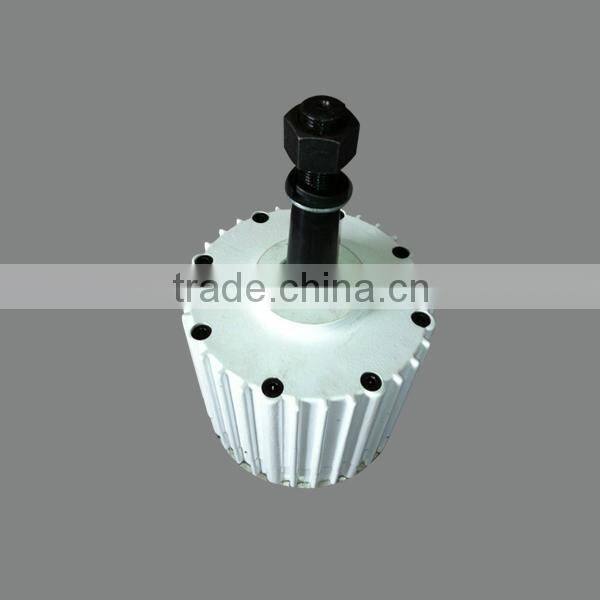

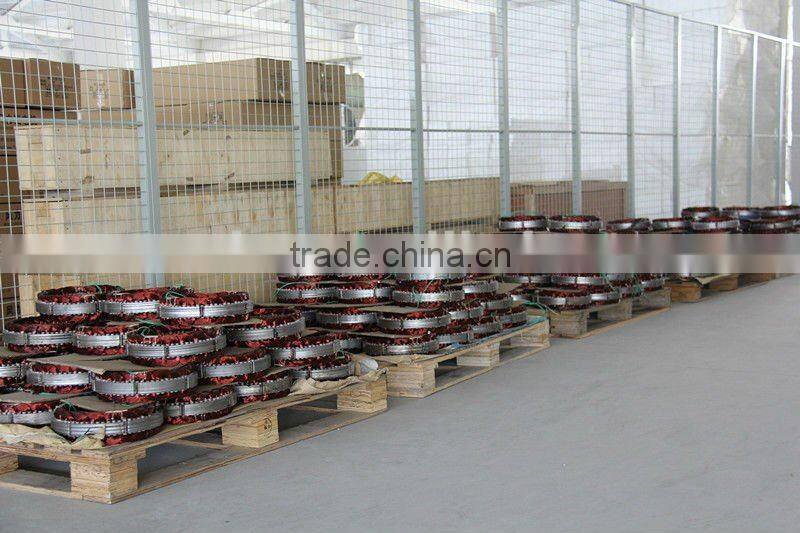

ac 2kw/2000w permanent magnetic generator wind alternator pictures:

we can provide you a base if you need:

ac 2kw/2000w permanent magnetic generator wind alternator Details:

ac 2kw/2000w permanent magnetic generator wind alternator Features:

1,Gearless, direct drive, low RPM generator

2. Small size and light weight: Its size and weight are 30% less than those of conventional generators.

3,Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.

4,permanent magnet generator rotor using patented alternator, together with the special stator design,

ac 2kw/2000w permanent magnetic generator wind alternator Tech Data:

Model	NE-2000
Rated Power(w)	2000w
Max Power(w)	2500w
Rated Voltage(v)	48v/96v/120v
Rated rotated speed(r/m)	500r/m
Top net weight(kg)	18kg
Output Current	AC
generator	3 phase permanent magnet synchronous generator
Insulation Class:	F
Bearing	HRB or for your order
Shaft Material	stainless steel
Shell Material	aluminium alloy
Permanent Magnet Material	Rare Earth NdFeB
Protection Grade	IP54
Lubrication	Lubrication Grease
Working temperature	-40℃ - 80 ℃
