ac synchronous 500w direct drive magnet alternator

FOB Price

USD $169 - $268 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	NaiEr
Model Number	NE-500P		Type	Wind Power Generator

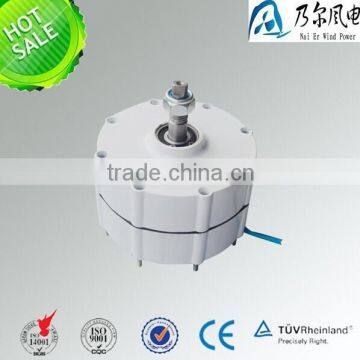

ac synchronous 500w direct drive magnet alternator pictures:

ac synchronous 500w direct drive magnet alternator details:

Rotor:

Stator and Coiling:

ac synchronous 500w direct drive magnet alternator Features:

1.Gearless, direct drive, low RPM generator

2. Small size and light weight: Its size and weight are 30% less than those of conventional generators.

3.Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.

4.permanent magnet generator rotor using patented alternator, together with the special stator design

ac synchronous 500w direct drive magnet alternator Tech Data:

Model	NE-500M2
Rated Power(w)	500w
Max Power(w)	536w
Rated Voltage(v)	12/24/48v
Rated rotated speed(r/m)	600r/m
Top net weight(kg)	6.1kg
Output Current	AC
generator	3 phase permanent magnet synchronous generator
Insulation Class:	F
Service Life:	More Than 20 years
Bearing	HRB or for your order
Shaft Material	stainless steel
Shell Material	aluminium alloy
Permanent Magnet Material	Rare Earth NdFeB
Protection Grade	IP54
Lubrication	Lubrication Grease
Working temperature	-40℃ - 80 ℃
