Home > Products > High Quality Wind Turbine Generator > 300w 12/24v Wind Generator for Marine Made in China
300w 12/24v Wind Generator for Marine Made in China
- Shanghai Port
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Naier | |
| Model Number | NE-300M | Type | Wind Power Generator |
Product Description
300w wind turbine parameters
Model | NE-300M |
Rated power | 300W |
Maximum power | 330W |
Rated voltage | 12/24/48V |
Start-up wind speed | 2.5m/s |
Rated wind speed | 10m/s |
Survival wind speed | 45m/s |
Top net weight | 11.5kg |
Wheel diameter | 1.6m |
Number of blades | 3 |
Blades material | Nylon fiber |
Generator type | Three phase permanent magnet AC synchronous generator |
Magnet material | NdFeB |
Generator case | Casting aluminum alloy |
Control system | Electromagnet/wind wheel yaw |
Speed regulation | Automatically adjust windward direction |
Working temperature | -40°C - 80°C |
Design life | 20 y |
Certificates | CE, ISO1401, ISO9001, TUV |
300w wind turbine features
1.Low start up speed, high wind energy utilization.
2.Easy installation, tube or flange connection optional.
3.Blades using new art of precision injection molding , matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.
4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely.
5.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
6.Controller, inverter can be matched according to customers’ specific needs.
300w wind turbine projects

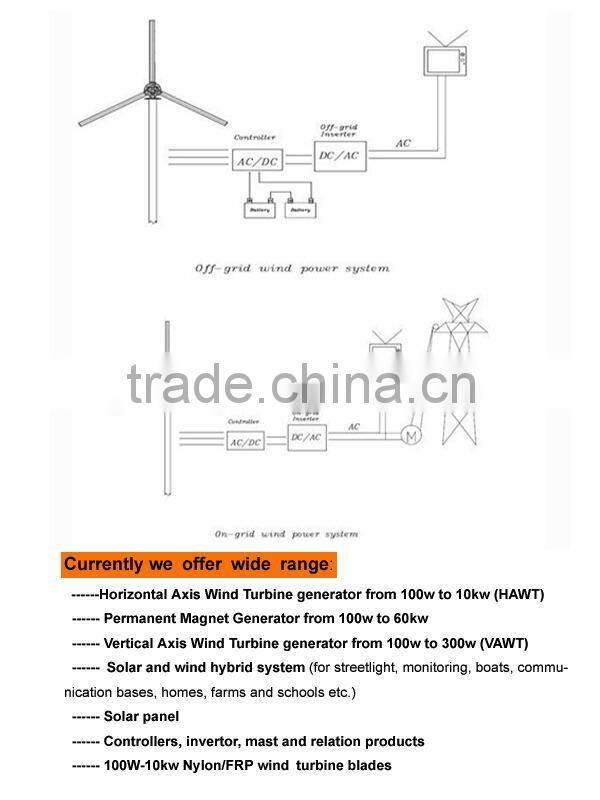

300w wind turbine system connection diagram
300w wind turbine packing
Certificates
Customers visiting show
Exhibition show
