5kw/10kw/15kw Low Rpm Alternator Wind Generator/home Turbine

Specifications

1.home turbine is compact, safe and stable with low vibration
2.high utilization with CE,
3.Easy installation and maintance

Wind generator details

Home turbine Features:

1.Carbon steel body, compact, safe

2.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.

3.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.

4.Tail adopts mechanical yaw technique, making it survive storm and run safely

5.With epoxy zinc rich primer and polyurethane anti-corrosion treatment,be ultraviolet-proof, acid rain resistant, salt resistant

6.Controller,inverter can be matched accroding to customers’ specific needs



Home Turbine Technical data



Model	NE-3k	NE-5k	NE-10k
Rated power	3kw	5kw	10kw
Maximun power	4kw	6kw	13kw
Rated voltage	96/120/220V	120/220/240v	220/240/380v
Start-up wind turbine	3m/s	3m/s	3m/s
Rated wind speed	10m/s	10m/s	10m/s
Survival wind turbine	45m/s	45m/s	45m/s
Top net weight	205kg	285kg	400kg
Wheel diameter	5.6m	6.3m	8.2m
Number of blades	3
Blades material	Reinforced glass fiber
generator	Three phase permanent magnet ac synchronous generator
magnet	NdFeB
Generator case	Carbon steel
Control system	Electromagnet/wind wheel yaw
Speed regulation	Tail furling
Working temperature	-40°C  -  80°C
Design life	20 y

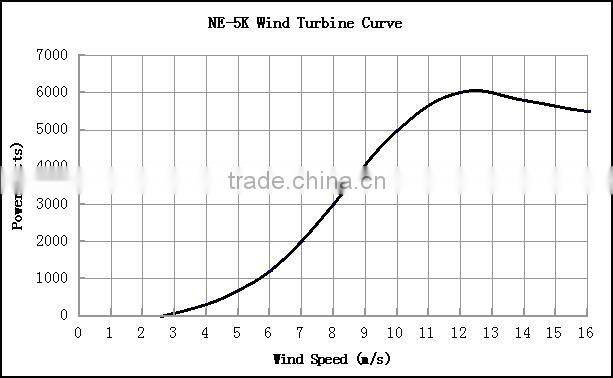

Home turbine Power curve





Payment Terms

1.100%T/T payment prepaid.

2.west union or  bank transfer .

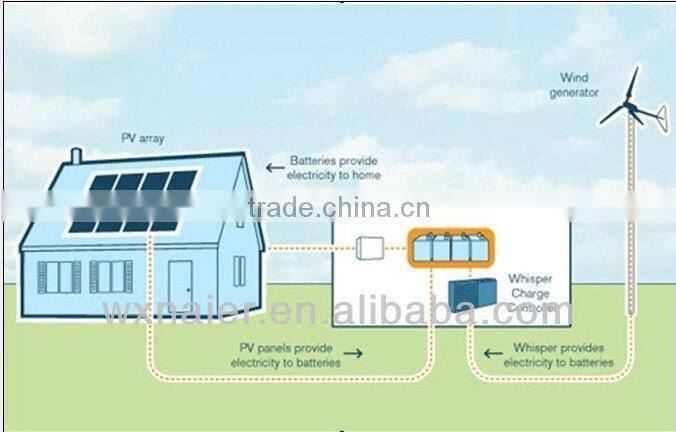

 We offer home use system

you need wind turbine+controller+battery+inverter+tower+wire
