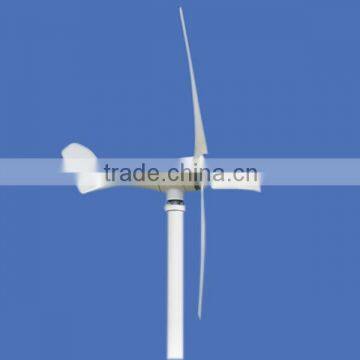

small turbine generator details:
small turbine generator Parameter:
Model | NE-400M2 |
Rated power | 400W |
Maximum power | 430W |
Rated voltage | 12/24/48V |
Start-up wind speed | 2.5m/s |
Rated wind speed | 10m/s |
Survival wind speed | 45m/s |
Top net weight | 14.5kg |
Wheel diameter | 1.75m |
Number of blades | 3 |
Blades material | Nylon fiber |
Generator type | Three phase permanent magnet AC synchronous generator |
Magnet material | NdFeB |
Generator case | Casting aluminum alloy |
Control system | Electromagnet/wind wheel yaw |
Speed regulation | Automatically adjust windward direction |
Working temperature | -40°C - 80°C |
Design life | 20 y |
Certificates | CE, ISO14001,ISO 9001, TUV |
small turbine generator Features:
1.Low start up speed, high wind energy utilization.
2.Easy installation, tube or flange connection optional.
3.New art of precision injection molding blades.
4.Body of casting aluminum alloy, with 2 bearings swivel.
5.Patented permanent magnet ac generator with special stator,effectively reduce torque.
Applications:
wind power generator system :
We also could offer products as below:
Certifications:
Package:
Clients Visiting:
Exihibitions:
Send Inquiry to This Supplier
