1. Performance Description
² Reliability:Intelligentized, modularized, simple structure design with powerful function and stable performance; the high-quality components and the strict production process make the inverter suitable for severe environment. It also has reliable performance and long lifespan.
² Pure Sine Wave Output: Compared with square wave and modified sine wave, the inverter has stronger load capacity. The apparatus can drive inductive load and any other AC load within the required power.
² LCD Display: The LCD display battery voltage, AC output voltage and status parameters. (Remark: If inverter output capacity ≤1kVA, AC output voltage will not display )
² High Efficiency Transformer Isolation: Power frequency toroidal transformer, which ensures high efficiency and low no-load loss of the inverter.
² Perfect Protection Function: Battery over voltage, over discharge, anti-reverse protection; output over load, short circuit, over temperature protection; lightning protection etc.
² Optional by-pass function: When the battery is over discharge, the inverter will intelligently switch to Utility grid to drive load.
² Optional light control and time control function: According to illumination intensity, the inverter can control output without manual operation. This function is available with our matched controller.

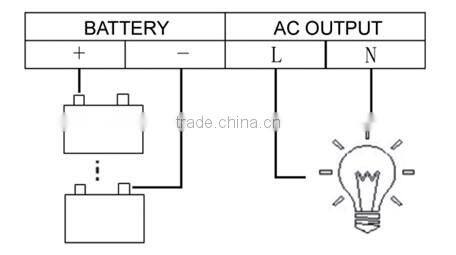

1. Installation Flow
Product Model |
WI10-48-3N01 |
Rated Output Capacity |
1kVA |
Rated Battery Voltage |
48VDC |
Over Voltage Shutoff |
68VDC |
Over Voltage Recovery |
66VDC |
Under Voltage Shutoff |
43.2VDC |
Under Voltage Recovery |
48VDC |
No-load Loss |
≤0.5A |
Output Wave |
Pure sine Wave |
Display Mode |
LCD |
Cooling |
Fan |
Rated Output Voltage |
220VAC |
Wave Distortion |
≤4% |
Output Frequency |
50±0.5Hz |
Dynamic Response |
5% |
Power Factor |
≥0.8 |
Over-load Capacity |
120% 1min,150% 10s |
Invert Efficiency |
90% Max |
Isolating Mode |
Toroidal Transformer |
Noise (1m) |
≤40dB |
Insulating Strength |
1500VAC,1min |
Protection Functions |
Input over voltage protection, Battery under voltage protection, Battery anti-reverse connection protection, Output overload protection, Output short circuit protection, Over temperature protection. |
Ambient Temperature |
-20~+55℃ |
Working Altitude |
≤4000m |
Ambient Humidity |
0~90%,Without Condensation |
Dimensions (Lx W x H) |
402×163×202mm |
Net Weight |
12kg |
In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement. | |
