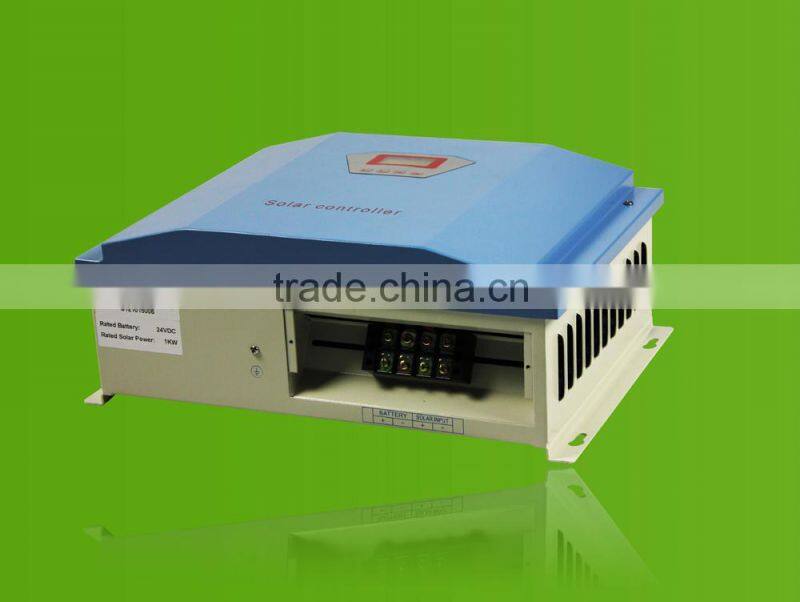

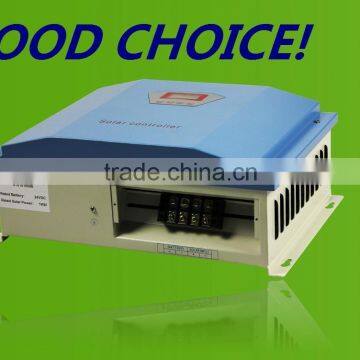

Hot Sale 1000W Solar Charge Controller Picture Show
Hot Sale 1000W Solar Charge Controller PRODUCT INTRODUCTION
Solar controller is control device which can control solar panel and transform solar energy into electricity then store to the battery bank. Solar controller is the most important part in off-grid system, whose performance has much effect on life expectancy and operation of the whole system, especially the battery expectancy. Or battery service life will be shortened by over charge or over discharge.

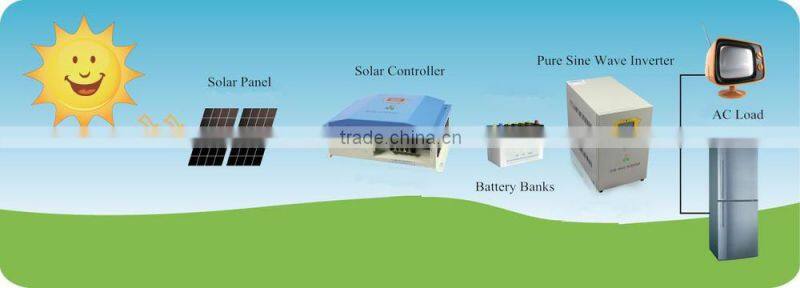

Hot Sale 1000W Solar Charge Controller SYSTEM DRAWING
Hot Sale 1000W Solar Charge Controller APPLICATION AREAS
1. Standalone Photovoltaic power station
2. Standalone Domestic household photovoltaic power system
3. Mobil communication base stations, expressway and other non-residential regions.
4. Coastal islands, remote mountainous, border posts for regions shortage of or without electricity.
5. Government demonstration projects, landscape lighting project etc.
Hot Sale 1000W Solar Charge Controller TECHNICAL PARAMETERS
Product Model | WS10-24-N00 |
Rated battery power | 24V |
Rated solar input power | 1 kW |
Floating charge voltage | 29V |
Max Open Circuit Voltage | 50V |
Dimensions (L x W x H) | 442×307×172 mm |
Net Weight | 7kg |
Display mode | LCD |
Cooling | Fan |
Protection Level | IP20(Indoor) |
Quiescent current | ≤20 mA |
Protection functions | Battery over charge; battery anti-reverse-connection; solar reverse charge protection; solar anti-reverse-connection; lightning protection. |
Ambient temperature | -20~+55℃ |
Ambient humidity | 0~93%, without condensing |
Working altitude | ≤4000m |

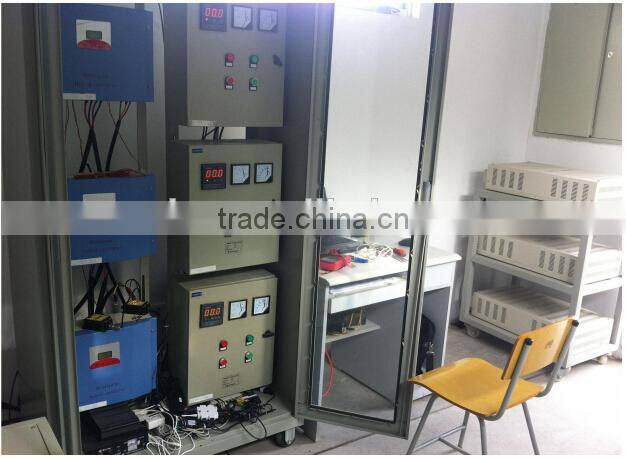

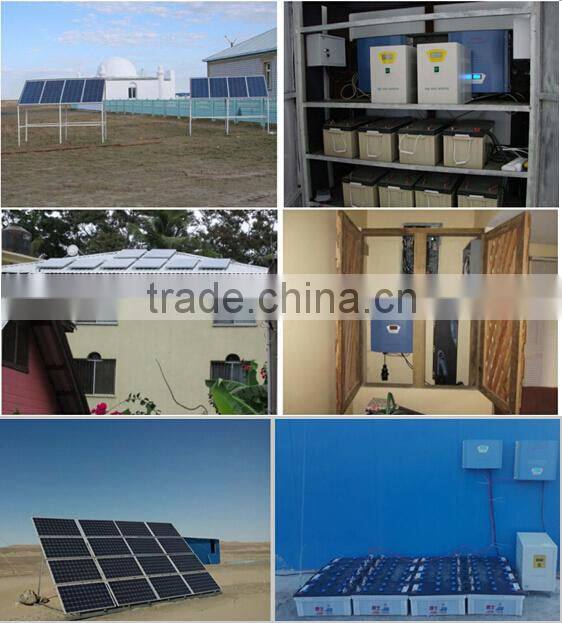

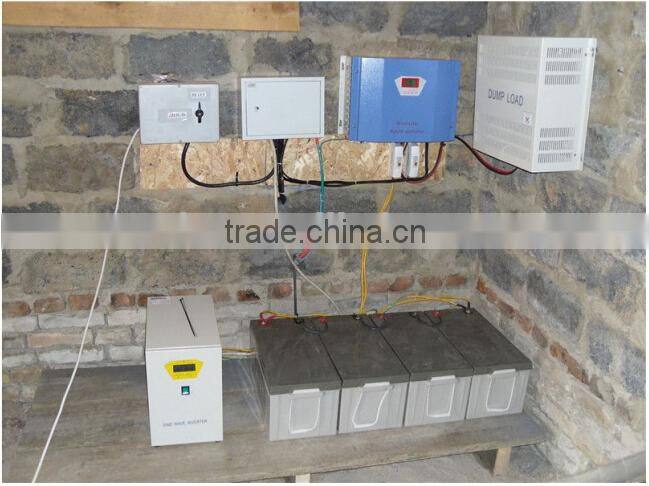

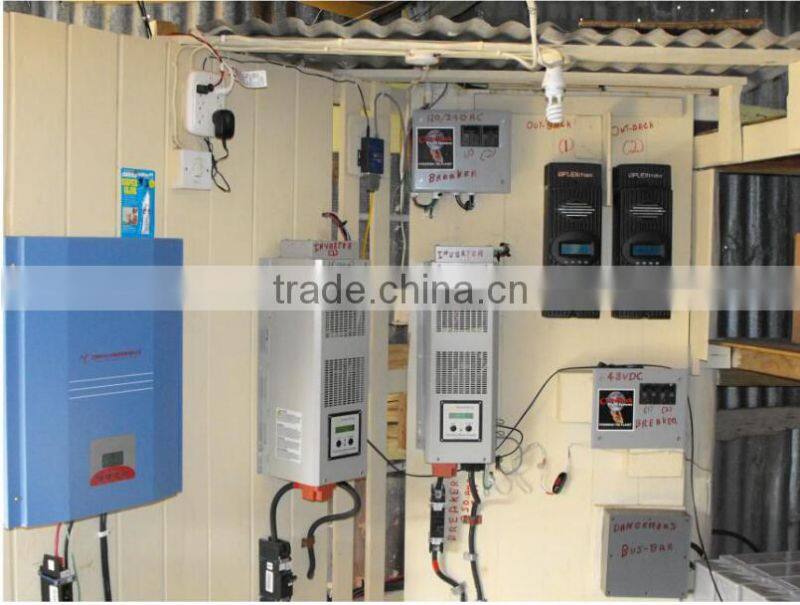

Hot Sale 1000W Solar Charge Controller Successful Cases
We are the manufacturer directly, so we can supply professional guide and service for you. Trust us.
