600w Wind Solar Hybrid Controller With MPPT Function LCD Display

Jiangsu Naier Wind Power Technology Development Co., Ltd.
600w Wind Solar Hybrid Controller With MPPT Function LCD Display thumbnail-1
600w Wind Solar Hybrid Controller With MPPT Function LCD Display photo-1
US$ 80 - 250 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Naier
Model Number:
NE06-24-N00D
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Naier
Model Number NE06-24-N00D
Output Voltage 24v
Type Other, AC/DC controller
Output Frequency 50HZ

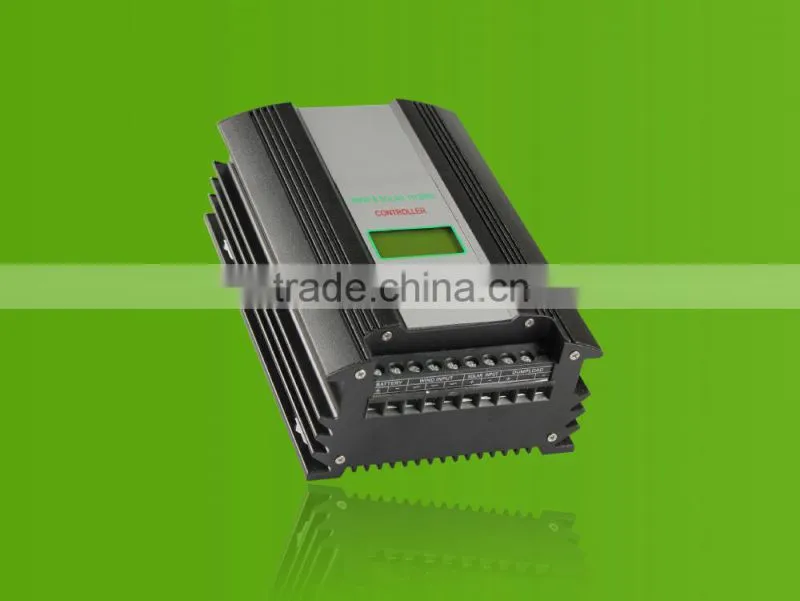

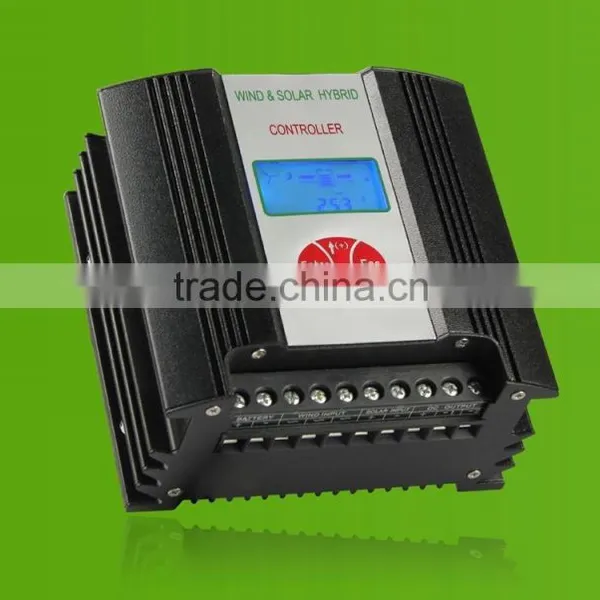

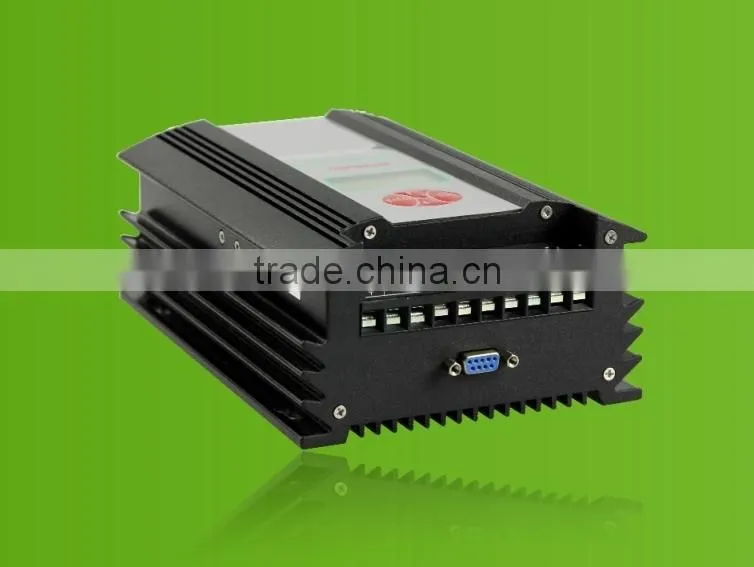

600w wind solar hybrid controller with MPPT function LCD display Pictures:



600w wind solar hybrid controller with MPPT function LCD display





 600w wind solar hybrid controller with MPPT function LCD display





600w wind solar hybrid controller with MPPT function LCD display Technical Data:



Product Model

NE06-24-N00D

Rated battery voltage

24V

Rated wind turbine input power

600W

Maximum wind turbine input power

900W

Rated solar input power

300W

Dumpload Start Voltage

27V

Charge Shutoff Voltage

29V

Wind Turbine Brake Current

30A

Battery Under Voltage Shutoff

21.6V

Battery Under Voltage Recovery

24V

Input Over Voltage Shutoff

32V

Light Control On Voltage

2V

Light Control Off Voltage

3V

Rated Output Current of Load 1 and Load 2

10A

Load 1 Output Control Mode

Light Control On and Light Control Off

Load 2 Output Control Mode

Light Control On and Time Control 5 Hours Off

Dumpload Control Mode

PWM

Display Mode

LCD

Protection Level

IP53(Indoor)

Quiescent Current

≤20mA

Display Content

Battery Voltage, Wind Turbine Voltage, PV Voltage, Wind Turbine Current, PV Current, Wind Turbine Power, PV Power, Over Voltage, Under Voltage, Over Load, Short Circuit, Night etc status

Protection Functions

Solar reverse charge protection , Solar reverse connection protection,

Battery over charge protection, Battery over discharge protection,

Battery reverse connection protection, Over load protection, Short circuit protection, Lightning protection

Wind turbine current limiting, Wind turbine automatic brake and manual brake.

Ambient Temperature

-20~+55℃

Ambient Humidity

0~93%, without condensing

Working Altitude

≤4000m





600w wind solar hybrid controller with MPPT function LCD display Performance Features:

²        Superior military-grade components to ensure the product stability.

²        Superior military-grade components to ensure the product stability.

²        Check and set all operation parameters as requirement from LCD display.

²        Voltage limiting and current limiting charge mode ensures battery in the best charging status.

²        Two DC Load output, light control, time control, constant output, and multiple output control mode selections.

²        PWM stepless dumpload mode, which release the excess power into dump load, making the battery charging in best status.

²        Design of high quality aluminum alloy appearance, with small size and good cooling effect.



600w wind solar hybrid controller with MPPT function LCD display Application Fields:



²        Stand alone wind/solar hybrid power station.

²        Stand alone domestic household wind/solar hybrid power system.

²        Mobile Communication base stations, expressway and other non-residential regions.

²        Coastal islands, remote mountainous, border posts for regions shortage of or without electricity.

²        Government demonstration projects, landscape lighting project, street light project etc.

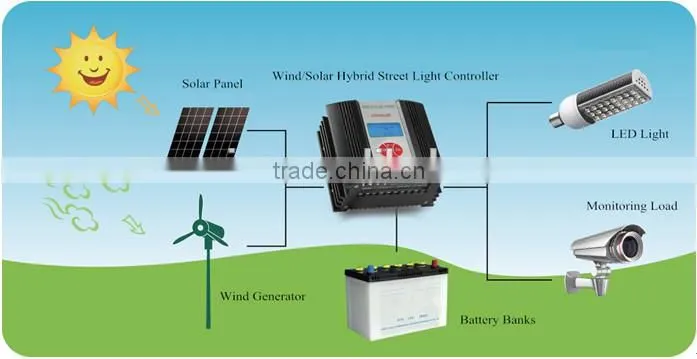

600w wind solar hybrid controller with MPPT function LCD display System Drawing:

600w wind solar hybrid controller with MPPT function LCD display
