Home > Manufacturing & Processing Machinery > Feeder > Vibrating Feeder > Low Price Good Quality Mineral Processing Vibrating Feeder Equipment

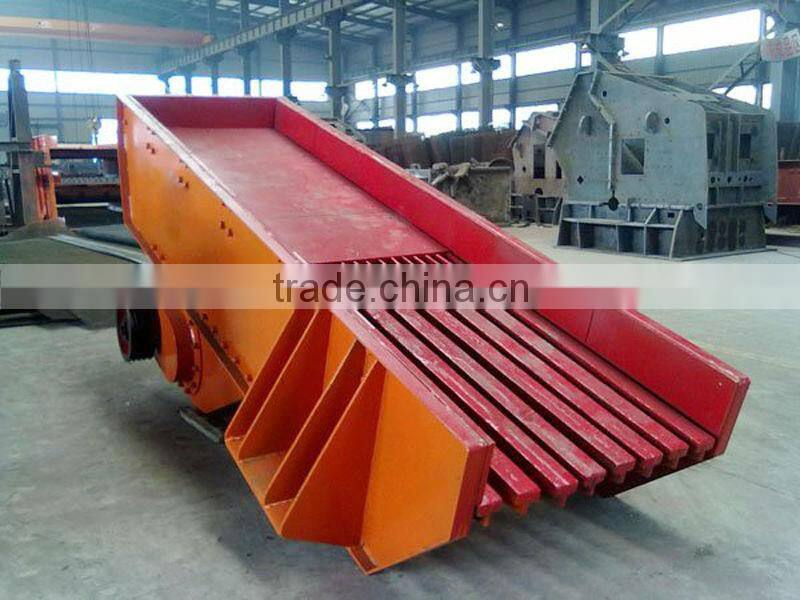

Low Price Good Quality Mineral Processing Vibrating Feeder Equipment

Low Price Good Quality Mineral Processing Vibrating Feeder Equipment thumbnail-1
Low Price Good Quality Mineral Processing Vibrating Feeder Equipment photo-1
US$ 1,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Metallurgy; Coal ore; Construction materials .
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Henan Libo Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai; Tianjin; Qingdao.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Metallurgy; Coal ore; Construction materials .
Power Type Electric
Capacity(t/h) 120-210 t/h, 120-210
Place of Origin Henan, China
Brand Name LiBo
Model Number GZD-960*3800
Power(W) 11 kw
Dimension(L*W*H) 3850*1950*1630 ( mm )
Weight 3980 kg
Certification ISO 9001:2000
Warranty One year .
After-sales Service Provided Engineers available to service machinery overseas

Specifications

vibrating feeder equipment
1. High efficiency
2. New designed
3. Low price.
4. Capacity(t/h): 120-210

Low Price Vibrating Feeder Equipment





 ♥ Usage and application of vibrating feeder equipment :



1). Vibrator feeder also called the vibrating feeder, Vibrating feeder in the process of production,can the massive, granular materials from the storage bin evenly, timing, and continuously give into the device, can be broken in the sand and gravel production line continuous evenly feed machinery, and carries on the coarse screening for material.



2).Vibrating feeder widely used in metallurgy, coal mine, dressing, building materials, chemical, abrasive and other industries crushing and screening combination equipment.



♥ Features of vibrating feeder equipment :

 low price good quality mineral processing vibrating feeder equipment

1). Simple structure, and uniform feeding, continuous performance is good, exciting force can be adjusted.



2). Always change and control flow, convenient operation; Eccentric block as the excitation source, low noise, less consumption,good regulation performance, no flow phenomenon; If the enclosed body can prevent dust pollution smooth vibration, reliable operation, long service life.



3). Can adjust vibration force, can change at any time and control flow, convenient adjustment and stable.



4).Vibration motor as vibration source, low noise, small power consumption,good regulation performance,no flow phenomenon.

5). Reliable operation, adjustment convenient installation, light weight, small volume, convenient maintenance.



6). When using closed structure fuselage can prevent dust pollution. Vibrating feeder has simple structure,convenient operation, without RunHua, small power consumption.



7). Can adjust the volume of feed evenly; Therefore has been widely used.



♥ Working priciple of vibrating feeder equipment :



 low price good quality mineral processing vibrating feeder equipment

Vibrating feeder is to use the vibrator in the centrifugal force produced by the rotation of eccentric block, cause the sieve, vibrators and other moving parts as the compulsory or approximate the continuous circular movement. Vibrating feeder is composed of feeding tub, vibrator, spring bearing, gear, etc. Tank vibration feeding solutions of vibration source is vibrator, vibrator is made up of two eccentric shaft (master, passive) and gears, drive shaft, driven by a motor through the triangle again by gear meshing driven shaft rotation on the drive shaft, the main, driven shaft rotate reverse at the same time, make the tub vibration, a continuous flow of material, to achieve the purpose of conveying material.



♥ Main technical parameters of vibrating feeder equipment :



Model

Hopper size(mm)

The Max feed particle size (mm)

Production (t/h)

Power (kw)

Weight (t)

Overall dimension (mm)

GZD-850×3000

850×3000

400

80-120

7.5

3895

3110×1800×1600

GZD-960×3800

960×3800

500

120-210

11

3980

3850×1950×1630

GZD-1100×4200

1100×4200

580

200-430

15

4170

4400×2050×1660

GZD-1100×4900

1100×4900

580

280-500

15

4520

5200×2050×1700

GZD-1300×4900

1300×4900

650

450-600

22

5200

5200×2350×1750



low price good quality mineral processing vibrating feeder equipmentlow price good quality mineral processing vibrating feeder equipmentlow price good quality mineral processing vibrating feeder equipmentlow price good quality mineral processing vibrating feeder equipment

low price good quality mineral processing vibrating feeder equipmentlow price good quality mineral processing vibrating feeder equipmentlow price good quality mineral processing vibrating feeder equipmentlow price good quality mineral processing vibrating feeder equipment

low price good quality mineral processing vibrating feeder equipment

low price good quality mineral processing vibrating feeder equipment
