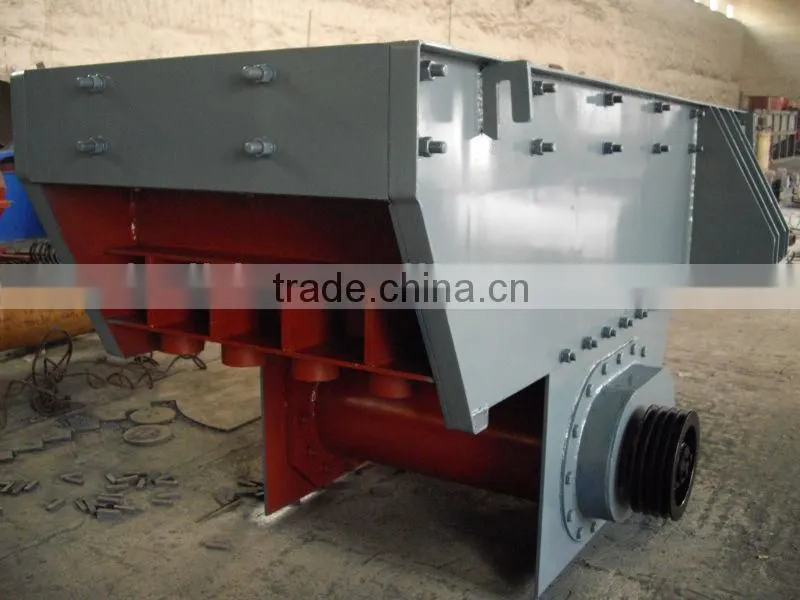

Help CenterNew Feeding Machine GZD-1100*4900 Small Gzd Vibrating Feeder
Related Products
-
New Feeding Machine GZD-1100*4200 Small Vibrator FeederUS$ 2,000 - 50,000MOQ: 1 Set -
New Feeding Machine GZD-1100*4200 Small Chute Feeder MachineUS$ 2,000 - 50,000MOQ: 1 Set
-
New Feeding Machine GZD-1100*4200 Small Vibrating Feeder Vibration FeederUS$ 2,000 - 50,000MOQ: 1 Set
-
New Feeding Machine GZD-1100*4200 Small Bowl FeederUS$ 1,000 - 50,000MOQ: 1 Set
-
New Feeding Machine GZD-1100*4200 Small Vibro FeederUS$ 1,000 - 50,000MOQ: 1 Set
Specifications
1.100% new and low price2.high capacity:280-500t/h
3.max feeding size:580mm
4.size of funnel:1100*4900mm
5.motor power:15kw

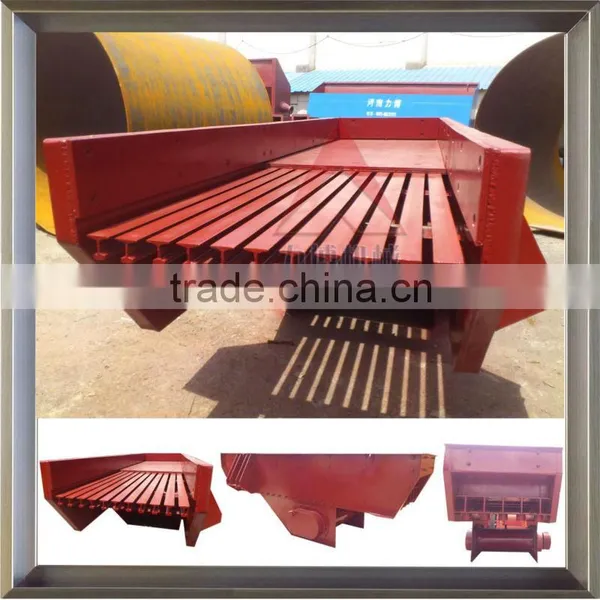

gzd Vibrating Feeder
Vibrating Feeder Application
GZD series vibrating feeder has been designed to handle materials from small lumps to large lumps in extremely wide fields, such as aggregate, cement and mining industry etc.
Vibrating feeder is not only able to provide constant material feed, but also prevent other things such as soils from entering into crusher to increase the processing capacity of crusher.
Vibrating feeder is usually applied before primary crusher and could easily adjust feed quantity by variable speed motor.
Vibrating Feeder Operating Principle
Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged.
When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached
Main Technical Parameter
| Type | Size of Funnel(mm) | Max Feed Size(mm) | Capacity(t/h) | Power(kw) | Weight(kg) | Overall Dimension(mm) |
| GZD-850×3000 | 850×3000 | 400 | 80-120 | 7.5 | 3898 | 3110×1800×1600 |
| GZD-960×3800 | 960×3800 | 500 | 120-210 | 11 | 3980 | 3850×1950×1630 |
| GZD- 1100×4200 | 1100×4200 | 580 | 200-430 | 15 | 4170 | 4400×2050×1660 |
| GZD- 1100×4900 | 1100×4900 | 580 | 280-500 | 15 | 4520 | 5200×2050×1700 |
| GZD- 1300×4900 | 1300×4900 | 650 | 450-600 | 22 | 5200 | 5200×2350×1750 |
If you are interested in any products of our company, pls contact us and we will give you more information. Have a nice day!
