Specifications
Vibratory Feeder1 Professional Manufacturer
2 High quality,lower price
3 Timely Delivery
4 Simple structure

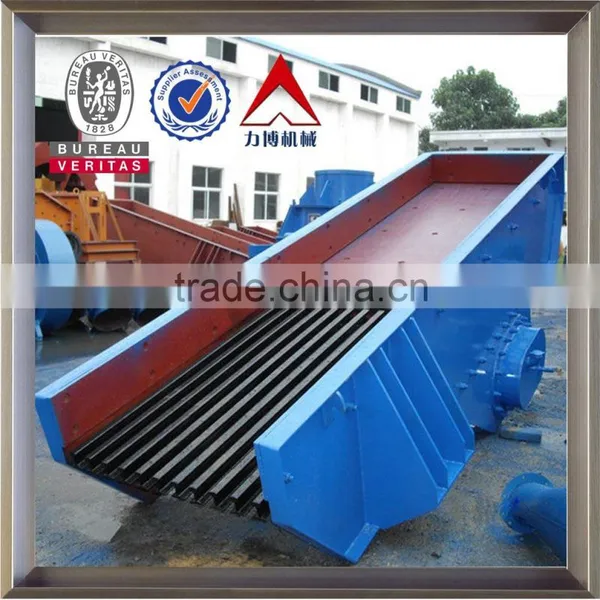

Vibratory Feeder
Vbratory feeder is an instrument that uses vibration to "feed" material to a process or machine. Vibrating feeders use both vibration and gravity to move material. Gravity is used to determine the direction, either down, or down and to a side, and then vibration is used to move the material. They are mainly used to transport a large number of smaller objects.
Vibratory Feeder Features and Benefits
- Stable and long span life
- Easy to adjust
- Reliable operation
- Easy maintenance
- No pollution
Vibratory Feeder Working Principle
Vibratory feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the further crushing, so screening purpose can be reached.
Main Technical Parameter
| Type | Size of Funnel(mm) | Max Feed Size(mm) | Capacity(t/h) | Power(kw) | Weight(kg) | Overall Dimension(mm) |
| GZD-850×3000 | 850×3000 | 400 | 80-120 | 7.5 | 3898 | 3110×1800×1600 |
| GZD-960×3800 | 960×3800 | 500 | 120-210 | 11 | 3980 | 3850×1950×1630 |
| GZD- 1100×4200 | 1100×4200 | 580 | 200-430 | 15 | 4170 | 4400×2050×1660 |
| GZD- 1100×4900 | 1100×4900 | 580 | 280-500 | 15 | 4520 | 5200×2050×1700 |
| GZD- 1300×4900 | 1300×4900 | 650 | 450-600 | 22 | 5200 | 5200×2350×1750 |
If you are interested in any products of our company, pls contact us and we will give you more information. Have a nice day!
If you intersted or have some questions in our product, please don't hesitate tell me.We will do our best to help you.
Skype: zerozzed
Wechat: b0b0b0
QQ: 2816737070
Mobile phone: +86 13526691930
