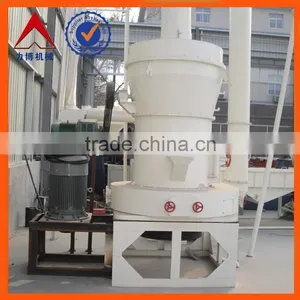

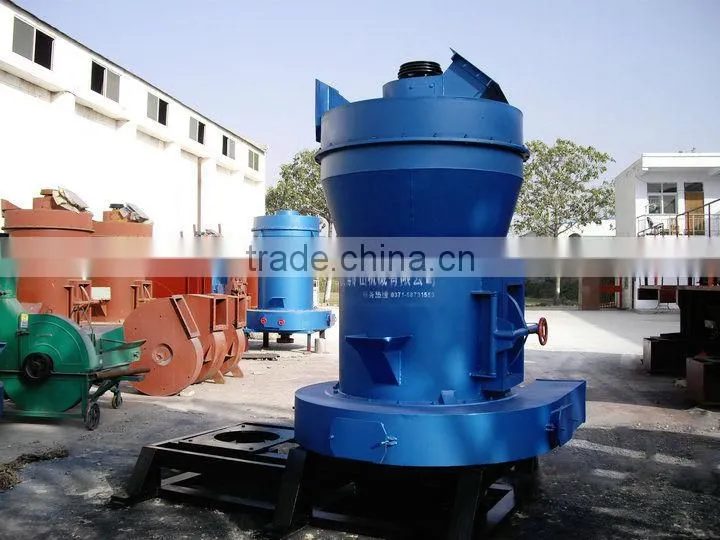

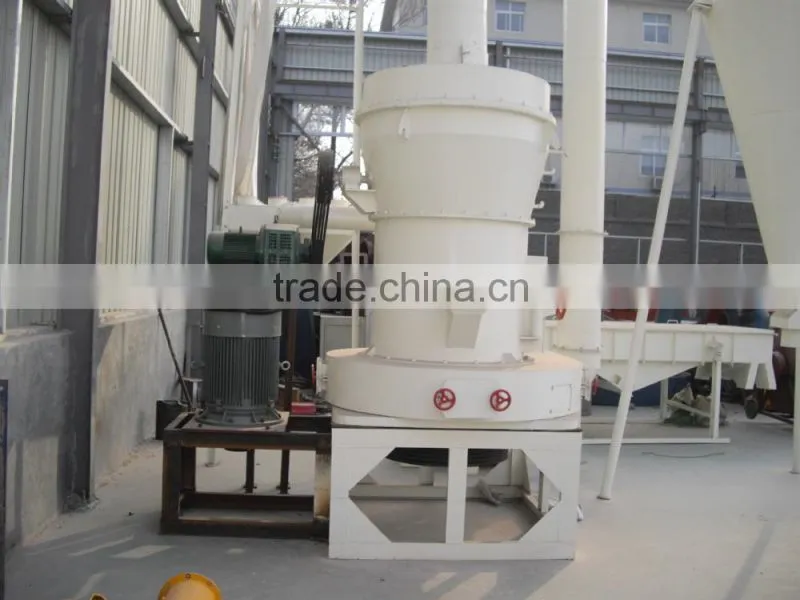

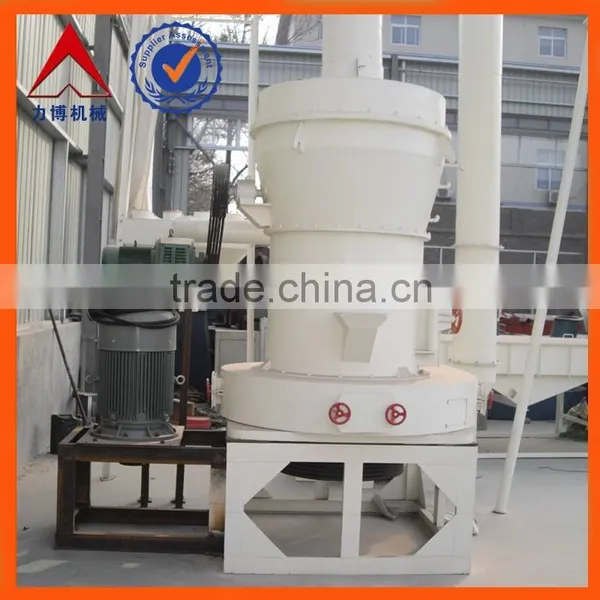

ygm75 grinding mill
♥ The applications of ygm75 grinding mill :
1). Henan libo mining machinery co., ltd has decades of flour milling equipment production experience,our company's flagship product, Raymond mill, Raymond mill, also known as Raymond mill. Is a new type can be instead of the ball mill, high efficiency, high fine pulverizing equipment adopts closed cycle.
2). ygm75 grinding mill can grinding feldspar, calcite, talc, barite, fluorite, rare earth, marble, ceramic, bauxite, manganese ore, iron ore, copper ore, phosphate rock, iron oxide red, zircon sand, slag, water slag, cement clinker, activated carbon, dolomite, granite, garnet, iron oxide yellow, bean cake, fertilizer, fly ash, coal, coking coal, lignite, ling mei sand, chrome oxide green, gold, red mud, clay, kaolin, violet arenaceous stone, falling rocks, China clay,;Cyanite, fluorite, gypsum, graphite, silicon carbide, such as thermal insulation material mohs hardness is not greater than magnitude 7, humidity in 6% of all kinds of inflammable and explosive mineral chemical industry, building materials more than 280 kinds of materials such as high fine milling processing, finished product size adjusted within the range 80-325 mesh, part of the material up to 500 mesh.g industries. It could carry out dry and wet millings on different materials.
♥ The structure of ygm75 grinding mill :

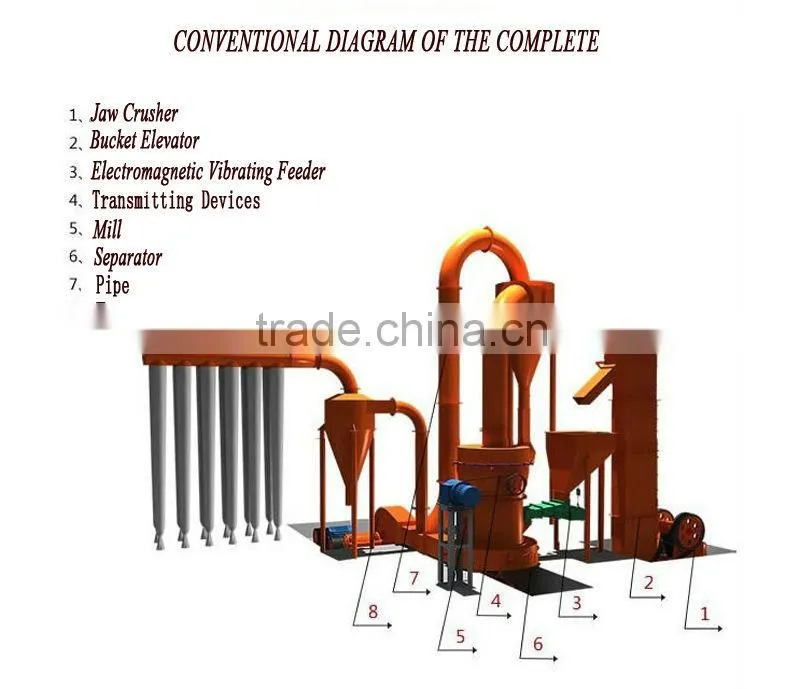

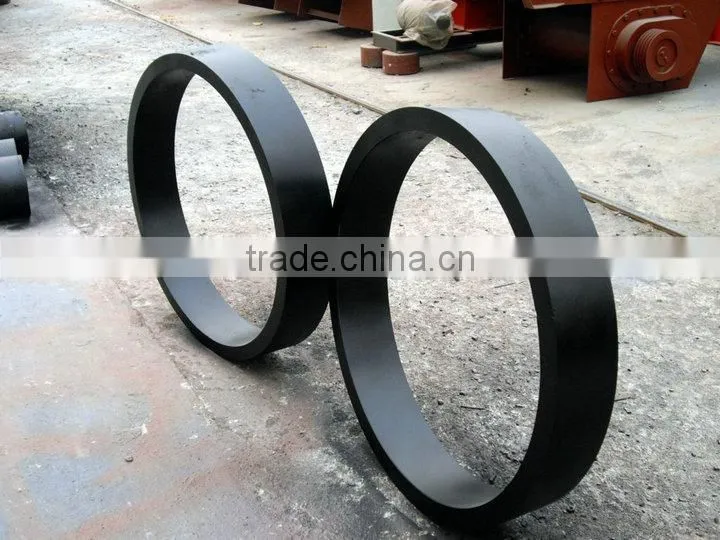

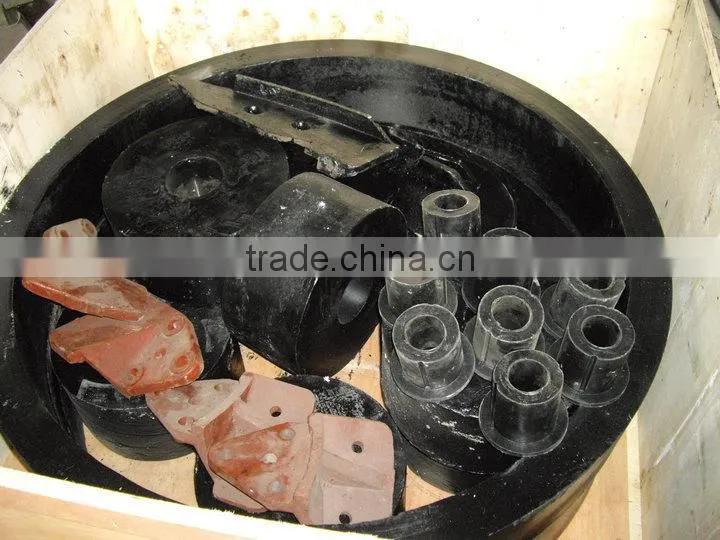

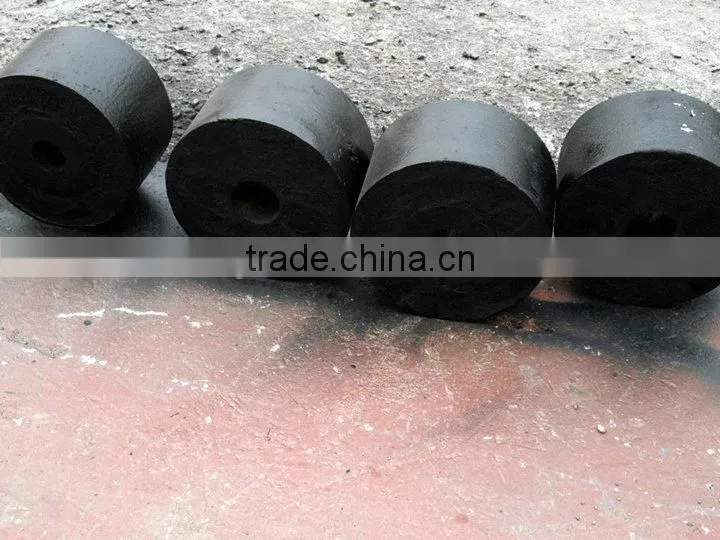

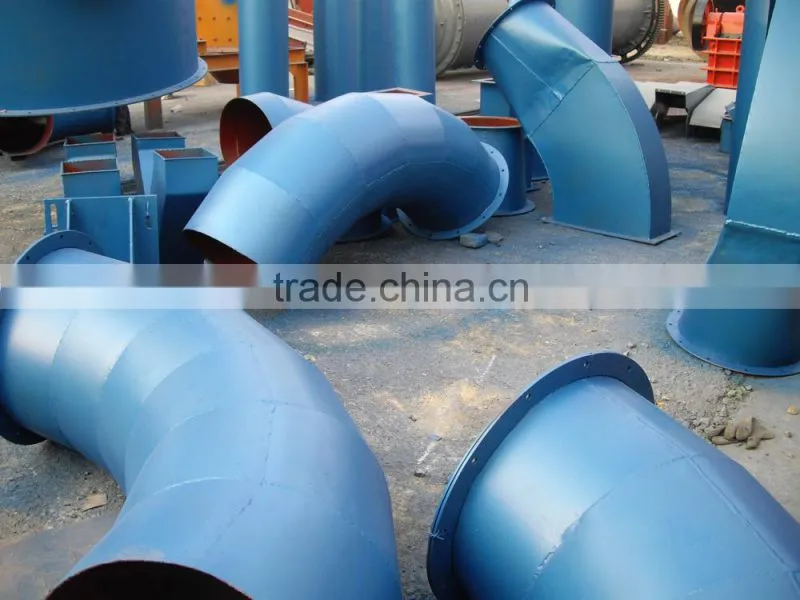

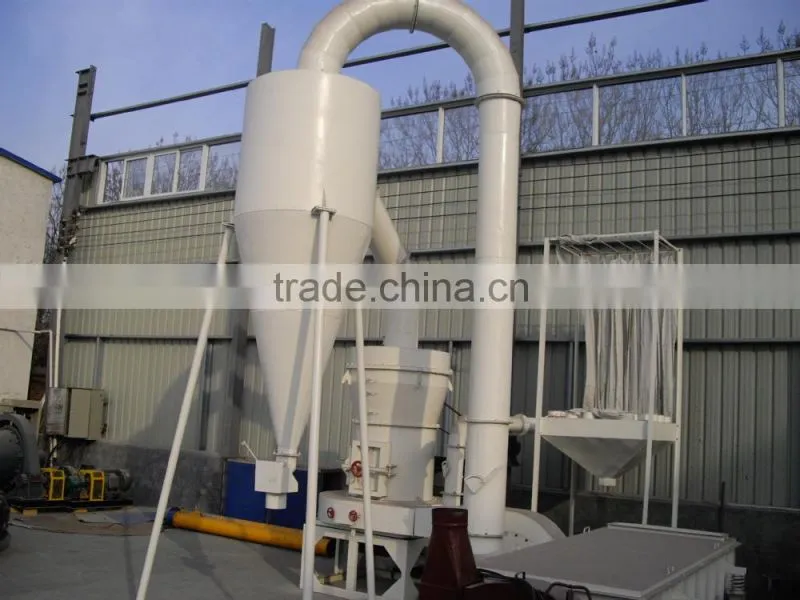

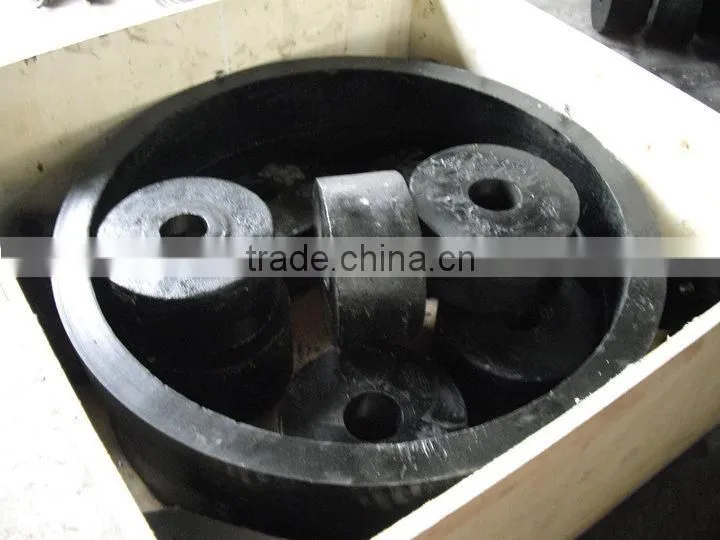

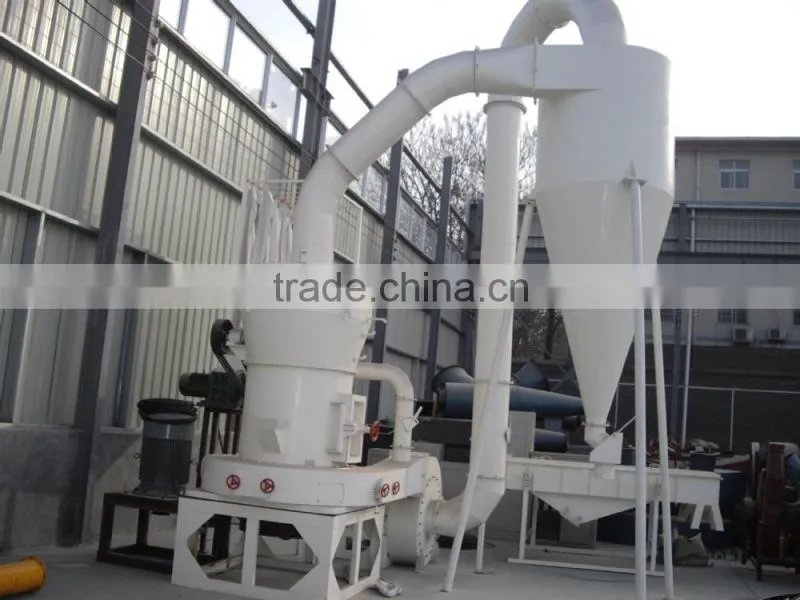

The ygm75 grinding mill structure is mainly composed of host, analyzer, fan, cyclone separator and finishing products, powder of cyclone separator and duct.Among them, the host by the volute, shovel knife, frame, ventilation of grinding roller and grinding ring, housings.
♥ The features of ygm75 grinding mill :
| Model | Roller number (piece) | Roller size (R*H) (mm) | Ring inside diameter and height (mm) |
Max.feed size (mm) |
Fineness of product (mm) |
Capacity (t/h) |
Mainframe power (kw) |
Weight (t) |
Overall dimension(mm) |
| YGM65 | 3 | 210*150 | 630*150 | 15 | 0.163-0.033 | 0.4-1.8 | 15 | 3.8 | 4100*3300*4500 |
| YGM75 | 3 | 260*150 | 780*150 | 15 | 0.163-0.033 | 1-3 | 18.5 | 4.8 | 4300*3500*5100 |
| YGM85 | 3 | 270*140 | 830*150 | 20 | 0.163-0.033 | 1.2-4 | 22 | 8.5 | 5300*4100*5200 |
| YGM95 | 4 | 310*170 | 950*170 | 25 | 0.2-0.044 | 2.1-5.6 | 37 | 16 | 7100*5900*7900 |
| YGM130 | 5 | 410*210 | 1280*210 | 30 | 0.163-0.033 | 2.5-9.5 | 75 | 25.7 |
7900*8000*9700 |
