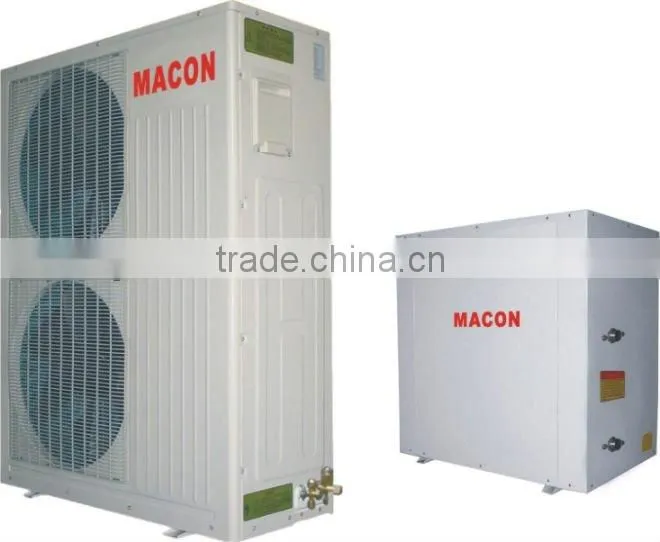

New design EVI DC Inverter low temp. heat pump water heater/chiller
| INDOOR UNIT | MACHRW | 040W/(BE01) | 050W/(BE01) | 040W/S(BE01) | 050W/S(BE01) | 060W/S(BE01) |
| OUTDOOR UNIT | MAFP | 040A | 050A | 040A | 050A | 060A |
| Rated Cooling Capacity | kW | 10.0 | 12.5 | 10.0 | 12.5 | 15.0 |
| BTU/h | 34200 | 42700 | 34200 | 42700 | 51200 | |
| Rated Input Power(Cooling) | kW | 3.13 | 3.91 | 3.13 | 3.91 | 4.69 |
| Rated Input Current(Cooling) | A | 14.2 | 17.8 | 8.2 | 10.3 | 7.1 |
| Rated Heating Capacity(A7/W35) | kW | 12.0 | 15.0 | 12.0 | 15.0 | 18.0 |
| BTU/h | 41000 | 51200 | 41000 | 51200 | 61500 | |
| COP(A7/W35) | 4.35 | 4.30 | 4.25 | 4.25 | 4.20 | |
| Rated Input Power(Heating)(A7/W35) | kW | 2.76 | 3.49 | 2.82 | 3.53 | 4.29 |
| Rated Input Current(Heating)(A7/W35) | A | 12.5 | 15.9 | 7.4 | 9.3 | 6.5 |
| Rated Heating Capacity(A2/W35) | kW | 12.0 | 15.0 | 12.0 | 15.0 | 18.0 |
| BTU/h | 41000 | 51200 | 41000 | 51200 | 61500 | |
| COP(A2/W35) | 3.45 | 3.40 | 3.45 | 3.40 | 3.35 | |
| Rated Input Power(Heating)(A2/W35) | kW | 3.48 | 4.41 | 3.48 | 4.41 | 5.37 |
| Rated Input Current(Heating)(A2/W35) | A | 15.8 | 20.1 | 9.1 | 11.6 | 8.2 |
| Rated Heating Capacity(A-7/W35) | kW | 12.0 | 15.0 | 12.0 | 15.0 | 18.0 |
| BTU/h | 41000 | 51200 | 41000 | 51200 | 61500 | |
| COP(A-7/W35) | 2.80 | 2.75 | 2.80 | 2.70 | 2.65 | |
| Rated Input Power(Heating)(A-7/W35) | kW | 4.29 | 5.45 | 4.29 | 5.56 | 6.79 |
| Rated Input Current(Heating)(A-7/W35) | A | 19.5 | 24.8 | 11.2 | 14.6 | 10.3 |
| Rated Heating Capacity(A7/W45) | kW | 12.0 | 15.0 | 12.0 | 15.0 | 18.0 |
| BTU/h | 41000 | 51200 | 41000 | 51200 | 61500 | |
| COP(A7/W45) | 3.60 | 3.60 | 3.60 | 3.60 | 3.60 | |
| Rated Input Power(Heating)(A7/W45) | kW | 3.33 | 4.17 | 3.33 | 4.17 | 5.00 |
| Rated Input Current(Heating)(A7/W45) | A | 15.2 | 18.9 | 8.7 | 10.9 | 7.6 |
| Rated Heating Capacity(A-7/W45) | kW | 12.0 | 15.0 | 12.0 | 15.0 | 18.0 |
| BTU/h | 41000 | 51200 | 41000 | 51200 | 61500 | |
| COP(A-7/W45) | 2.50 | 2.40 | 2.50 | 2.50 | 2.40 | |
| Rated Input Power(Heating)(A-7/W45) | kW | 4.80 | 6.25 | 4.80 | 6.00 | 7.50 |
| Rated Input Current(Heating)(A-7/W45) | A | 21.8 | 28.4 | 12.6 | 15.7 | 11.4 |
| Power Supply | V/PH/Hz | 200V-50Hz/200~220V-60Hz | 380~415V-50Hz | |||
| Compressor | EVI DC Inverter | EVI DC Inverter | EVI DC Inverter | EVI DC Inverter | EVI DC Inverter | |
| Compressor Qty | 1 | 1 | 1 | 1 | 1 | |
| indoor unit Noise | dB(A) | 38 | 38 | 38 | 38 | 38 |
| outdoor unit Noise | dB(A) | 52 | 52 | 52 | 52 | 52 |
| Water outlet/water inlet | inch | 1" | 1" | 1" | 1" | 1" |
| Water Flow Volume | m3/h | 2.06 | 2.58 | 2.06 | 2.58 | 3.10 |
| Refrigerant Gas Type | ||||||
| Indoor unit Net Dimensions(L/M/H) | mm | 600/600/760 | 600/600/760 | 600/600/760 | 600/600/760 | 600/600/760 |
| Indoor unit Shipping Dimensions(L/M/H) | mm | 650/730/810 | 650/730/810 | 650/730/810 | 650/730/810 | 650/730/810 |
| outdoor unit Net Dimensions(L/M/H) | mm | 880/360/800 | 930/390/1270 | 880/360/800 | 930/390/1270 | 930/390/1270 |
| outdoor unit Shipping Dimensions(L/M/H) | mm | 1020/450/830 | 1080/480/1310 | 1020/450/830 | 1080/480/1310 | 1080/480/1310 |
| Indoor unit Net Weight | kg | 93 | 95 | 93 | 95 | 115 |
| Indoor unit Shipping Weight | kg | 108 | 110 | 108 | 110 | 130 |
| Outdoor unit Net Weight | kg | 50 | 70 | 50 | 70 | 70 |
| Outdoor unit Shipping Weight | kg | 55 | 75 | 55 | 75 | 75 |
|
Note:(1)Cooling:Outdoor air temp:35℃/24℃,Outlet water temp:7℃,Inlet water temp:12 ℃; (2)Using in ambient temperature:-25℃~43℃. | ||||||

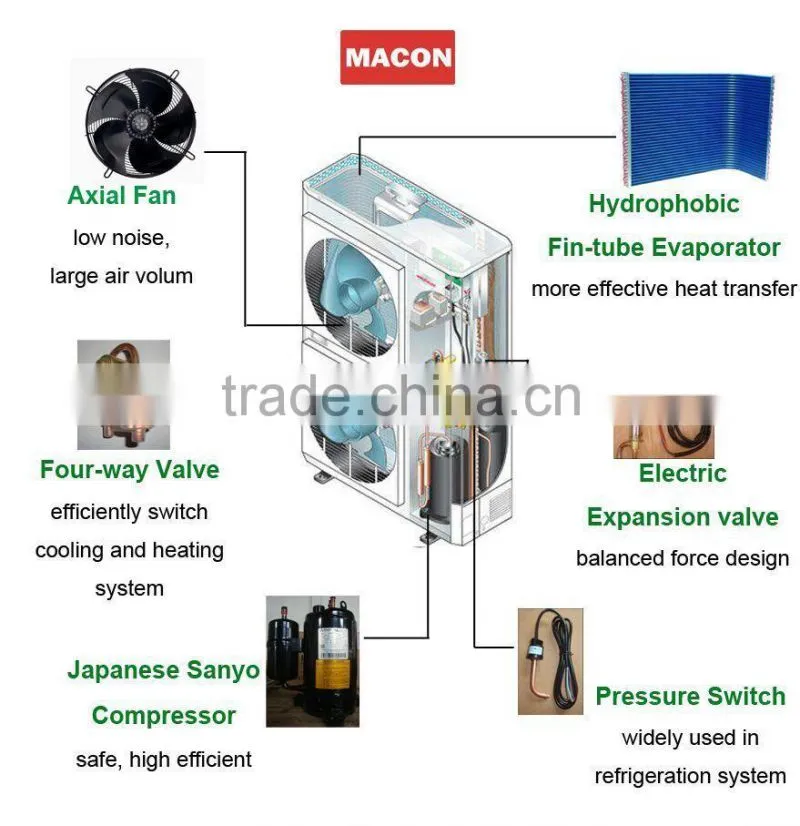

EVI DC inverter heat pump fertures:
1.Compressor
Super heating EVI DC inverter scroll compressor.
2.High speed heating start up
The performance of heating start up is improved.
3.High heating capacity

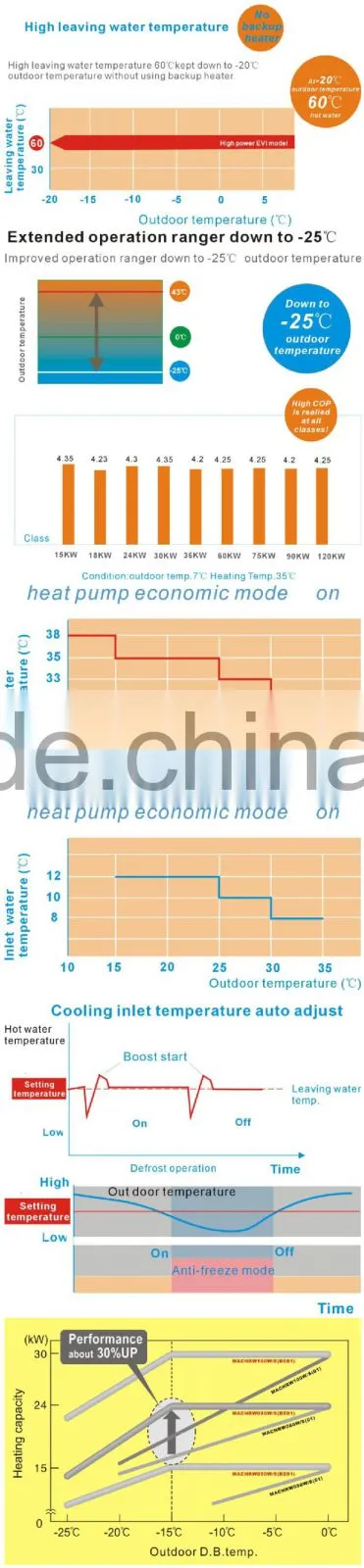

Industry-first injection circuit is equipped,which enable to keep the equal capacity with the even when outside temperature is -15 °C.but, The traditional heat pump can only reach 60% of the rated heating capacity output.
4.Evaporator
Evaporator is larger 30% than usual size to keep its high efficiency.
Our Service
1) MACON can supply OEM service for customers.
2) Produce heat pump according to customer's special demands.
3) Supply spare parts according to order quantity.
4) Warranty: 1% free spare parts
Certificate
Obtain certificates CE, ROHS, SAA, Water mark, Standard mark, C- tick, ETL, CCC, and pass ISO9001:2000
FAQ Frequently Asked Questions
1. Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers.
2. Can you do special product for us?
Yes. We have professional engineers having rich experience in heat pump design and manufacturing. Just tell us your ideas or provide the drawing, we can help to carry out your ideas into real products.
3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.
4. What is your terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
5. What is your payment terms?
-For sample order: T/T 100%
-For container order: T/T 30% deposit, T/T 70% before shipment or L/C
6. What about warranty?
We usually provide 1% free spare parts according to your order quantity.
