Stainless steel geothermal heat pump
♣Parameter
|
Water To Water Heat Pump ( Heating,cooling,domestic hot water) | ||||
| Model | MWCHRW | 250Z/S(01) | 300Z/S(01) | 400Z/S(01) |
| Rated Output Water | L/h | 1560 | 1870 | 2490 |
| Cooling :Air condition side inlet/outlet :12℃/7℃,Hot source side inlet/outlet:30℃/35℃ | ||||
| Rated Cooling Capacity | KW | 65.0 | 78.0 | 104.0 |
| BUT/h | 221800 | 266100 | 354800 | |
| Rated Input Power(Cooling) | KW | 15.29 | 18.35 | 24.47 |
| Rated Input Current(Cooling) | A | 23.2 | 27.9 | 37.2 |
| Heating:Hot water side inlet/outlet :15℃/55℃,Hot source side inlet/outlet:10℃/- | ||||
| Rated Heating Capacity | KW | 72.5 | 87.0 | 116.0 |
| BTU/h | 247400 | 296900 | 395800 | |
| COP | W/W | 4.1 | 4.1 | 4.1 |
| Rated Input Power(Heating) | KW | 17.68 | 21.22 | 28.29 |
| Rated Input Current(Heating) | A | 26.9 | 32.2 | 43.0 |
| Heating:Air condition side inlet/outlet :30℃/35℃,Hot source side inlet/outlet:10℃/ | ||||
| Rated Heating Capacity | KW | 80.0 | 96.0 | 128.0 |
| BTU/h | 273000 | 327600 | 436800 | |
| COP | W/W | 5.4 | 5.4 | 5.4 |
| Rated Input Power(Heating) | KW | 14.81 | 17.78 | 23.70 |
| Rated Input Current(Heating) | A | 22.5 | 27.0 | 36.0 |
| Power Supply | V/PH/Hz | 380/3/50 | 380/3/50 | 380/3/50 |
| Compressor | Scroll | Scroll | Scroll | |
| Noise | dB(A) | 66 | 68 | 68 |
| Water Out let/Water In let | inch | 2″ | 3″ | 3″ |
| Water Flow Volume | m³/h | 13.76 | 16.51 | 22.01 |
| Refrigerant Type | R410A | |||
| Net Dimensions ( L/M/H ) | mm | 1210/730/800 | 1210/900/1365 | 1700/900/1500 |
| Shipping Dimensions ( L/M/H ) | mm | 1260/780/900 | 1290/980/1506 | 1820/950/1650 |
| Net Weight | kg | 430 | 550 | 685 |
| Shipping Weight | kg | 460 | 600 | 710 |

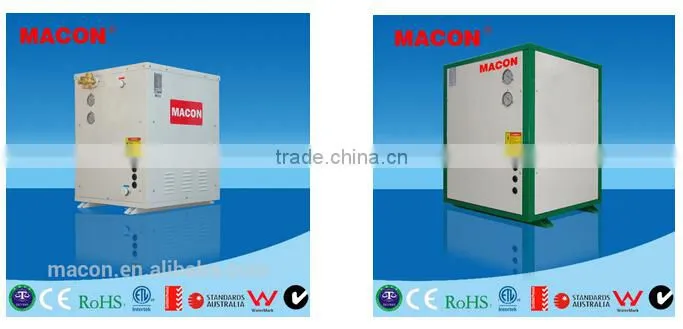

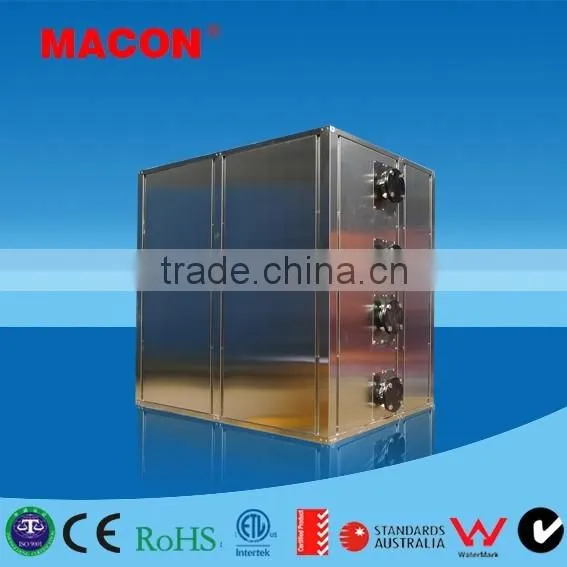

♣Product picutre

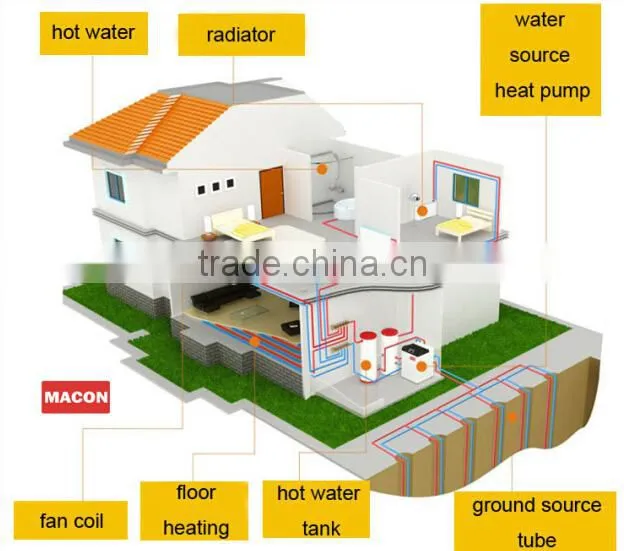

♣System application

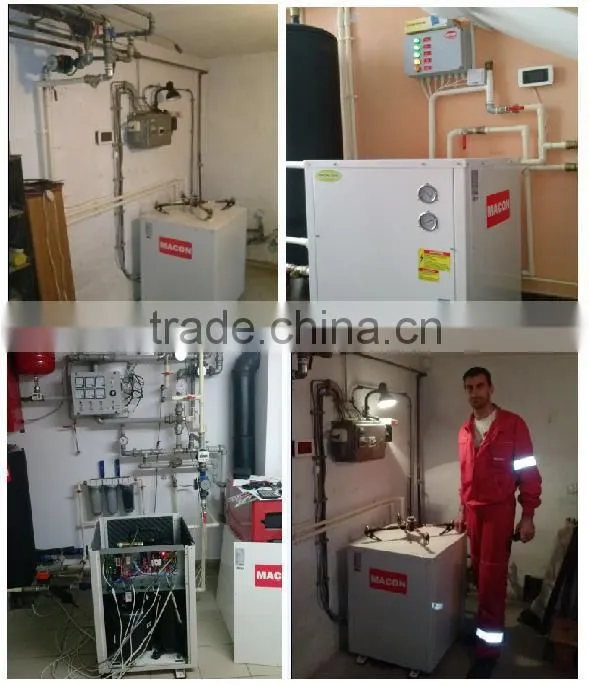

♣Project example
1.Plywood box for LCL,avoid any damage when shipment.
2.LCL with strong wooden case and foam inside package
3.Conainer goods will use carton box
♦About Macon
♦Certificate
♦ Customer vistit
We have customers from 76 countries.
We have sign the sole agent with our Australia and Canada customer.
♦ Exhibition
A--Order Service
1.We will choose the suitable model of heat pump according to your requirement.
2.We will provide you the catalogue,technical data,price meet your inquiry.
3.Arrange the production after receive your payment.
4.Pack well of the goods with best material according to the requirement.
5.Test the heat pump before sent to you
B--Price Service
1.EXW price or CIF price for LCL goods
2.FOB pice for container quantity
3.Adjust the price according to your order
C--Payment Service
1.T/T
2.L/C
3.Alibaba
D--After sale Service
1.One year warranty
2.We will provide you 1% free spare part in your warranty,you can pay and get more spart part
3.Technical support for your installation,maintance
4.Update the latest product
E--Other Service
1.OEM/ODM
2.New product R&D service
3.We will provide trainning course at our company if you need
1.Why choose Macon heat pump?
1)Macon company has 8 years experience in heat pump area,selling thousands of heat pump every year.
2)We have professional engineers circulate the suitable heat pump and solve your problem.
2)Every heat pump will be assemble in order and test well before package
2.What is your product range?
1)Swiming pool heat pump(DC inverter option)
2.)Air source heat pump for house use(Heating,cooling,hot water)EVI/DC inverter/EVI DC inverter
3).High temperature heat pump
4).Water to water heat pump
5).Dehumidifier for swimming pool
3..What is your production time?
Usually 30 days,it depend on your order quantity.
