Low temperature water heat pump EVI heat pump
| Indoor Unit Model | MACHRW | 040W/PS(E01) | 050W/PS(E01) | 060W/PS(E01) | 080W/PS(E01) |
| Outdoor Unit Model | MAFP | 040A | 050A | 060A | 080A |
| Rated Hot Water Output | L/h | 300 | 375 | 450 | 600 |
| Cooling: DB 35℃/WB 24℃, water inlet temp. 12℃, water outlet temp. 7℃ | |||||
| Rated Cooling Capacity | KW | 10.0 | 12.5 | 15.0 | 20.0 |
| Rated Input Power (Cooling) | KW | 3.51 | 4.39 | 5.26 | 7.02 |
| Rated Input Current (Cooling) | A | 6.7 | 8.3 | 10.0 | 13.3 |
| Hot Water: DB 20℃/WB 15℃, water inlet temp. 15℃, water outlet temp. 55℃ | |||||
| Rated Heating Capacity | KW | 14.0 | 17.5 | 21.0 | 28.0 |
| COP | W/W | 4.65 | 4.65 | 4.65 | 4.65 |
| Rated Input Power | KW | 3.01 | 3.76 | 4.52 | 6.02 |
| Rated Input Current | A | 5.7 | 7.2 | 8.6 | 11.4 |
| Heating: DB 7℃/WB 6℃, water inlet temp. 40℃, water outlet temp. 45℃ | |||||
| Rated Heating Capacity | KW | 11.0 | 13.8 | 16.5 | 22.0 |
| COP | W/W | 3.26 | 3.26 | 3.26 | 3.26 |
| Rated Input Power | KW | 3.37 | 4.22 | 5.06 | 6.75 |
| Rated Input Current | A | 6.4 | 8.0 | 9.6 | 12.8 |
| Power Supply | V/PH/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Max. Running Current | A | 10.0 | 12.5 | 15.0 | 20.0 |
| Application Ambient Temperature | -25℃~43℃ | ||||
| Noise @ 1m | dB(A) | 54 | 54 | 55 | 58 |
| Compressor | Hitachi EVI Scroll Compressor | ||||
| Heat Exchanger | GEA 316 Plate Heat Exchanger | ||||
| Evaporator | Hydrophilic Aluminium Fin Heat Exchanger | ||||
| Refrigerant Control Valve | SanHua Electronic Expansion Valve | ||||
| Water Inlet/ Outlet | inch | 1″ | 1″ | 1″ | 1-1/4″ |
| Water Flow Volume | m³/h | 2.41 | 3.01 | 3.61 | 4.82 |
| Refrigerant Type | R410a/R407C | ||||
| Indoor Unit Net Dimensions (L/M/H) | mm | 670/600/760 | 670/600/760 | 780/670/765 | 1205/730/800 |
| Indoor Unit Shipping Dimensions (L/M/H) | mm | 720/640/910 | 720/640/910 | 830/720/865 | 1330/760/950 |
| Outdoor Unit Net Dimensions (L/M/H) | mm | 880/420/800 | 930/440/1270 | 930/440/1270 | 1105/515/1545 |
| Outdoor Unit shipping Dimensions (L/M/H) | mm | 1020/450/950 | 1080/480/1420 | 1080/480/1420 | 1210/540/1690 |
| Indoor Unit Net Weight | kg | 100 | 110 | 115 | 150 |
| Indoor Unit Gross Weight | kg | 115 | 125 | 130 | 180 |
| Outdoor Unit Net Weight | kg | 35 | 50 | 50 | 65 |
| Outdoor Unit Gross Weight | kg | 40 | 55 | 55 | 75 |
| Indoor Unit Model | MACHRW | 100W/PS(E01) | 120W/PS(E01) | 160W/PS(E01) | 180W/PS(E01) |
| Outdoor Unit Model | MAFP | 100A | 120A | 080A*2 | 090A*2 |
| Rated Hot Water Output | L/h | 750 | 900 | 1200 | 1350 |
| Cooling: DB 35℃/WB 24℃, water inlet temp. 12℃, water outlet temp. 7℃ | |||||
| Rated Cooling Capacity | KW | 25.0 | 30.2 | 40.0 | 45.0 |
| Rated Input Power (Cooling) | KW | 8.77 | 10.60 | 14.04 | 15.79 |
| Rated Input Current (Cooling) | A | 16.7 | 20.1 | 26.7 | 30.0 |
| Hot Water: DB 20℃/WB 15℃, water inlet temp. 15℃, water outlet temp. 55℃ | |||||
| Rated Heating Capacity | KW | 35.0 | 42.0 | 56.0 | 63.0 |
| COP | W/W | 4.65 | 4.65 | 4.65 | 4.65 |
| Rated Input Power | KW | 7.53 | 9.03 | 12.04 | 13.55 |
| Rated Input Current | A | 14.3 | 17.2 | 22.9 | 25.8 |
| Heating: DB 7℃/WB 6℃, water inlet temp. 40℃, water outlet temp. 45℃ | |||||
| Rated Heating Capacity | KW | 27.5 | 33.0 | 44.0 | 49.5 |
| COP | W/W | 3.26 | 3.26 | 3.26 | 3.26 |
| Rated Input Power | KW | 8.44 | 10.12 | 13.50 | 15.18 |
| Rated Input Current | A | 16.0 | 19.2 | 25.7 | 28.9 |
| Power Supply | V/PH/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Max. Running Current | A | 25.0 | 30.2 | 40.0 | 45.0 |
| Application Ambient Temperature | -25℃~43℃ | ||||
| Noise @ 1m | dB(A) | 59 | 60 | 65 | 64 |
| Compressor | Hitachi EVI Scroll Compressor | ||||
| Heat Exchanger | GEA 316 Plate Heat Exchanger | ||||
| Evaporator | Hydrophilic Aluminium Fin Heat Exchanger | ||||
| Refrigerant Control Valve | SanHua Electronic Expansion Valve | ||||
| Water Inlet/ Outlet | inch | 1-1/4″ | 1-1/4″ | 1-1/4″ | 2″ |
| Water Flow Volume | m³/h | 6.02 | 7.22 | 9.63 | 10.83 |
| Refrigerant Type | R410a/R407C | ||||
| Indoor Unit Net Dimensions (L/M/H) | mm | 1205/730/800 | 1205/730/800 | 1210/730/800 | 1210/730/800 |
| Indoor Unit Shipping Dimensions (L/M/H) | mm | 1330/760/950 | 1330/760/950 | 1260/780/900 | 1260/780/900 |
| Outdoor Unit Net Dimensions (L/M/H) | mm | 1105/515/1545 | 1105/515/1545 | 1105/515/1545 | 1105/515/1545 |
| Outdoor Unit shipping Dimensions (L/M/H) | mm | 1210/540/1690 | 1210/540/1690 | 1155/565/1645 | 1155/565/1645 |
| Indoor Unit Net Weight | kg | 170 | 180 | 200 | 380 |
| Indoor Unit Gross Weight | kg | 200 | 210 | 230 | 410 |
| Outdoor Unit Net Weight | kg | 65 | 75 | 75 | 110 |
| Outdoor Unit Gross Weight | kg | 75 | 85 | 85 | 130 |
Outstanding Performance

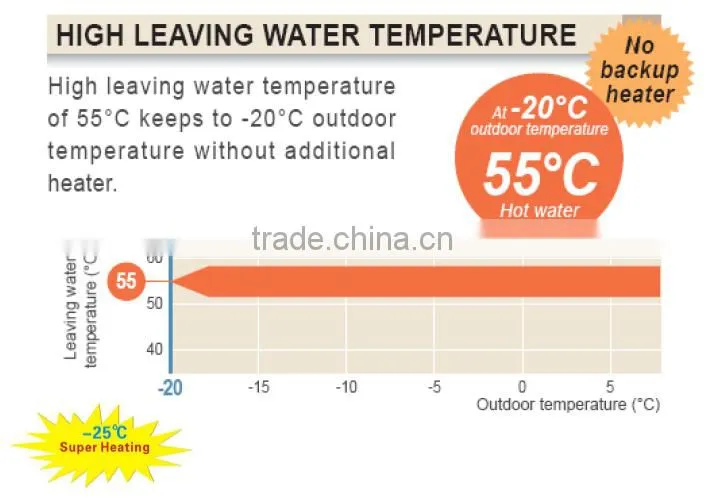

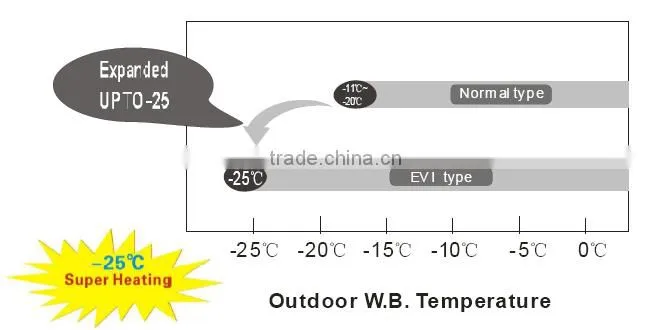

1.Working ambient temperature ranges from -25℃ to 43℃. Highest outlet water temperature up to 60℃. Intelligent control with automatic load balancing technology design which allows the heat pump to work under different climates and satisfies the demand for cooling in summer, heating in winter and domestic hot water all year round.
2. Automatic antifreeze protection technology
Under standby mode, unit will detect water outlet and ambient temperature automatically, if temperatures are too low, it will enter antifreeze protection to start the water pump or heating mode to prevent the water system from freezing.
3. Equipped with heating belt on the chassis and extra refrigerant pipe under evaporator to prevent the chassis or the evaporator condensate from freezing under low temperature running and ensure thorough defrosting drainage.
4. Crankshaft heating device around the compressor help to avoid oil freezing in compressor, ensure reliable lubrication of compressor start-up under low ambient temperature for longer service life.

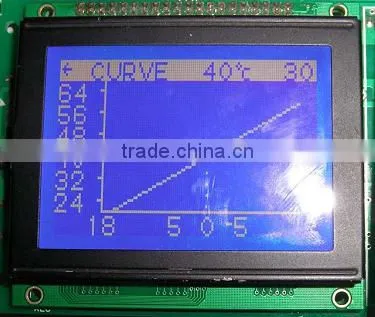

5. Automatic intelligent heating curve control
Intelligent working mode with winter heating curve, allows unit to automatically calculate water supply temperature according to outdoor ambient temperature changes. More convenient and more energy-saving.
6. Built-in unit ON/OFF and mode ON/OFF interfaces
Convenient switching control for different heat sources, central control of terminal fan coils and room thermostats. Automatic ON if any of the terminal equipment is on and automatic OFF when all terminal equipments are off.

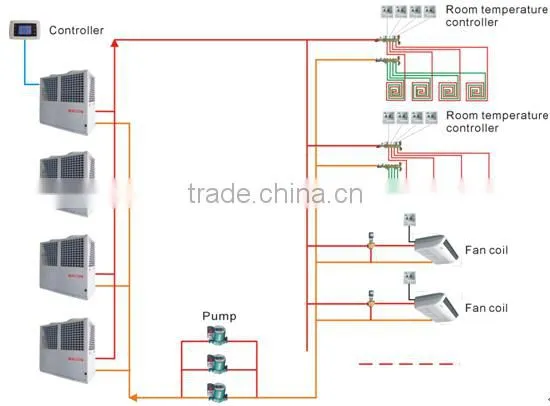

7. Convenient modular design. Independent control or centralized control for option.
Each centralized controller can control 16 modular units to adjust automatically according to the load changes, suitable for large-scale sites where need heating and cooling like commercial plazas, hotels, factories, hospitals, schools, etc.

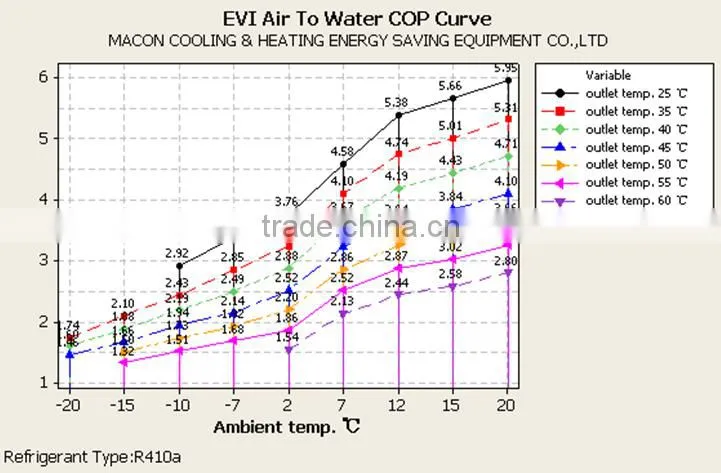

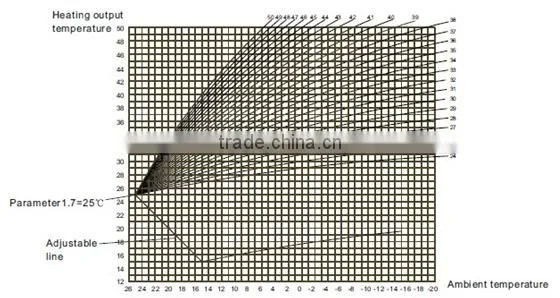

Performance Curve:
|

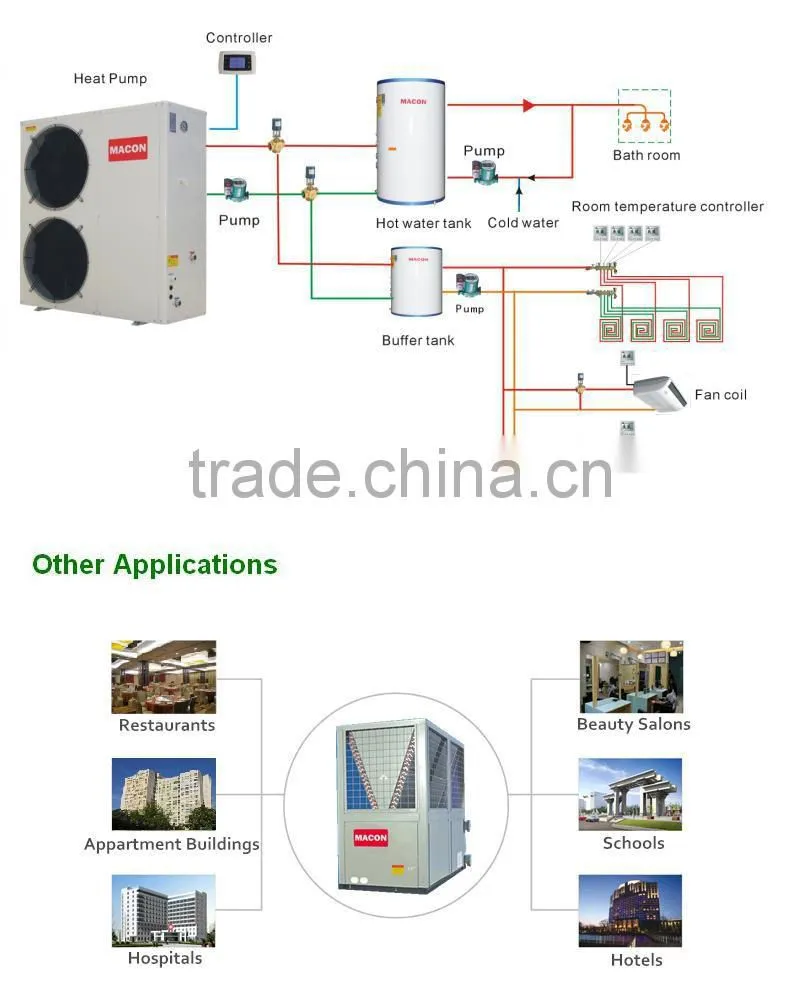

Multifunction Water Tank Radiator/ Convector Fan coi
Standard Export Package Keep The Product In Safety
For LCL Order: Interior Plastic Films + Plywood Case
For Container Order: Interior Plastic Films + Cartons
Our products are highly qualified by international standards. We gain various certifications such as CE, RoHS, EN14511 for European market, SAA, Water Mark, C-Tick for Australian market, ETL for North American market, etc.
