 FiberHome Microwave Web NMS (NMS of the DMW-S system)







Product Description



Characteristics

  • Support ACM & XPIC* Functions

  • IDU Connect With ODU via IF Cable

  • All Interfaces Are GE Port

  • Maximum Capacity Up To 500Mbps/Sec(256QAM),1Gbps with XPIC*

  • Support VLAN,QOS ,RMON ,Flow Control

  • RF Frequency Set By Software

  • Universal IDU, Suitable For Any Frequency Band

  • Transmission Capacity And Modulation Software Configurable

  • Automatic Transmit Power Control

  • Service Disk And Type Of IDU Configurable

  • Online BER Detection Function

  • Support SNMP Management Protocol And WEB Management Function

  • 1+0 or 1+1 Hot Standby







  Transmission Capacity and Service Interfaces

  • Up to 500Mb/s Ethernet capacity

  • 3×RJ45 and 1×SFP ports



Product Description

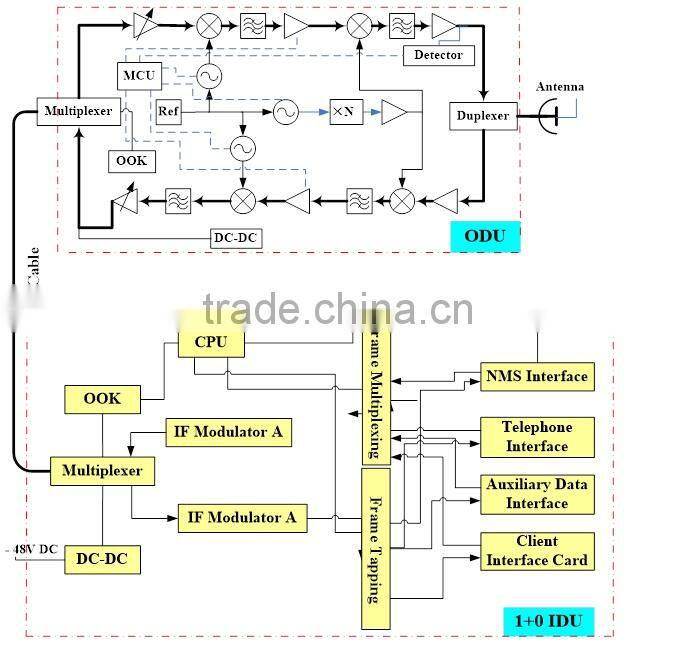

IP Microwave System is designed by technologies of CAD and CAM. It incorporates some high & new technologies which involve FPGA, ASIC, frequency synthesize, assembly modularization so that offers a high quality and a very reliable Wireless Digital Microwave services. The 128QAM/256QAM modem adopts technologies of FEC code and time-domain equalization to ensure error-free transmission.



FiberHome Microwave Web NMS (NMS of the DMW-S system)



Technical Specification

ODU Specs

Frequency

7GHz

8GHz

13GHz

15GHz

Standard Compliant



ETSI/ITU

Max Output Power(dBm)

128QAM

20

20

18

16/18

Min Output Power(dBm)

0

Power Adjust Step(dB)

1

Power Adjust Inaccuracy (dB)

±2

Rx Sensitivity@1E-6(dBm)

28MHz

128QAM

-69

-69

-68

-68

Antenna Interface Flange

UBR84

UBR84

UBR140

UBR140

IF Port

50Ω,N-K;Maximum length of IF Cable between IDU&ODU:300 meters

RSSI

Output Power: 0~6V@Rx Sensitivity -80~-20dBm,0.1V/dB

Frequency Stability

±5ppm

IDU Specs

IP Throughput

Max 1Gbps(256QAM,56MHz); 2Gbps(XPIC Function)*

Interface Type/Board

Smart E1(IMA/TDM): 16(75Ω/120Ω)

/STM-1:2 opt

/FE/GE: 4*100/1000 Base-T, 2*1000Base-X,XPIC port(SMB)

System Specs

NMS

SNMP

System Configuration

1+0,1+1;HSB,SD,FD;E-W ring

Power Supply Range

-36V~-60V

Power Consumption

1+0:≤50W

1+1:≤80W

Temperature Range

IDU:-5℃~55℃

ODU:-33℃~+60℃

Humidity Range

IDU:95% non-condensing

ODU:15%~100%

Size and Weight

IDU:≤3.5kg(1U),482 × 44× 330mm3

ODU:≤5.5kg,296×240×90mm3

Altitude

≤4500 meters

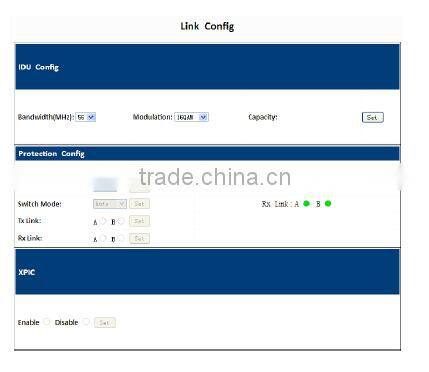

Web Interface & NMS

The web interface has the following key functions:

  • Login by entering username and password via IE

  • License Management

  • Software Update

  • Link Performance

  • IDU Status

  • ODU Status

  • Alarm Status

  • Link Configuration

  • ODU Frequency and Power setting

  • ATPC setting

  • SDH setting

  • Ethernet setting

  • NMS Configuration

  • Loop Test

  • System capacity and modulation mode priority setting

  • Alarm Setting

Basic Function of NMS(Network Management System):

  • Intelligent Management over equipment and microwave links

  • Parameter Query

  • Status Monitoring

  • Faults Locating & Diagnosis



 FibeHome Global Presence

FiberHome Microwave Web NMS (NMS of the DMW-S system)





 FiberHome ( Hongxin) Production and R&D Base for IP microwave



FiberHome Microwave Web NMS (NMS of the DMW-S system)
