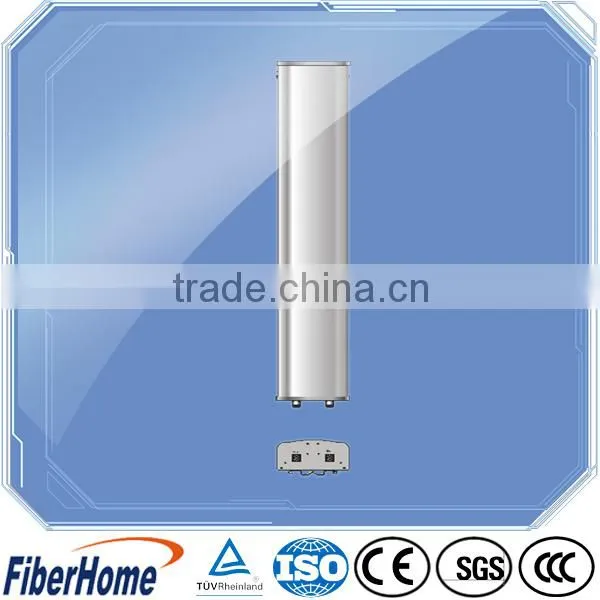

FiberHome 23.5-24 DBi 1710~2170 MHz High Gain 3g Antenna

Name: FiberHome 23.5-24 DBi 1710~2170 MHz High Gain 3g Antenna
Brand: FiberHome
SKU: 113222255
Availability: InStock

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

FiberHome

Model Number:

HXHMDX0B0024033DXTHF

Wuhan Fiberhome International Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

wuhan shenzhen shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name FiberHome

Model Number HXHMDX0B0024033DXTHF

Specifications

FiberHome 23.5-24 dBi 1710~2170 MHz high gain 3g antenna
Outdoor application

Product Description

Electrical Specifications
Frequency range(MHz)	1710~2170
	1710~1880	1850~1990	1920~2170
Gain (dBi)	23.5	23.8	24
VSWR	less or equal than 1.5
Isolation(dB)	≥30

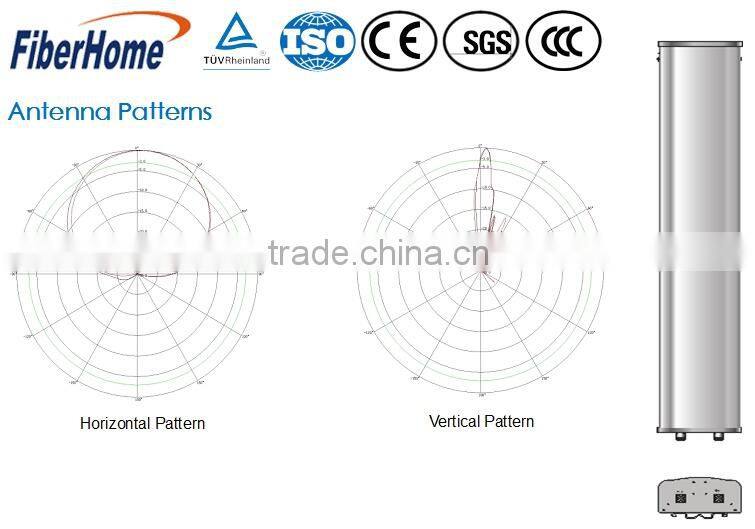

Horizontal Beam Width(°)	34	33	32
Vertical Beam Width(°)	4	3.8	3.5
Electrical Downtilt(°)	0-8°
First Sidelobe suppression (dB)	0° … 3° …6° 18 …18 … 18
Cross-Polar Ratio (dB)	≥15@0°(≥10 @±60°)
Front to Back Ratio(dB)	≥27
Polarization	±45°
Maximum Input Power(W)	250(at 50 °C ambient temperature)
IMD 3^rd(dBc)	≤-150(@2×43dBm carrier)
Impedance(W)	50
Method of Adjustment	By hand or RCU optional
Mechanical Specifications
Input Connector	2×7/16 DIN female
Connector Position	Bottom
Dimensions of antenna	2300´320´105mm
Packing Size	2600´415´195mm
Weight of Antenna	22Kg
Weight of Mounting Kits	6Kg
Diameter of Installation Pole	f50-f115 mm
Install Position Adjustment	Azimuth 360°, Elevation 0°-13°
Max Wind Speed	60m/s
Radome Material	UPVC
Environmental Specifications
Application	Outdoor
Working Temperature	-40℃~+60℃
Limited Temperature	-55℃~+80℃
Working Humidity	≤95%
