55W LED Wind & Solar Hybrid Street Light System

55W LED Wind & Solar Hybrid Street Light System thumbnail-1
55W LED Wind & Solar Hybrid Street Light System thumbnail-2
55W LED Wind & Solar Hybrid Street Light System thumbnail-3
55W LED Wind & Solar Hybrid Street Light System thumbnail-4
55W LED Wind & Solar Hybrid Street Light System thumbnail-5
55W LED Wind & Solar Hybrid Street Light System photo-1
55W LED Wind & Solar Hybrid Street Light System photo-2
55W LED Wind & Solar Hybrid Street Light System photo-3
55W LED Wind & Solar Hybrid Street Light System photo-4
55W LED Wind & Solar Hybrid Street Light System photo-5
US$ 1 - 3,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
DIGISINE
Model Number:
WS-6CB
Contact Supplier Request Quote Chat Now
Digisine Energytech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Kaohsiung Port Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name DIGISINE
Model Number WS-6CB
Type Wind Power Generator



Product Description

Product Includes

1 x Wind Turbine

1 x Solar Panel

1 x LED Lamp

1 x DC Battery

1 x Pole

1 x Control Box

1 x User Manual

Specification

Model Number:

WS-6CB
Solar Panel



Rated Power:

195W

Open Circuit Voltage:

29.87V

Short Circuit Current:

8.48V

Max. Power Voltage:

23.9V

Max. Power Current:

8.16A

Module Efficiency:

14.95%

Solar Cell Efficiency:

17.2%

Operating Temperature:

-40°C ~ +85°C

Dimensions:

1310 x 989 x 45 mm

Weight:

15.7Kg
Solar MPPT Charge Controller



Rated Power

200W

Rated Input Current:

5A

Charging Start Voltage:

DC 6V

Input Voltage Range:

DC 6V - 50V

Output Voltage:

DC 12V

Max. Charging Current:

16.66A

Max. Charging Efficiency:

>85%

Battery Low Shutdown:

DC 11.5V ± 5%

Battery Floating Charge:

DC 13.8V ± 5%

DC Load Current:

Max. 16A

DC Load Management:

16 Kinds

Operating Temperature:

-20°C ~ +40°C

Weight:

1.7Kg

Dimensions:

200 x 142 x 50 mm
Wind Turbine 600W



Rated Speed:

12.5m/s (41 ft/s)

Rated Power:

600W

Voltage with MPPT:

12V & 24V

Rotor Diameter:

1.3 m (4.2ft)

Cut-In Wind Speed:

2 m/s (4.5mph)

Survival Wind Speed:

70 m/s (157mph)

No. of Blades:

3

Blade Material:

PP + Glass Fiber

Suggested Battery Capacity:

>100 A/HR

Weight:

9Kg
Wind MPPT Charge Controller



Output Power:

12V/24V Auto Detect

Input Voltage Range:

5 ~ 75 VRMS

Charging Efficiency:

>97% ~ 99%

Battery Protection Voltage:

12V - 14.4V (Lead-Acid Batteries)

15.8V (Deep-Cycle Batteries)

24V - 28.8V (Lead-Acid Batteries)

30V (Deep-Cycle Batteries)

Rated Load Current:

Max. 35A

Over-Speed Braking:

>=1400RPM
Wind Turbine 1500W



Rated Speed:

14m/s (46 ft/s)

Rated Power:

1500W

Voltage with MPPT:

24V

Rotor Diameter:

1.7 m (5.6ft)

Cut-In Wind Speed:

2.5 m/s (5.6mph)

Survival Wind Speed:

60 m/s (134mph)

No. of Blades:

3

Blade Material:

PP + Glass Fiber

Suggested Battery Capacity:

>200 A/HR

Weight:

15Kg
Wind MPPT Charge Controller



Output Power:

24V Auto Detect

Input Voltage Range:

5 ~ 75 VRMS

Charging Efficiency:

>=95%

Battery Protection Voltage:

29.5±1V (Lead-Acid Batteries)

31±1V (Deep-Cycle Batteries)

Rated Load Current:

Max. 45A

Over-Speed Braking:

<1000RPM

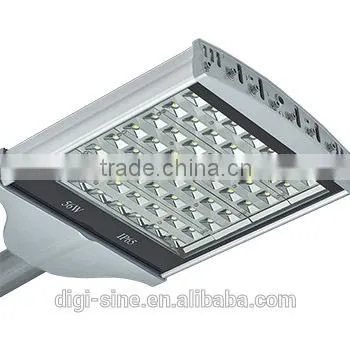

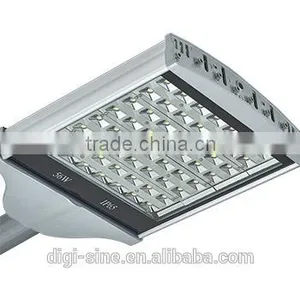

LED Street Lamp



Rated Power:

55W±5

Operating Voltage:

DC 12V

Operating Current:

3.75A

Color Temperature:

5000K (3000K)

Output Luminous Flux:

>5100LM (White)

Color Rendering Index:

Ra>=80

Effective Illuminated Area:

>20M x 8M

Life Cycle:

>30000Hrs

Optical Decline Rate:

3000 Hrs < 10%

Illuminance as Distance:

73LUX (4m high)

Operating Humidity:

10~95%

Operating Temperature:

-40°C ~ +50°C

Dimension:

440 x 225 x 120 mm

Weight:

6.5Kg

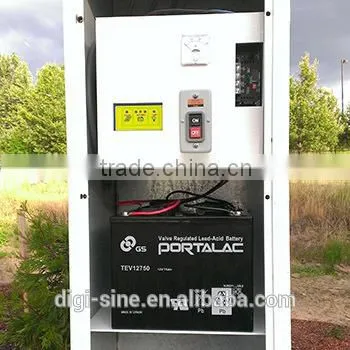

Battery



Nominal Voltage:

DC 12V

Capacity:

75A/HR x 2 (150A/HR)

Life Cycle:

>200 Times

DIN Type Battery:

5.2 L

Terminal Type:

B2

Operating Temperature:

-20°C ~ +50°C

Dimension:

260 x 168 x 223 mm

Weight:

26Kg
