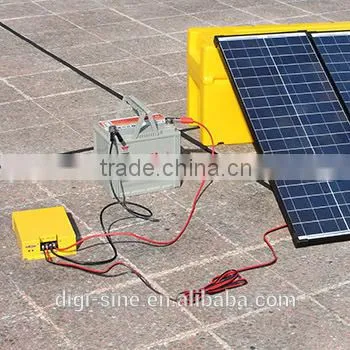

Portable 150W Solar 12V Power Generator Kit for Camping

Name: Portable 150W Solar 12V Power Generator Kit for Camping
Brand: DIGISINE
SKU: 113180933
Availability: InStock

US$ 1 - 350 MOQ: 1 Set

Key Specifications

Place of Origin:

Taiwan, China

Brand Name:

DIGISINE

Model Number:

JS-B150

Digisine Energytech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Kaohsiung Port Taiwan

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Taiwan, China

Brand Name DIGISINE

Model Number JS-B150

Type Solar Generator

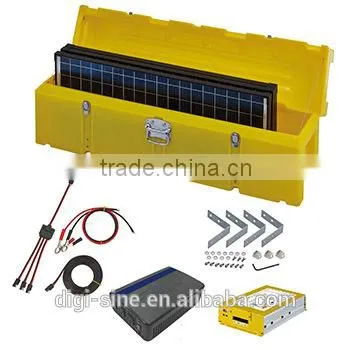

Product Description

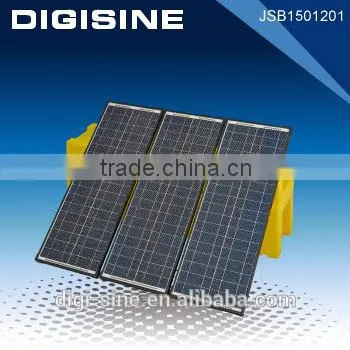

3 x 50W Poly-Crystalline Solar Panels

1 x Carrying Case

1 x 3 in 1 Wire Connector

1 x Black/Red Battery Clip / Extension Wire/p>

4 x L Type Bracket

11 x Hex Socket Head Cap Screw

11 x M4 Washer

1 x M4 Hex Key Allen Wrench Spanner

3 x Angle Bracket

1 x 500W On-Grid / Off-Grid MPPT Charger

1 x 1000 Watt Inverter (Optional)

1 x User Manual

Model Number:	JSB-150
Solar Panel:
Maximum Power:	50W
Tolerance:	±2%
Open Circuit Voltage:	22.03V
Short Circuit Current:	2.85A
Max. Power Voltage:	18.5V
Max. Power Current:	2.69A
Operating Temperature:	-40°C to 85°C
Series Fuse Rating:	15A
Terminal Box:	IP65
Dimensions:	995 x 340 x 35 mm
Weight:	5Kg
500 Watt On-Grid/Off-Grid MPPT Charger
Input Voltage Range	10V-44V DC
Standby Current:	<=0.1A
Rated Input Current:	13A
Input High Voltage Protection:	44V
Recommended PV device OCV*:	<=44V
Output Voltage Range:	9V - 16V DC
Output Low Voltage Protection:	9V
Maximum Output Current:	28A
Efficiency:	92%
Over Temp. Protection:	70°C
Restore Operating Temperature:	55°C
Dimension:	222 x 143 x 51 cm
Weight:	1.4Kg
