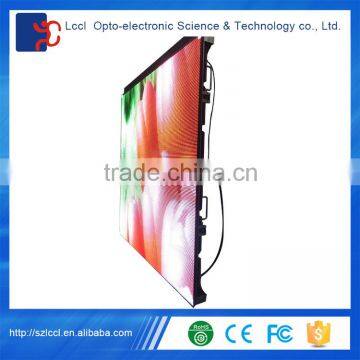

High Brightness Waterproof Full Color Die-cast Aluminum Cabinet Outdoor Advertising Screen Panel Display Led
high brightness waterproof full color Die-cast aluminum cabinet outdoor advertising screen panel display led
| Item | Parameter | Item | Parameter |
| Pixel Pitch | 6mm | LED Encapsulation | SMD3528/1R1G1B |
| LED Chips | Epistar | Module resolution | 96dots*96dots |
| Module size(mm*mm) | 576mm576mm | Pixel density | 27777dots/m² |
| Weight | 10.6kg/pcs | Drive chip | 2026 |
| Cabinet's material | Aluminum / Iron /Die-casting | Cabinet Color | RED / BLUE / BLACK |
| Drive Method: | 1/8 Scanning | Brand of power supply | CL 5V~40A |
| Gray Scale | Recommended 2 56 level | The best viewing angle | Horizontal:140 Vertical:90 |
| Max Power Consumption | 1000W/ m² | Control Mode | Video frequency synchronization |
| Optimal Viewing Distance | ≥10m | Brightness | ≥6500cd/m² |
| Blind Spot Rate | <0.0001 | Brightness Control | 0-255 Grade |
| Contrast | 100 levels adjustable | Earth Leakage Current | <2mA |
| MTBF | >5000Hours | Lifespan | >100000Hours |
| Power Supply Mode | AC220V/50HZ or AC110V/60HZ | Protection Level | IP65 |
| Humidity | 0%~90% | Operating System | Windows98/me/ 2000/NT/XP |
| Operating temperture | Operation:-30°C~+60°C | ||



Send Inquiry to This Supplier
