Help CenterInjection Molding Machine for Electronic Connectors(vertical Injection Machine)
Related Products
-
45 Ton Vertical Injection Moulding Machine for ToothbrushUS$ 8,000 - 32,000MOQ: 1 Set -
XT-VS60 High Precision Auto Vertical Plastic Moulding Machine PricesUS$ 5,000 - 10,000MOQ: 1 Set
-
200t Injection Molding Machine PricesUS$ 10,000 - 35,000MOQ: 1 Set
-
Sell the Most Practical Low Price Vertical Plastic Injection Molding MachineUS$ 5,000 - 30,000MOQ: 1 Set
-
Express Ball Pen Making Machine/injection Molding MachineUS$ 5,659 - 5,660MOQ: 1 Set
Specifications
1.Screw diameter:40mm2.Machine size:1.6x0.83x2.62m
3.Clamping force:800KN
1.Vertical Injection Moulding Machine Features
a. Strong clamping force, Small extrusion quantities, Faster extrusion rates, Big mold vacuum.
a.Advanced LCD Monitor TECHMATION computer system, easy to maintain and operate the machine.

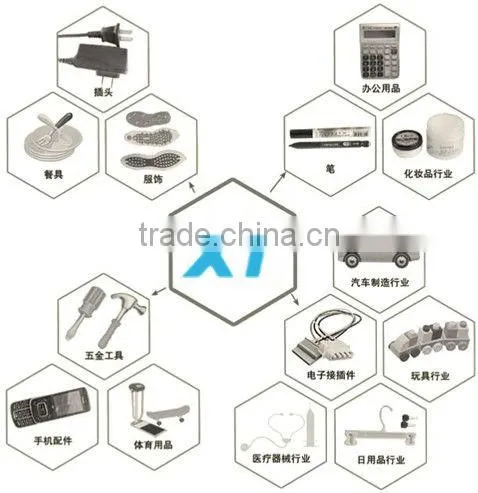

c.Wide application in various plastic products such as Power Cord Plug, Electronic Parts, Auto Parts, Insertion Molding and so on..
d. Custom-design is workable for Parts of Machines.
2.Main technical data
Technical Parameters XTVX-125 | ||
Injection Device |
|
|
|
UNIT |
DATA |
SCREW MODEL |
|
STANDARD |
SCREW DIAMETER |
MM |
40 |
INJECTION PRESSURE |
Mpa |
122 |
THEORETICAL SHOT VOLUME |
CM³ |
175 |
SHOT WEIGHT(PS) |
G |
145 |
INJECTION RATE(PS) |
G/S |
93 |
SCREW SPED |
R/PM |
0-180 |
Clamping Device |
|
|
CLAMPING MODEL |
|
INVOLUTION |
CLAMPING FORCE |
KN |
800 |
MAX. PLATE STROKE |
MM |
270 |
MOULD THICKNESS |
MM |
100-330 |
SPACE BETWEEN TIE-BARS(HxV) |
MM |
364x244 |
MOULD PLATE SIZE(HxV) |
MM |
525x405 |
EJECTOR FORCE/STROKE |
KN/MM |
25/70 |
Others |
|
|
MOTOR POWER |
KW |
7.5 |
HEATING POWER |
KW |
6 |
MACHINE WEIGHT |
TON |
1.98 |
MACHINE SIZE(LxWxH) |
M |
1.6x0.83x2.62 |
3.About our company
Hebei Xiangte Imp.& Exp. Co.,ltd is a exclusive sales agent of Hebei Xiangte Plastic Molding Machinery Co.,ltd. Established in 1999, Hebei Xiangte Plastic Machinery Co.,ltd is specialized in the research, manufacturing, sales and service of various plastic molding machines. Once choose our machine, lifelong free from trouble!

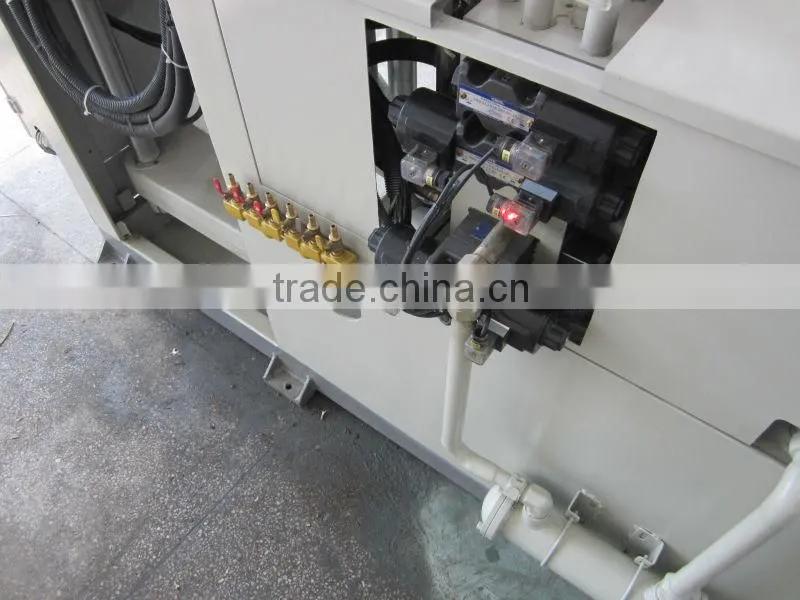

4.Machine parts
