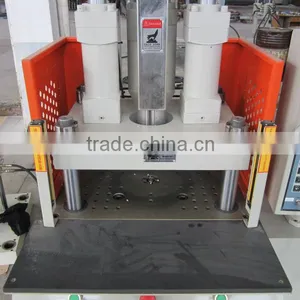

45 Ton Vertical Injection Moulding Machine for Toothbrush
US$ 8,000 - 32,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XT-VS60 High Precision Auto Vertical Plastic Moulding Machine PricesUS$ 5,000 - 10,000MOQ: 1 Set -
200t Injection Molding Machine PricesUS$ 10,000 - 35,000MOQ: 1 Set
-
Sell the Most Practical Low Price Vertical Plastic Injection Molding MachineUS$ 5,000 - 30,000MOQ: 1 Set
-
Express Ball Pen Making Machine/injection Molding MachineUS$ 5,659 - 5,660MOQ: 1 Set
-
Hot New Products for 2015 Vertical Plastic Injection Molding Machine PriceUS$ 3,012 - 31,205MOQ: 1 Set
Condition
New
Type
Preform Injection
Style
Vertical
Brand Name
XT
Model Number
XTV-S45
Place of Origin
Hebei, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
109CM3
Injection Rate
60g/s
Clamping Force
450kn
Opening Stroke
150mm
Power(W)
9KW
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Moulding thickness:300mm2.Machine size:2*1.*2.7M
3.Clamping force:450KN
4.CE
1.Main Features
Vertical clamping, vertical injection. |
Compact design requires less floor space. Makes the take-out process more easilier. |
Suitable for multi-purpose injection molding. Excellent for insert molding. |
High-speed injection unit utilizing closed-loop system. |
2.Main technical data
|
UNIT | A | B | C |
| Screw diameter | mm | ø28 | ø32 | ø36 |
| Injection Weight | g | 78 | 102 | 129 |
| Injection pressure | Mpa | 200 | 153 | 121 |
|
| Clamping force | KN | 450 |
| Note pitch mode | mm | 400*250 |
| Minimum Mold Thickness | mm | 150/210 |
| Mold spacing | mm | 200 |
| Maximum daylight opening | 350/410 | |
| Ejector stroke | 40 |
|
| Maximum Hydraulic | Mpa | 14 |
| Fuel tank capacity | L | 180 |
| Motor Power | Kw | 5.5 |
| Heating capacity | Kw | 3.9 |
|
| Weight | T | 2 |
| Dimensions | m | 1.7*1.1*(2.2~2.8) |
3.About our company
Hebei Xiangte Imp.& Exp. Co.,ltd is a exclusive sales agent of Hebei Xiangte Plastic Molding Machinery Co.,ltd. Established in 1999, Hebei Xiangte Plastic Machinery Co.,ltd is specialized in the research, manufacturing, sales and service of various plastic molding machines. Once choose our machine, lifelong free from trouble!
4.Machine Parts
