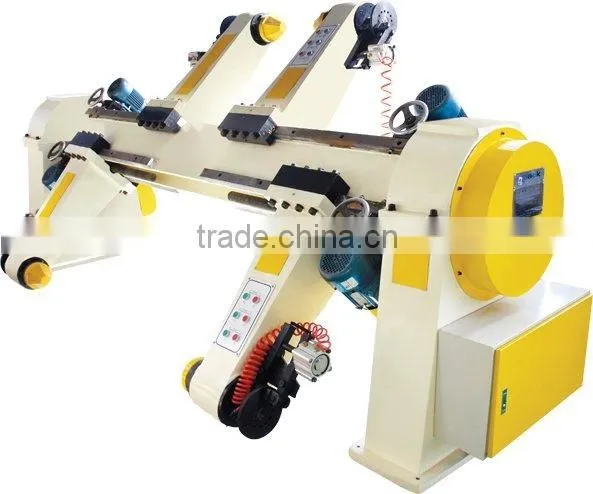

Help CenterElectric Shaftless Mill Roll Stand Cardboard Production Line Carton Board Making Machine
Related Products
-
DongGuang XinHua Packing Machinery-Knight Whole Hydraulic Mill Roll Stand for Cardboard Making LineUS$ 10,000 - 12,999MOQ: 1 Set -
DongGuang XinHua Packing Machinery-GIGA LXC New Electrical Mill Roll Stand for Cardboard Making LineUS$ 5,999 - 8,999MOQ: 1 Set
-
RS-1500M Mill Roll Stand for Corrugated Paperboard Production Plant DongGuang XinHua Packing Machinery CompanyUS$ 5,000 - 6,000MOQ: 1 Set
-
ZJ-Y Hydraulic Shaftless Mill Roll Stand for Corrugated Paperboard Production Plant DongGuang XinHua Packing Machinery CompanyUS$ 10,000 - 12,000MOQ: 1 Set
-
KZJ-Y-1800 New Hydraulic Mill Roll StandUS$ 9,000 - 15,000MOQ: 2 Sets
structural features:
1.Mill roll on both arms can be bearing at the same time.It can realize changing the rolls non-stop working.
2.Reel paper clamp, lift-lower, loosen, centering, movement of left-right controlled by mechanical driving.
3.Brake adjustment use butterfly disc type pneumatic brake system
4.Equipped with twin-stage automatic expansion type chucking paper head, chucking paper head is 4 inch type.
technical parameter:
1.Movement type: Electric swing arm
2.Reel Paper range:
Max:1700mm, Min:900mm
3.Reel paper Diameter:
Max: Φ1500mm, Min: Φ350mm
4.Max. Bearing Of single side: 2000Kg
5.Air source working pressure(Mpa): 0.4-0.8Mpa
6.Working power: Voltage 380V, frequency 50Hz
Sales manager: Shayne Liu
Mobile:008618633735013
Whatsapp: 008618633735013
Skype: shaynelau
Send Inquiry to This Supplier
