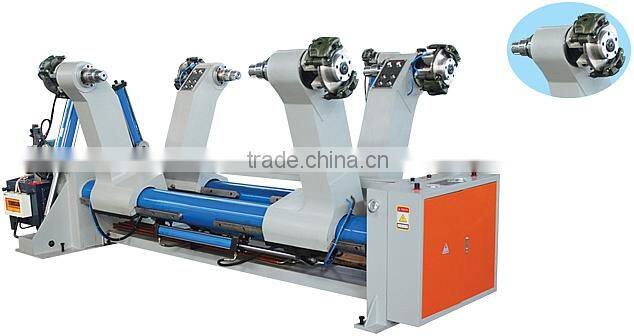

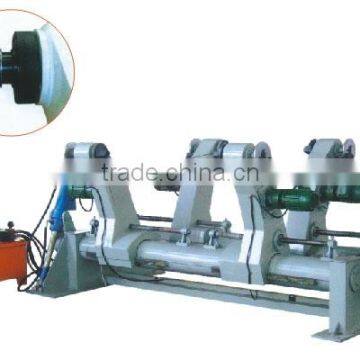

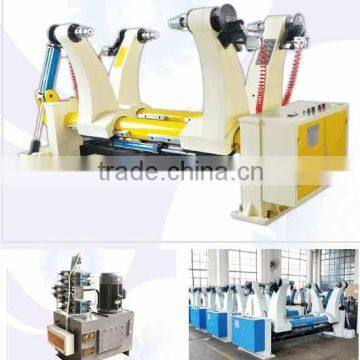

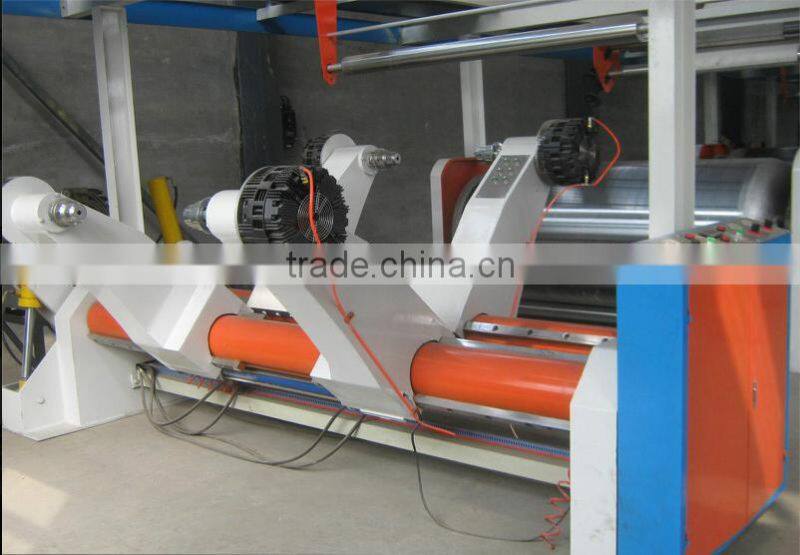

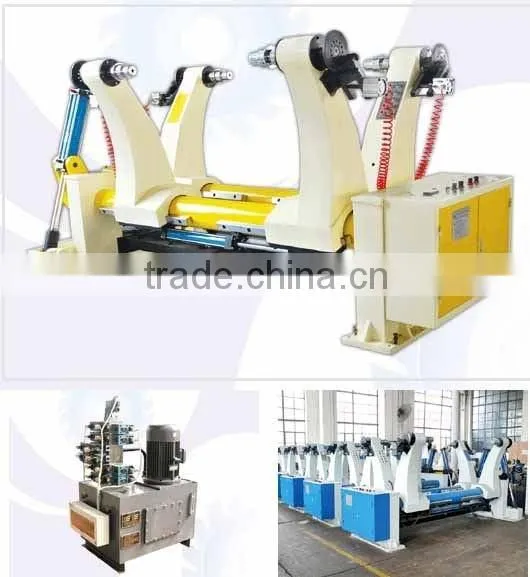

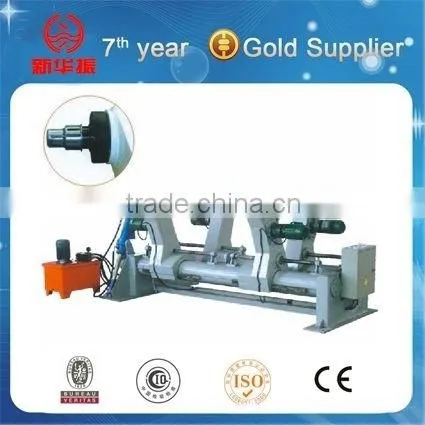

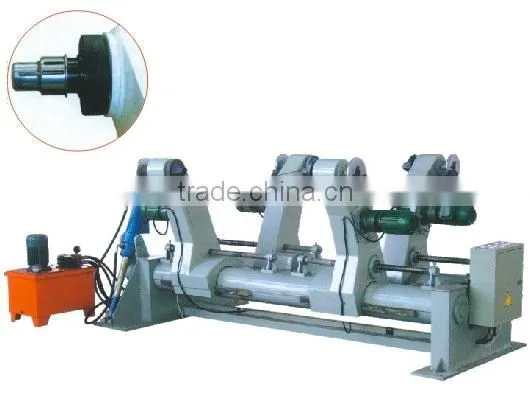

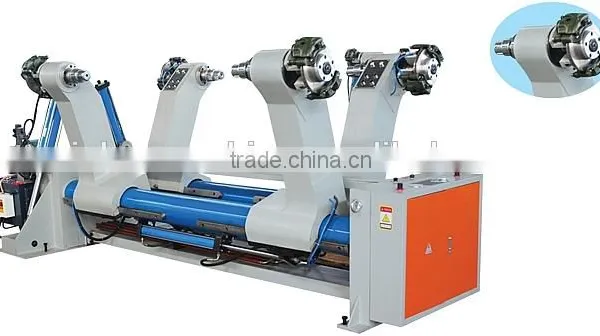

Knight Whole Hydraulic Mill Roll Stand
Structure and Features
Symmetrical structure,can carry two kraft paper at one time,which can work without brake.
Reel paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic pressure.
feeding kraft / reel paper quickly.

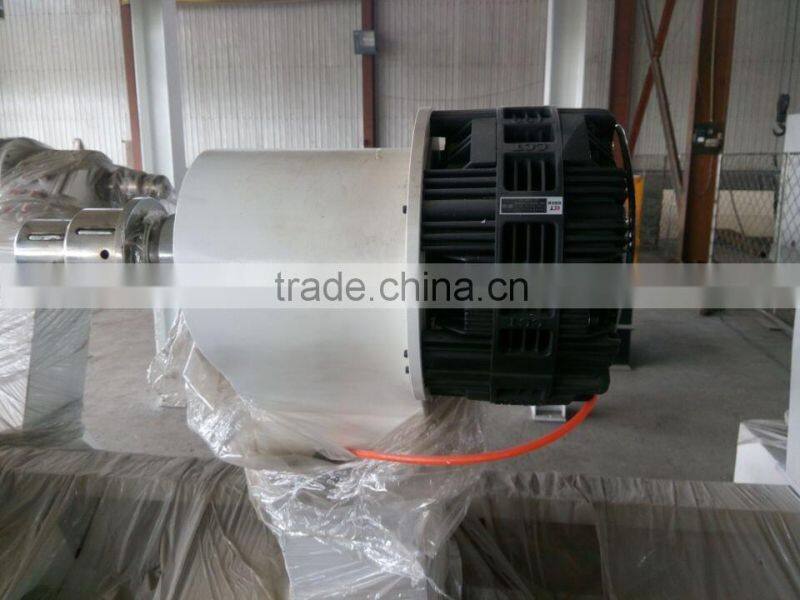

Brake: pneumatic brake

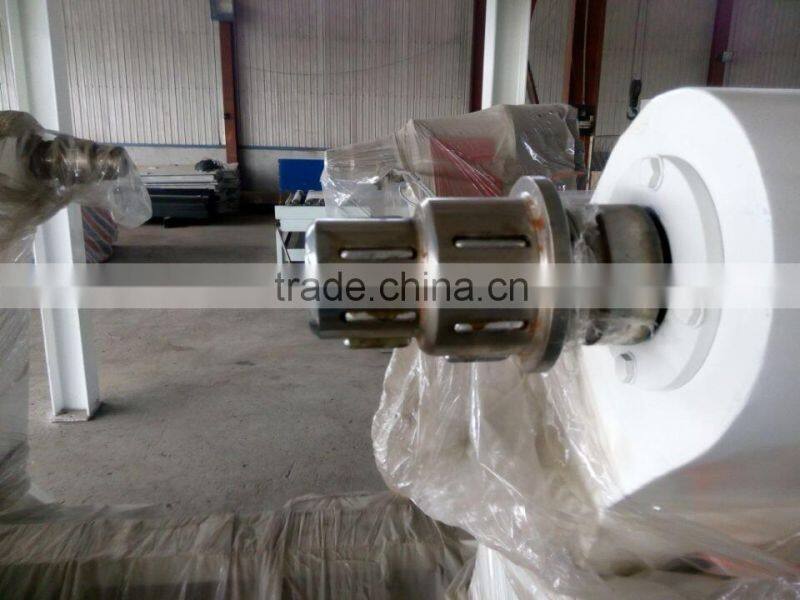

Double Level Auto Exoander,Expander head:3/4 inch Double Level.
Spec of stand:
1,Reel Stand driven by hydraulic
2,Kfat paper range
Width: Max:2200mm Min:1000mm
Diameter:Max:1500mm Min:350mm
Max Weight:2500Kg(One side)
3,Main roller dia:215mm
4,Pneumatic Source Pressure(Mpa):0.4---0.8Mpa
5,Power: 380V 50Hz

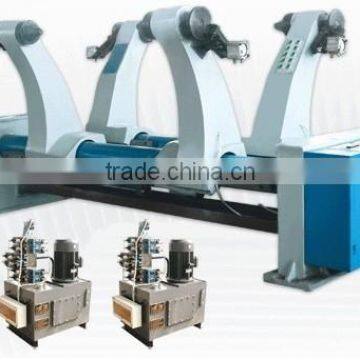

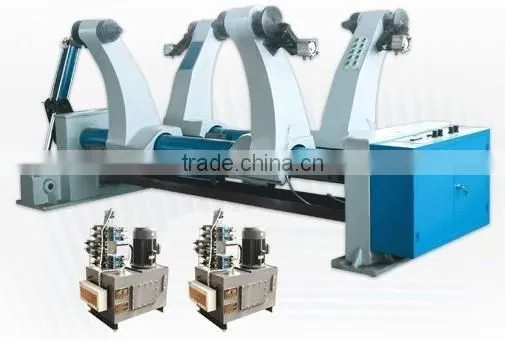

Spec of hydraulic system:
1Working Pressure(Mpa):16---18Mpa
2Hydraulic Cylinder Range(Lift/Down):110×440mm
3Hydraulic Cylinder Range(Clamp/Loosen):80×800mm
4Hydraulic Station Motor Power:4KW Short Time(S2) Working Type
Nominal voltage:380V 50Hz
5 Hydraulic Station Electromagnetic Valve Woking Power:220V 50 Hz
Avaliable Width |
L |
W |
H |
||||
1400 |
55" |
3000 |
118" |
1550 |
61" |
1650 |
65" |
1600 |
63" |
3200 |
126" |
1550 |
61" |
1650 |
65" |
1800 |
71" |
3400 |
134" |
1550 |
61" |
1650 |
65" |
2000 |
79" |
3600 |
142" |
1550 |
61" |
1650 |
65" |
2200 |
87" |
3800 |
150 |
1550 |
61" |
1650 |
65" |

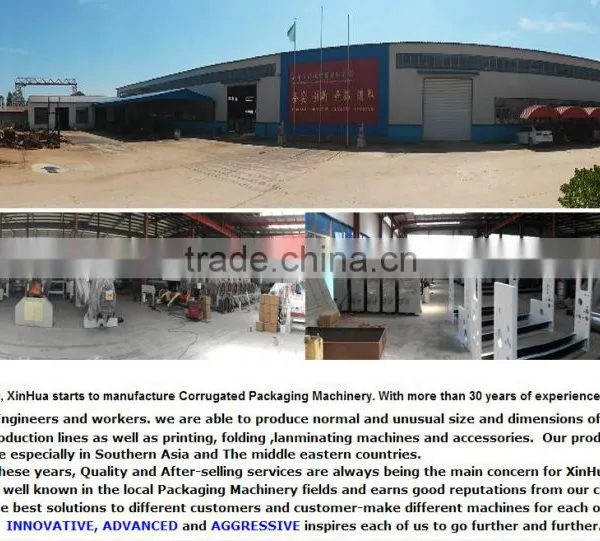

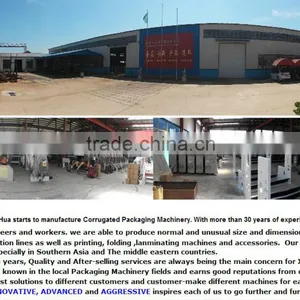

You are warmly welcome to visit our manufacturing in China!!!
