DongGuang XinHua Packing Machinery-GIGA LXC New Electrical Mill Roll Stand for Cardboard Making Line

DongGuang XinHua Packing Machinery-GIGA LXC New Electrical Mill Roll Stand for Cardboard Making Line thumbnail-1
DongGuang XinHua Packing Machinery-GIGA LXC New Electrical Mill Roll Stand for Cardboard Making Line thumbnail-2
DongGuang XinHua Packing Machinery-GIGA LXC New Electrical Mill Roll Stand for Cardboard Making Line thumbnail-3
DongGuang XinHua Packing Machinery-GIGA LXC New Electrical Mill Roll Stand for Cardboard Making Line thumbnail-4
DongGuang XinHua Packing Machinery-GIGA LXC New Electrical Mill Roll Stand for Cardboard Making Line thumbnail-5
DongGuang XinHua Packing Machinery-GIGA LXC New Electrical Mill Roll Stand for Cardboard Making Line thumbnail-6
DongGuang XinHua Packing Machinery-GIGA LXC New Electrical Mill Roll Stand for Cardboard Making Line photo-1
DongGuang XinHua Packing Machinery-GIGA LXC New Electrical Mill Roll Stand for Cardboard Making Line photo-2
DongGuang XinHua Packing Machinery-GIGA LXC New Electrical Mill Roll Stand for Cardboard Making Line photo-3
DongGuang XinHua Packing Machinery-GIGA LXC New Electrical Mill Roll Stand for Cardboard Making Line photo-4
DongGuang XinHua Packing Machinery-GIGA LXC New Electrical Mill Roll Stand for Cardboard Making Line photo-5
DongGuang XinHua Packing Machinery-GIGA LXC New Electrical Mill Roll Stand for Cardboard Making Line photo-6
US$ 5,999 - 8,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Case, Film
Contact Supplier Request Quote Chat Now
Dongguang Xinhua Packing Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TIAN JIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, Machinery & Hardware
Packaging Type Case, Film
Packaging Material Plastic, Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 380V 50HZ
Power 2.2KW
Place of Origin Hebei, China
Brand Name XIN HUA
Model Number ZJ-Y
Dimension(L*W*H) 2200mm x 1700mm x 950mm
Weight 700kgs
Certification CE / ISO
After-sales Service Provided Engineers available to service machinery overseas



                                  Factory Homepage:  /en/


Product Description

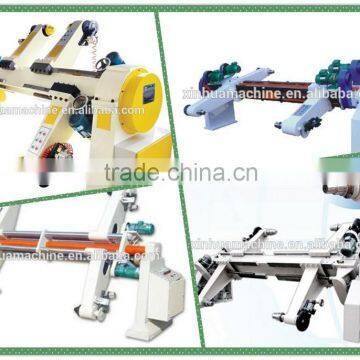

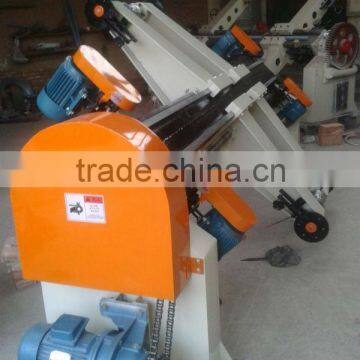

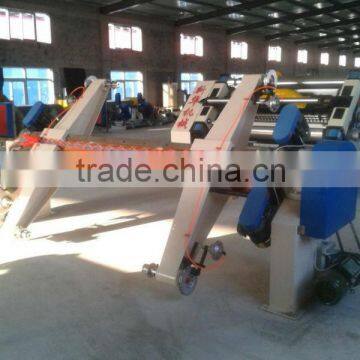

                      GIGA LXC New Electrical Mill Roll Stand for cardboard making line

DongGuang XinHua packing machinery-GIGA LXC New Electrical Mill Roll Stand for cardboard making line



structural features:

1.Mill roll on both arms can be bearing at the same time.It can realize changing the

  rolls non-stop working.

2.Reel paper clamp, lift-lower, loosen, centering, movement of left-right controlled by

   mechanical driving.

3.Brake adjustment use butterfly disc type pneumatic brake system

4.Equipped with twin-stage automatic expansion type chucking paper head, chucking paper

   head is 4 inch type.



technical parameter:

1.Movement type: Electric swing arm

2.Reel Paper range:

Max:1700mm, Min:900mm

3.Reel paper Diameter:

Max: Φ1500mm, Min: Φ350mm

4.Max. Bearing Of single side: 2000Kg

5.Air source working pressure(Mpa): 0.4-0.8Mpa

6.Working power: Voltage 380V, frequency 50Hz



DongGuang XinHua packing machinery-GIGA LXC New Electrical Mill Roll Stand for cardboard making lineDongGuang XinHua packing machinery-GIGA LXC New Electrical Mill Roll Stand for cardboard making lineDongGuang XinHua packing machinery-GIGA LXC New Electrical Mill Roll Stand for cardboard making lineDongGuang XinHua packing machinery-GIGA LXC New Electrical Mill Roll Stand for cardboard making line







You are warmly welcome to visit our manufacturing in China!!!

Company Information



Our Services

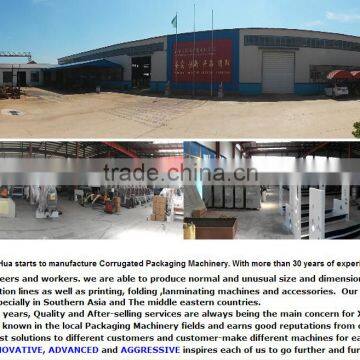

Factory Workshop
