PVC Insulated Copper Wire Braid Shielded Flexible Control Cable-KVVRP
Specifications:
1. Conductor: Copper;
2. Cores; 2-61 Cores;
3. Rated Voltage: 450/750;
4. Insulation and Jacket: PVC Insulation and PVC Jacket;
5. Shielding: Copper Wire Braid Shielding;
5. Related Namees: Shielded Control Cable, Flexible Control Cable, PVC Insulated Control Cable, Armored Control Cable, Fire Resistant Control Cable, Flame Retardant Control Cable
1. Applications:
Control cables( Flame Retardant Control Cables) are used in the site of control circuit, monitoring circuit and protective lines that have A.C rated voltage of 600/1000 V and below.
2. Manufacturing Standards:
The ( Flame Retardant) control cable comply well with IEC 60227, IEC60502, IEC 60332-3, IEC 60754-1 and IEC 61034 etc.
3. Operating Features:
•The maximum allowable temperature of conductor is 90 0C for XLPE cable or 700C for PVC cable at normal operation.
•The temperature not less than 0 0C when cables laid.
•Installation bending radius of cable: 6D for no-armor or with screen layer flexible cable.
12D for armor or copper tape screen cables.
(D=overall diameter of cable)

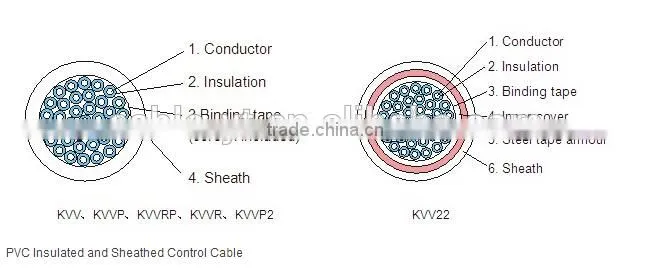

4. Construction for General Types of Control Cable:
Pls not Flame Retardant and Fire Resistant Layer can all be added as per customer's requirement.
5. Types, Description and Size:
Type |
Description |
Rated Voltage |
Conductor Size |
|
KVV (ZR/NH-KVV) |
PVC insulated PVC sheathed (flame retardant or fire resistance) control cable |
450/750V |
2~61 cores 0.75~10mm2 |
|
KVVP (ZR/NH-KVVP) |
PVC insulated PVC sheathed copper wire braid shielded (flame retardant or fire resistance) control cable |
||
|
KVVP2 (ZR/NH-KVVP2) |
PVC insulated PVC sheathed copper tape shielded (flame retardant or fire resistance) control cable |
||
|
KVV22 (ZR/NH-KVV22) |
PVC insulated PVC sheathed steel tape armored (flame retardant or fire resistance) control cable |
||
|
KVV32 (ZR-KVV32) |
PVC insulated PVC sheathed steel wire armored (flame retardant) control cable |
||
|
KVVR (ZR-KVVR) |
PVC insulated PVC sheathed (flame retardant) flexible control cable |
||
|
KVVRP (ZR-KVVRP) |
PVC insulated PVC sheathed copper wire braid shielded (flame retardant) flexible control cable |
||
|
KYJV (ZR/NH-KYJV) |
XLPE insulated PVC sheathed (flame retardant or fire resistance) control cable |
0.6/1kV |
2~61 cores 0.75~10mm2 |
|
KYJVP (ZR/NH-KYJVP) |
XLPE insulated PVC sheathed copper wire braid shielded (flame retardant or fire resistance) screen control cable |
||
|
KYJVP2 (ZR/NH-KYJVP2) |
XLPE insulated PVC sheathed copper tape shielded (flame retardant or fire resistance) control cable |
||
|
KYJV22 (ZR/NH-KYJV22) |
XLPE insulated PVC sheathed steel tape armored (flame retardant or fire resistance) control cable |
||
ZR-KYJS-C |
XLPE insulated LSHF sheathed flame retardant control cable |
0.6/1kV |
2~61 cores 0.75~10mm2 |
ZR-KYJSP-C |
XLPE insulated LSHF sheathed copper wire braid shielded flame retardant control cable |
||
ZR-KYJS P2-C |
XLPE insulated LSHF sheathed copper tape shielded flame retardant control cable |
||
ZR-KYJSP3-C |
XLPE insulated LSHF sheathed aluminum tape shielded flame retardant control cable |
||
ZR-KYJS22-C |
XLPE insulated LSHF sheathed steel tape armored flame retardant control cable |
||
ZR-KYJSR-C |
XLPE insulated LSHF sheathed flame retardant flexible control cable |
||
ZR-KYJSRP-C |
XLPE insulated LSHF sheathed copper wire braid shielded flame retardant flexible control cable |
