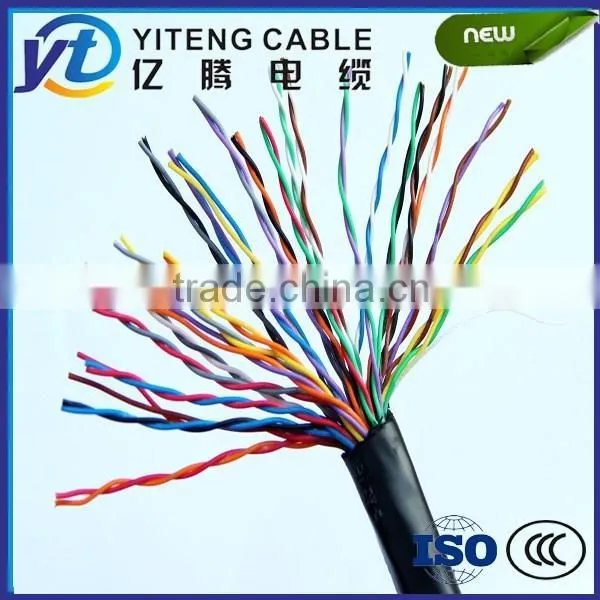

PVC insulated and sheathed multicore computer power cable
Computer Cable DJYVP 2*2*1.0

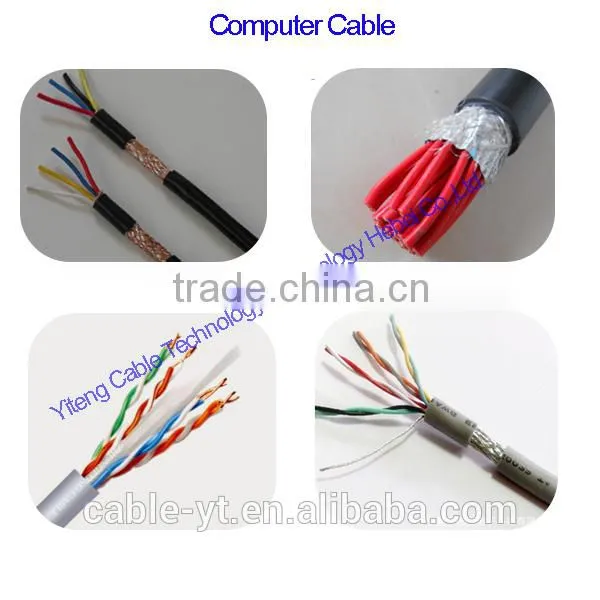

Computer Cable Application
PE Insulated , PVC sheathed instrument cable is used in electronic computer system, monitoring circuit, automatic control system of signal transmission and detection instrument connections.

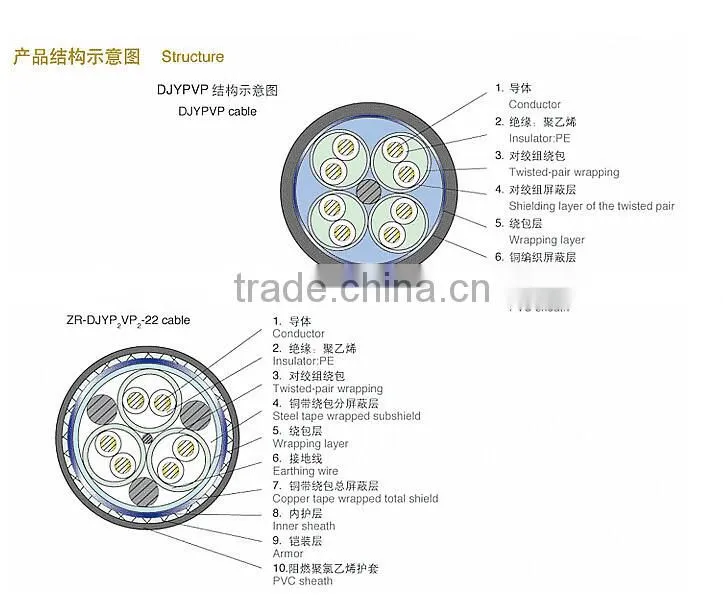

Construction
Conductor Material : Bare Copper
Constitude Structure:1/1.13+/-0.011m
Strand OD:1.13mm
Insulation Material :PE
Insulation Mean Thickness:0.63mm
Insulation The Thinnest Point:0.47mm
Insulation OD: 2.4+/-0.1MM
Insulation Color:(Blue, white) ( Red, Blue)
Shielding( Braiding Lay)
Overall: Bare copper braided shielding: above 80%.
Jacket Material: PVC
Jacket Colour: Black.
Jacket mean Thickness :1.1mm
Jacket the thinnest Point:0.84mm
Finish approxomate Diameter: 10.3+/-0.5mm
Max. Conductor DC Resistance at 20C (om/km):19.5.
Rated Voltage: 300/500V.
Min Bending Radius: Fixed Installtaion:6*D
Mobile Installation:15*D
Rated Temperature: -30C-+90C.
Model and Data
TYPE |
PAIRS |
SPEC. |
Cond. No. |
Cond. Dia.φ |
weight /KM |
external Dia. mm |
|
DJYVP |
1pairs |
0.75*2C |
1 |
0.98 |
58 |
7.1 |
|
DJYVP |
2pairs |
0.75*2C |
1 |
0.98 |
103 |
10.3 |
|
DJYVP |
3pairs |
0.75*2C |
1 |
0.98 |
131 |
10.9 |
|
DJYVP |
4pairs |
0.75*2C |
1 |
0.98 |
162 |
11.9 |
|
DJYVP |
5pairs |
0.75*2C |
1 |
0.98 |
194 |
13.1 |
|
DJYVP |
6pairs |
0.75*2C |
1 |
0.98 |
226 |
14.3 |
|
DJYVP |
7pairs |
0.75*2C |
1 |
0.98 |
249 |
14.3 |
|
DJYVP |
8pairs |
0.75*2C |
1 |
0.98 |
282 |
15.5 |
|
DJYVP |
9pairs |
0.75*2C |
1 |
0.98 |
319 |
17 |
|
DJYVP |
10pairs |
0.75*2C |
1 |
0.98 |
352 |
18.2 |
|
DJYVP |
11pairs |
0.75*2C |
1 |
0.98 |
381 |
18.8 |
|
DJYVP |
12pairs |
0.75*2C |
1 |
0.98 |
404 |
18.8 |
|
DJYVP |
13pairs |
0.75*2C |
1 |
0.98 |
436 |
19.8 |
|
DJYVP |
14pairs |
0.75*2C |
1 |
0.98 |
459 |
19.8 |
|
DJYVP |
15pairs |
0.75*2C |
1 |
0.98 |
493 |
21 |
|
DJYVP |
16pairs |
0.75*2C |
1 |
0.98 |
516 |
21 |
|
DJYVP |
1pairs |
1.0*2C |
1 |
1.13 |
66 |
7.4 |
|
DJYVP |
2pairs |
1.0*2C |
1 |
1.13 |
119 |
10.9 |
|
DJYVP |
3pairs |
1.0*2C |
1 |
1.13 |
153 |
11.5 |
|
DJYVP |
4pairs |
1.0*2C |
1 |
1.13 |
189 |
12.6 |
|
DJYVP |
5pairs |
1.0*2C |
1 |
1.13 |
228 |
13.8 |
|
DJYVP |
6pairs |
1.0*2C |
1 |
1.13 |
266 |
15.1 |
|
DJYVP |
7pairs |
1.0*2C |
1 |
1.13 |
295 |
15.1 |
|
DJYVP |
8pairs |
1.0*2C |
1 |
1.13 |
334 |
16.4 |
|
DJYVP |
9pairs |
1.0*2C |
1 |
1.13 |
378 |
18 |
|
DJYVP |
10pairs |
1.0*2C |
1 |
1.13 |
418 |
19.3 |
|
DJYVP |
11pairs |
1.0*2C |
1 |
1.13 |
452 |
19.9 |
|
DJYVP |
12pairs |
1.0*2C |
1 |
1.13 |
481 |
19.9 |
|
DJYVP |
13pairs |
1.0*2C |
1 |
1.13 |
520 |
21 |
|
DJYVP |
14pairs |
1.0*2C |
1 |
1.13 |
549 |
21 |
|
DJYVP |
15pairs |
1.0*2C |
1 |
1.13 |
589 |
22.2 |
|
DJYVP |
16pairs |
1.0*2C |
1 |
1.13 |
618 |
22.2 |
|
DJYVP |
1pairs |
1.5*2C |
1 |
1.38 |
85 |
8.3 |
|
DJYVP |
2pairs |
1.5*2C |
1 |
1.38 |
157 |
12.5 |
|
DJYVP |
3pairs |
1.5*2C |
1 |
1.38 |
204 |
13.3 |
|
DJYVP |
4pairs |
1.5*2C |
1 |
1.38 |
256 |
14.6 |
|
DJYVP |
5pairs |
1.5*2C |
1 |
1.38 |
310 |
16 |
|
DJYVP |
6pairs |
1.5*2C |
1 |
1.38 |
364 |
17.5 |
|
DJYVP |
7pairs |
1.5*2C |
1 |
1.38 |
406 |
17.5 |
|
DJYVP |
8pairs |
1.5*2C |
1 |
1.38 |
461 |
19 |
|
DJYVP |
9pairs |
1.5*2C |
1 |
1.38 |
521 |
21 |
|
DJYVP |
10pairs |
1.5*2C |
1 |
1.38 |
577 |
22.5 |
|
DJYVP |
11pairs |
1.5*2C |
1 |
1.38 |
627 |
23.3 |
|
DJYVP |
12pairs |
1.5*2C |
1 |
1.38 |
668 |
23.3 |
|
DJYVP |
13pairs |
1.5*2C |
1 |
1.38 |
723 |
24.6 |
|
DJYVP |
14pairs |
1.5*2C |
1 |
1.38 |
765 |
24.6 |
|
DJYVP |
15pairs |
1.5*2C |
1 |
1.38 |
822 |
26 |
|
DJYVP |
16pairs |
1.5*2C |
1 |
1.38 |
863 |
26 |
Specification List
Specification |
Line core logarithmic |
Nominal cross section |
|
DJYPV DJYVP DJYPVP DJYP2V DJYVP2 DJYP2VP2
|
1-40 |
0.5 0.75 1.0 1.5 2.5 |
|
DJYPV22 DJYVP22 DJYPVP22 DJYP2V22 DJYVP2-22 DJYP2VP2-22 DJYP3V22 DJYVP3-22 DJYP3VP3-22 |
2-40 |
Yiteng Cable Technology Hebei Co., Ltd.
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, Hebei,Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
Our Services
1. We guarantee to offer new advanced goods.
2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction, installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing,if there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.
3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.
4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.
Notice:we can produce the product according to customer's requirment.Short delivery time and quotation at once.
