Plastic Insulated Control Cable

Plastic Insulated Control Cable photo-1

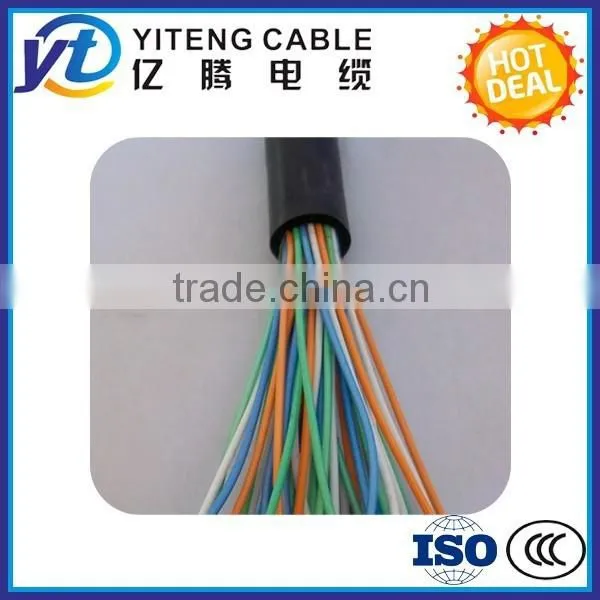

Plastic Insulated Control Cable photo-2

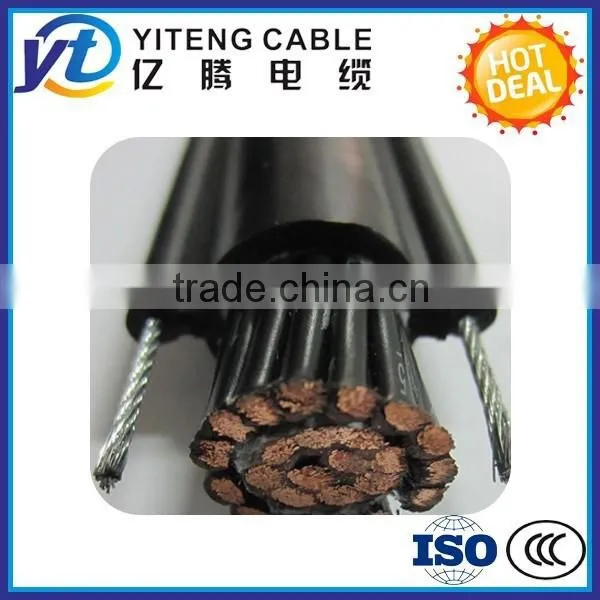

Plastic Insulated Control Cable photo-3
Plastic Insulated Control Cable photo-4
Plastic Insulated Control Cable photo-5

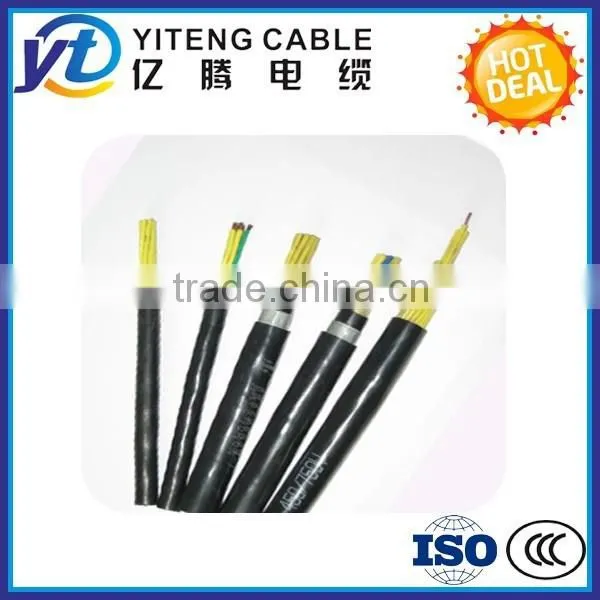

Plastic Insulated Control Cable photo-6
US$ 1 - 20 MOQ: 500 Miles
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
YITENG
Model Number:
KVV/KVVP/KVVP2/KVV22/KVVR/KVVRP
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN SHANGHAI QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name YITENG
Model Number KVV/KVVP/KVVP2/KVV22/KVVR/KVVRP
Insulation Material XLPE
Type Low Voltage
Application Industrial
Conductor Material Copper
Jacket PE

Plastic Insulated Control Cable





Application

The PVC insulated and sheathed control cable is suitable for used in occasion of control, monitoring loop and protection line with A.C rated voltage up to 450/750V.





Type and Designation

Type

Designation

Standard

KVV

Copper core PVC insulated PVC sheathed control cable

GB9330

KVVP

Copper core PVC insulated PVC braiding screen sheathed control cable

KVVP2

Copper core PVC insulated PVC copper strip screened sheathed control cable

KVV22

Copper core PVC insulated steel tape armoured PVC sheathed control cable

KVV32

Copper core PVC insulated fine steel tape armoured PVC sheathed control cable

KVVR

Copper core PVC insulated PVC sheathed flexible control cable

KVVRP

Copper core PVC insulated braiding shielded PVC sheathed flexible control cable



Specification

Type

Rated voltage

V

Nominal cross-section of conductor

mm2

0.5

0.75

1.0

1.5

2.5

4

6

10

Number of core

KVV

KVVP

450/750

2~61

2~14

2~10

KVVP2

4~61

4~14

4~10

KVV22

7~61

4~61

4~14

4~10

KVV32

19~61

7~61

4~14

4~10

KVVR

4~61

KVVRP

4~61

4~48

Note: The core count series recommended are: 2,3,4,5,7,8,10,12,14,16,19,24,27,30,44,48,52 and 61 cores.





Product Feature

1, This product has a good resistance of mildew and water.

2, The outer sheath of this product has a good performance of mechanism and abrading.

3, The type of “R” product is very soft so that it can be moved frequency. Plastic Insulated Control Cable

 Plastic Insulated Control Cable



YITENG Company



Yiteng Cable Technology Hebei Co., Ltd
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250



Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);

Aerial Bundled Cable (ABC Cable);

Power cable,Electrical wire cable,

Armored cables,

Control cables,

Rubber insulated cables, PVC insulated wires and cables,

Battery cables,Instrument cables, Coaxial cables,Flat cables,

Welding cables,House wire,Special Cables etc.



Our Test Instrument

  Plastic Insulated Control Cable

FAQ:



1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.

2. Q: Where is your factory located? How can I visit there?

A:Our factory is located in Ningjin City, Hebei  Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us

3. Q: What is your sample policy?

A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.

4.Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.

5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?

A: We can select some popular products for you immediately.  Please let us know your requirements so that we can send out the quotation to you.
