Rvvp Flexible Shielded Electrical Cables
- 5000 Meter / Meters per Month
- TIANJIN SHANGHAI QINGDAO
- T/T Credit Card PayPal
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Hebei, China | Brand Name: | YITENG | Model Number: | KVV/KVVP/KVVP2/KVV22/KVVR/KVVRP |
Insulation Material: | XLPE | Type: | Low Voltage | Application: | Industrial |
Conductor Material: | Copper | Jacket: | PVC |
Product Description
Rvvsp Flexible Shielded Electrical Cables
Application: General purpose indoor and outdoor, electrical tools, washing machines, and vacuum cleaners etc.

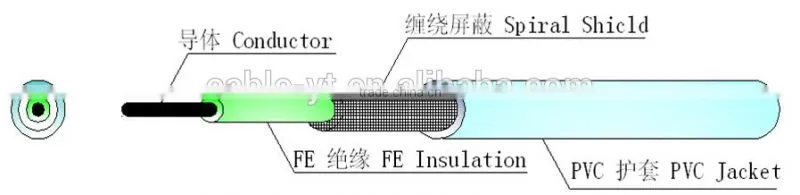

Construction: Flexible annealed copper conductor PVC insulated and PVC sheathed.
Voltage: 300/500V
Core Color: Blue, brown, yellow, red, black
Sheath Color: Black, white, orange, grey
Model and Data
Type | Pair | Size | Conductor | Weight KG/KM | O.D Down(mm) | O.D.Up(mm) | |
RVVSP | 2 | 0.75*2C | 49 | 0.14 | 109.3 | 9.0 | 9.8 |
RVVSP | 3 | 0.75*2C | 49 | 0.14 | 139.9 | 10.5 | 11.3 |
RVVSP | 4 | 0.75*2C | 49 | 0.14 | 175.2 | 11.6 | 12.4 |
RVVSP | 5 | 0.75*2C | 49 | 0.14 | 213.2 | 12.8 | 13.6 |
RVVSP | 6 | 0.75*2C | 49 | 0.14 | 252.2 | 14.1 | 14.9 |
RVVSP | 7 | 0.75*2C | 49 | 0.14 | 276.6 | 14.1 | 14.9 |
RVVSP | 8 | 0.75*2C | 49 | 0.14 | 316.5 | 15.2 | 16.4 |
RVVSP | 9 | 0.75*2C | 49 | 0.14 | 363.2 | 16.9 | 18.1 |
RVVSP | 10 | 0.75*2C | 49 | 0.14 | 405.4 | 18.1 | 19.3 |
RVVSP | 11 | 0.75*2C | 49 | 0.14 | 439.3 | 18.8 | 20 |
RVVSP | 12 | 0.75*2C | 49 | 0.14 | 463.8 | 18.8 | 20 |
RVVSP | 13 | 0.75*2C | 49 | 0.14 | 504.8 | 19.9 | 21.1 |
RVVSP | 14 | 0.75*2C | 49 | 0.14 | 529.3 | 19.9 | 21.1 |
RVVSP | 15 | 0.75*2C | 49 | 0.14 | 572.9 | 21.1 | 22.7 |
RVVSP | 16 | 0.75*2C | 49 | 0.14 | 597.3 | 21.1 | 22.7 |
RVVSP | 17 | 0.75*2C | 49 | 0.14 | 642.8 | 22.4 | 24 |
RVVSP | 18 | 0.75*2C | 49 | 0.14 | 667.2 | 22.4 | 24 |
RVVSP | 19 | 0.75*2C | 49 | 0.14 | 702.8 | 23 | 24.6 |
RVVSP | 20 | 0.75*2C | 49 | 0.14 | 738.1 | 23.7 | 25.3 |
YITENG COMPANY
Yiteng Cable Technology Hebei Co., Ltd
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, HebeiProvince, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
