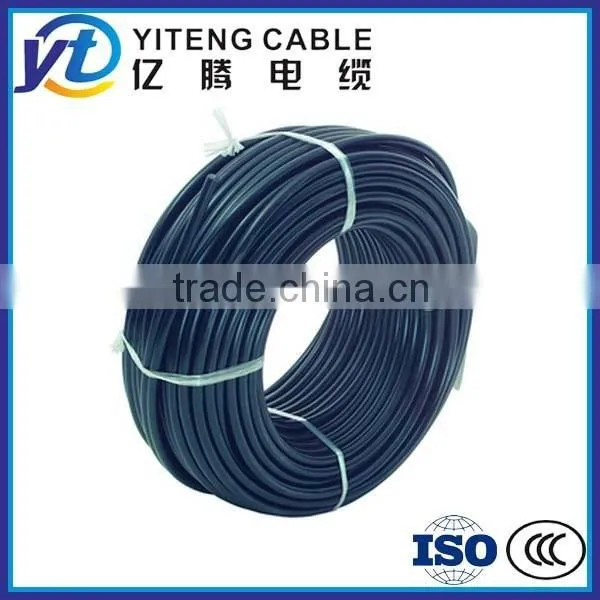

4 Core Rubber Flexible Cable, 6 core flexible cable
Advantage
ISO9001
Factory
OEM
SGS
Specification Size and Technical Data
Model |
Name |
Rated Voltage(V) |
Section Area(mm2) |
No. of Cores |
Usage |
YQ,YQW |
Light model rubber sheath flexible cable |
300/500 |
0.30.5 |
2,3 |
Used for light portable electric equipment and tools |
IEC60245-53YZ |
Middle model rubber sheath flexible cable |
300/500 |
0.75--6 |
2,3,4,5 |
Used for various portable electric equipment and tools |
IEC60245-57YZW | |||||
YC |
Heavy model rubber sheath flexible cable |
450/750 |
1.5--400 |
1 |
Used for various portable electric equipment which can bear large mechanical force effect |
1.5--95 |
2 |
||||
1.5--150 |
3 |
||||
IEC60245-66YCW |
1.5--150 |
4 |
|||
|
2.5150 + 1.5--50 |
3+1 |
||||
1.5--25 |
5 |
Cable experiment voltage and experiment time
|
300/300 |
300/500 |
450/750 |
AC Experiment voltage (V) |
2000 |
2000 |
2500 |
Experiment time (min) |
5 |
5 |
5 |
Using
The middle duty rubber cable is applied to the power connecting cable of electrical equipment and small electric tools
The heavy duty rubber cable is applied to high power electric, mechanical equipment and power cable of mine’s owner. It can work in bad outdoor environment and also be applied to fixed installation and the mechanical equipment installed on the mobile rised device
Performance
1) YZ model rated voltage Uo/U is 300/500V, YC model is 450/750V
2) Long time allow working temperature of wire core is not more than 650C
3) W model cable has the property of durability and suitable for outdoor touching of greasy dirt
4) ZR model cable has the property of fire-resistance
We can product other product and accept OEM .If you have any question or requirement ,contact me .
Skye: betty15612
Mail:betty(at)
Other product:
Power cable
Rubber cable
Control cable
Shided cable
Mining cable
......
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your inquires in fluent English.
3. Distributorship are offered for your unique design and some our current models.
4. OEM/ODM any your customized points, we can help you to design and put into product.
5. Protection of your sales area, ideas of design and all your private information.
Hebei Yiteng Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,and domestic & international trade.Our main products consist of power cables, bare conductors, aerial bundled cables, control cables, welding cables, rubber cables, special cables and electrical wires. Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. .
