Laying Armoured control Cable Underground With Area 10mm2 Low Voltage
Fixed laying pvc 450/750v copper control cable
1) PVC Insulated PVC Sheathed Control Cables (GB9330-88)
2) Purpose: For controlling and monitoring loops and protective lines of AC rated voltage U0/U
450/750V and under 450/750V.
3) The laying temperature of cable shall not be lower than 0℃.
4) For non-armored cable, ≥ 6 times of outer diameter of cable.
5) For armored or copper tape shielded cable, ≥ 12 times of outer diameter of cable.
6) For shielded flexible cable, ≥ 6 times of outer diameter of cable.

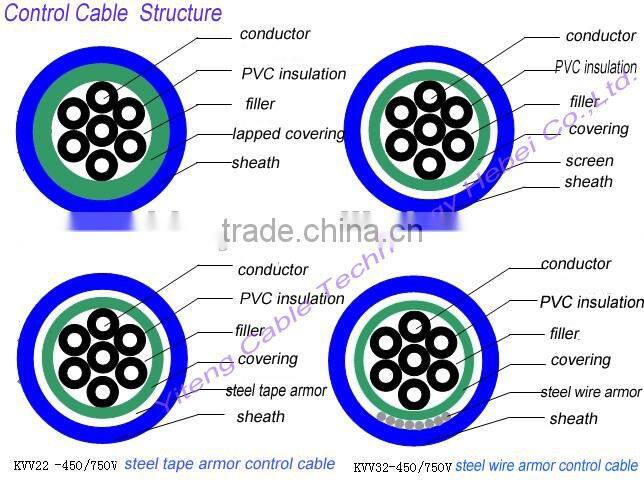

Type and Data
Type |
Name |
Application |
KVV |
Copper-core PVC insulated PVC sheathed control cable |
Laid in fixed positions such as indoor, in |
KVVP |
Copper-core PVC insulated PVC sheathed braid shielded |
|
KVVP2 |
Copper-core PVC insulated PVC sheathed copper-tape |
|
KVV22 |
Copper-core PVC insulated PVC sheathed steel-tape |
Laid in fixed positions able to bear large |
KVVP2-22 |
Copper-core PVC insulated PVC sheathed copper-tape |
|
KVVR |
Copper-core PVC insulated PVC sheathed flexible |
Laid indoor where movement is requiring flexible cables |
KVVRP |
Copper-core PVC insulated PVC sheathed braid shielded |
Laid indoor where movement is requiring |
KVV32 |
Copper-core PVC insulated PVC sheathed fine steel wire |
Laid in fixed positions able to bear large mechanical force such as indoor, in cablechannel and pipe, and underground etc
|
Notes
1)sectional area:0.75-10mm
2)core number:2-61 core.
3)Our company also produces XLPE series such as KYJV, KYJVP, KYJVR and KYJV22,etc.
4) We can provide corresponding flame-retardant and fire-resistant products for all the above
products upon user’s requirements.
The length of single cable delivered shall not be less than 100m. According to the agreement
reached between two parties, it is allowed to deliver the cables of any length.
Yiteng Cable Technology Hebei Co., Ltd
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
