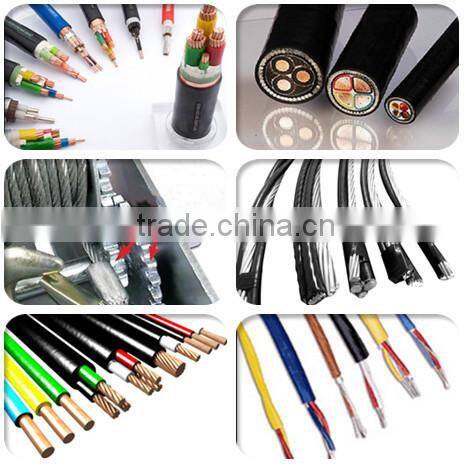

PVC insulated cable, PVC insulation cable , PVC sheath cable
Advantages
ISO9001
Factory
OEM
SGS
1. Material: Cooper, Aluminum
2. Rated voltage: low and medium voltage
3. Wire identification: Red, yellow, blue, white, black
4. No. Of cores : Single core cable: from 1.5 mm2 to 800 mm2; Multi-core cable: from 1.5 mm2 to 400 mm2
5. Standard: Low voltage: IEC60502-1 Medium voltage :IEC60502-2 or other requirement.
6. Insulation: PVC, XLPE, PE
7. Application: Suitable for indoor, channel, conduit,underground,vertical well etc.
8. Nominal cross section area: from 1.5 mm2 to 800 mm2.
Rated Voltage,Core Numbers & Nominal Cross-section Area as following Table 1-1
|
1st class |
0.6/1 |
1.8/3 |
3.6/6 |
6/10 |
8.7/15 |
12/20 |
18/30 |
21/35 |
|||
2nd class |
1/1 |
3/3 |
6/6 |
8.7/10 |
12/15 |
18/20 |
- |
26/35 |
||||
1 Core |
Section area(mm2) |
1.5-800 |
25-800 |
25-800 |
25-800 |
35-800 |
50-800 |
50-800 |
50-800 |
|||
2 Core |
Section Area(mm2) |
1.5-185 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|||
3 Core |
Section area(mm2) |
1.5-400 |
25-400 |
25-400 |
25-400 |
35-400 |
50-400 |
50-400 |
50-400 |
|||
4 Core |
Section Area(mm2) |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
|||
5 Core |
Section area(mm2) |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
Description & Application Occasion of cable
Type |
Description |
Application |
|
VV |
VLV |
PVC insulated PVC sheathed power cable |
To be laid at indoor, tunnel and tube . Cable cannot under take mechanism outside force |
VY |
VLY |
PVC insulated and PE sheathed power cable |
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force |
VV22 |
VLV22 |
PVC insulated steel belt armored and PVC sheathed power cable |
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force |
VV23 |
VLV23 |
PVC insulated steel belt armored and PE sheathed power cable |
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force |
VV32 |
VLV32 |
PVC insulated fine steel wire armored PVC sheathed power cable |
Can be laid at indoor, underground and mining well . Cable can undertake mechanism outside force |
VV33 |
VLV33 |
PVC insulated fine steel wire armored PE sheathed power cable |
Can be laid at indoor, underground . Cable can under take mechanism outside force |
VV42 |
VLV42 |
PVC insulated thick steel wire armored PE sheathed power cable |
Can be laid at indoor, underground,mining well . Cable can under take mechanism outside force |
VV43 |
VLV43 |
PVC insulated fine steel wire armored PVC sheathed power cable |
Can be laid at indoor, underground , mining well and the places |
We can product other product and accept OEM .If you have any question or requirement ,contact me .
Other product:
Power cable (Low voltage,medium voltage,high voltage)
Rubber cable
Control cable
Shielded cable
Mining cable
Special cable
